Exfo FTB-1V2-Pro PM-1v2-2X-VFL FTBx-8880 FTBx 88260 Multiservice Test Modules

On Sale Exfo FTB-1V2-Pro PM-1v2-2X-VFL FTBx-8880 FTBx 88260 Multiservice Test Modules Only US$9.900.00.

Product Features:

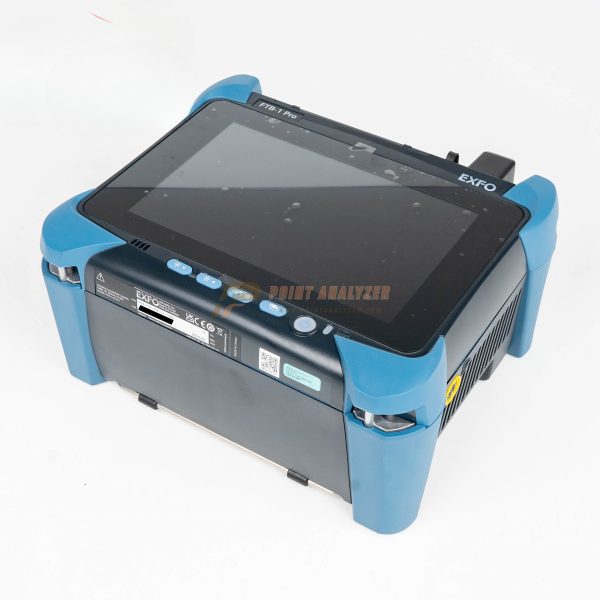

The FTB-1 Pro model is a light-weight compact test platform allowing field technicians to carry out dedicated optical, Ethernet, multiservice and radio frequency (RF) interference test applications simply and efficiently, thanks to its ultra-powerful processing and highly intuitive interface

Compact modular measurement platform EXFO FTB-1 Pro is an all-in-one solution for exhaustive testing of all types of data networks with speeds up to 111.81 Gbps. One measuring module (single or double thickness) can be mounted on the platform. The module type determines the measurement capabilities of the platform.

Platform Options:
RF

Module Options:
FTBx-8880 Options:
52M
NI-CSU
PDH
SDH
SONET

FTBx-88260 Options:
100electrical
100GE
100optical
10electrical
10G_LAN
10G_WAN
155M
2488M
52M
622M
9953M
DSn
EoE_40-100GE
ETH-OAM
GigE_Electrical
GigE_Optical
iOptics
iSAM
L2-Transparency
LNIK-OAM
LTEAnalyzer
MPLS
OTU1
OTU2
OTU2-1e-2e
OTU2-1f-2f
OTU3
OTU3-e1-e2
OTU4
PBBTE
PBBTE_40-100GE
PDH
RFC6349
RFC6349_40-100GE
SDH
SONET
TCM
TST-OAM

Highlights:
Connects anywhere: USB, mobile, WiFi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, plus any third-party applications
Like a PC: available with dual- or quad-core processor and Windows operating system
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Single- or dual-carrier configuration available to slot compatible FTBx test modules.
High-power two-slot carrier configuration enabling simultaneous 100G quad port testing

Applications
Fiber characterization
FTTH testing
Access fiber networks
Multiservice testing up to 10 Gbit/s
Gigabit/10 Gigabit Ethernet configurations
Wireless fronthaul and backhaul testing
RF spectrum analysis over CPRI

Exfo FTBx-8870/8880
From development in the lab to troubleshooting in the field, EXFO’s FTBx-8870/8880 Power Blazer features a full suite of test capabilities with a range of technologies up to 10G.

Highlights:
Ethernet testing including 10 GigE dual port,OTN, RFC 6349 and EXFO’s iSAM
SONET/SDH, DSn/PDH, ISDN PRI, FTTA, Fibre Channel and packet synchronization
5G support CPRI/eCPRI
Fast, intelligent transceiver validation with iOptics

FTBx-88260 1G to 100G Network Tester
Whether motivated by cost, power requirements, space or increased demand for bandwidth, pluggable transceivers are evolving rapidly. Predicting how long an existing transceiver will be required before another comes along to take its place is tough—making the obsolescence of today’s hardware simply a waiting game.

Another challenge is that network operators and data centers still need to support existing technologies, but also be ready to address new rates and technologies without always doing forklift upgrades. Whether we consider SFP and SFP+ (for rates up to 10G) or QSFP28 and CFP4 (for 100G) or SFP28 (for 25G rates), it’s clear that integrating all these into a network—as well as testing and validating them—is a huge task. The smart move is to allocate budget for versatile—not limited—solutions.

Highlights:
With EXFO’s Open Transceiver System (OTS): innovative, evolutionary design enabling any transceiver (now or future) to fit into an EXFO test solution
iOptics test application that quickly validates the sanity of an optical device using minimal configuration
Compatible with FTB-4 Pro Platform capable of running up to four modules simultaneously for up to eight ports of 25 GigE
OTS support for multiple interfaces: dual SFP28, dual QSFP28, single CFP4
Compatible with EXFO’s LTB-8 Rackmount Platform featuring hot-swap capability for lab use
Combine with FTBx-88200NGE module for 10M to 100G in a single testing solution
Dual-port Ethernet testing capability up to 50GE including a complete Ethernet test suite
Compatible with FTB-2 Pro Platform capable of running up to two modules simultaneously for up to four ports of 25 GigE
Supported by EXFO Multilink, a web-based application for easy multi-user management and remote access

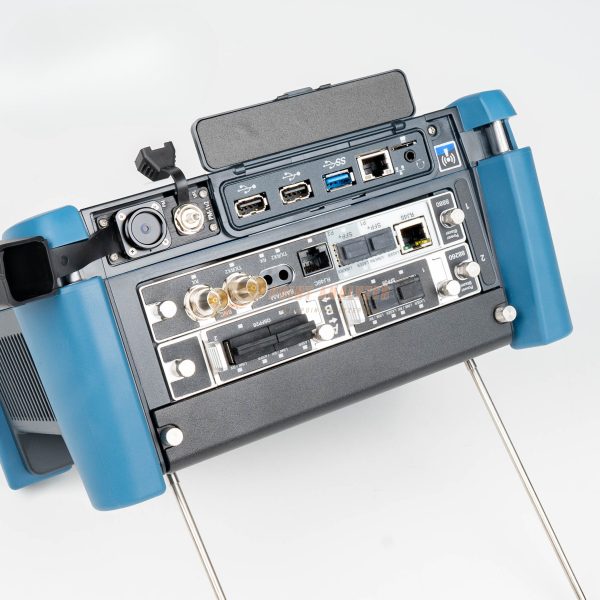

Specifications FTB-1 Pro:
Mainframe: Quad-core processor / 8 GB RAM
Operating System: Windows 10 IoT Enterprise LTSC 2021
Display: Touchscreen, color, 1280 × 800 TFT, 203 mm (8 in)

Interfaces:
RJ45 LAN 10/100/1000 Mbit/s
USB 2.0 ports (2)
USB 3.0 port (1)
Micro SD
