Product Features:
The FTBx-940/945 Fiber Certifier OLTS has been specifically designed for characterizing high volumes of data center fiber links. Technicians need to work as fast and as accurately as possible to keep expenses down and optimize certification time. An intuitive Windows-like user interface, icon-based functions as well as onboard assistance ensure that learning curves are minimized and measurements quickly recorded.
Applications
Data centers
Enterprise structured cabling
Highlights:
Certify two fibers at two wavelengths in less than 3 seconds with FasTesT™
On-board assistant and diagnosis to reduce the risk of reference errors and negative loss
Built-in Encircled-Flux compliancy as per ANSI/TIA and ISO/IEC
100% automated fiber inspection: one-step process with pass/fail analysis at both ends
Certifies to multiple industry standards simultaneously
On-board professional PDF reporting
Optional Optical Return Loss measure (FTBx-945)
Batch processing of results with FastReporter 2 software
Best-in-class singlemode distance range of 200 km
EXFO Connect ready
Specifications
Power Meter Specifications:
Input connector: Interchangeable adapter (LC, SC or FC)
Detector type: InGaAs
Uncertainty: ±(5 % + 32 pW)
Measurement range (dBm): 5 to –75
Calibrated wavelengths (nm): 850, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1383, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650
Tone detection (Hz): 270/330/1000/2000
Fastest Loss/Length Specifications:
Testing speed: FasTesT™ Duplex: 3 seconds (two wavelengths, one direction, automated, IL + fiber length) FasTesT™ Simplex: 5 seconds (two wavelengths, bidirectional, automated, IL + ORL + fiber length)
Input/Output connectors: Interchangeable adapter (LC, SC or FC)
Wavelengths (nm): MM (LED) 850 ± 20 1300 ± 20
Launch condition: EF compliancy guaranteed at multimode source port Within TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 Encircled Flux template limits at the end of an EXFO reference-grade 50/125 µm test cord
Length measurement range (km): Multimode: 20 Singlemode: 200
Length measurement uncertainty: ±(0.5 m + 0.5 % x length)
ORL measurement range (dB): 50
ORL measurement uncertainty (dB): ± 1
Package Includes

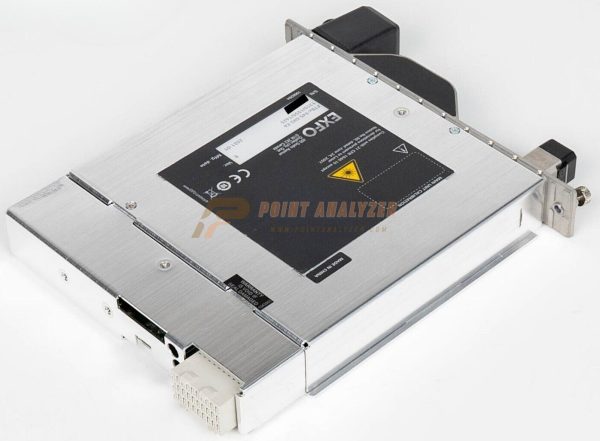

Exfo FTBx-945-SM3-EA OLTS
