Keysight N9928A FieldFox Microwave Vector Network Analyzer 26.5 GHz VNA

Product Description

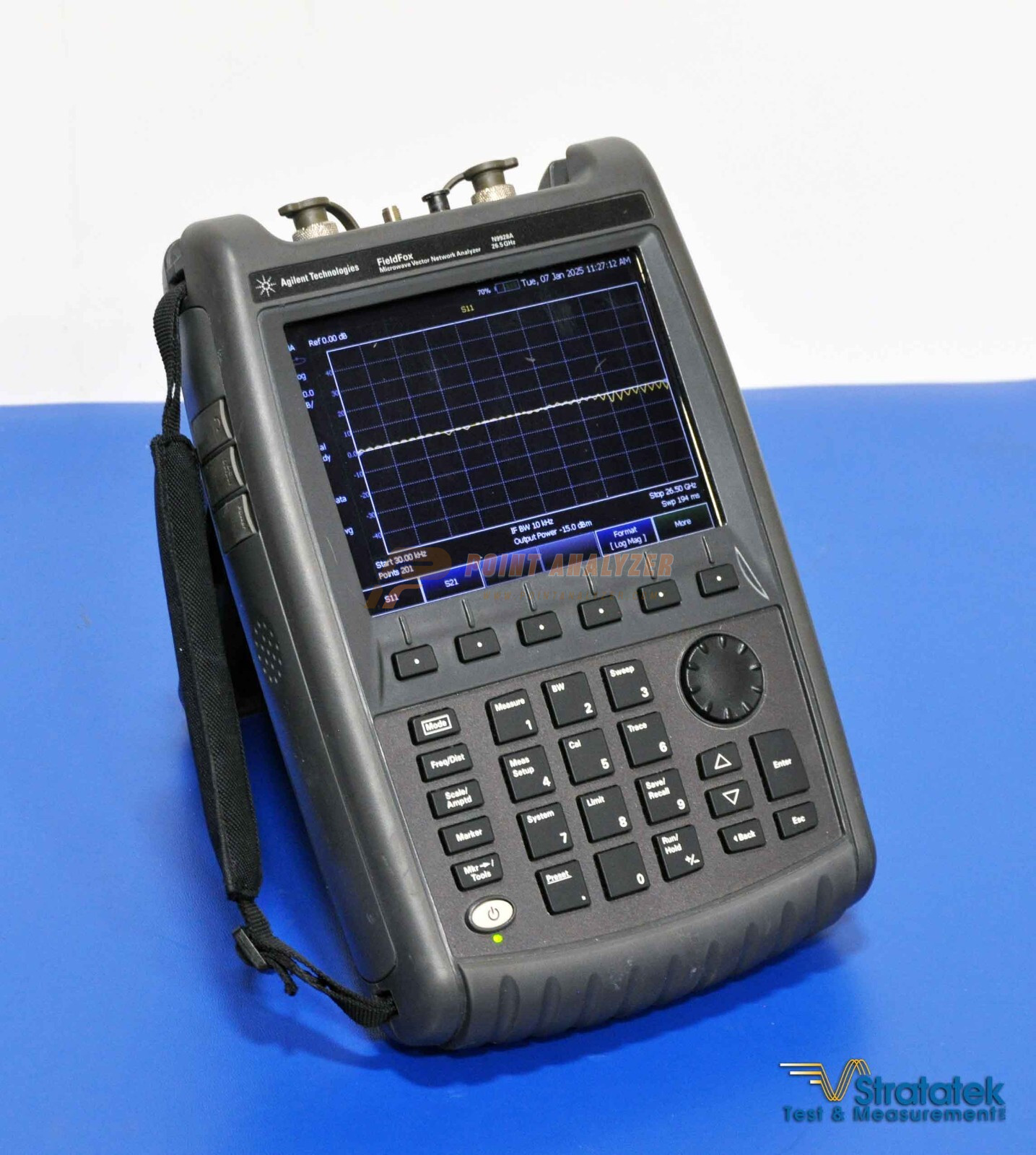

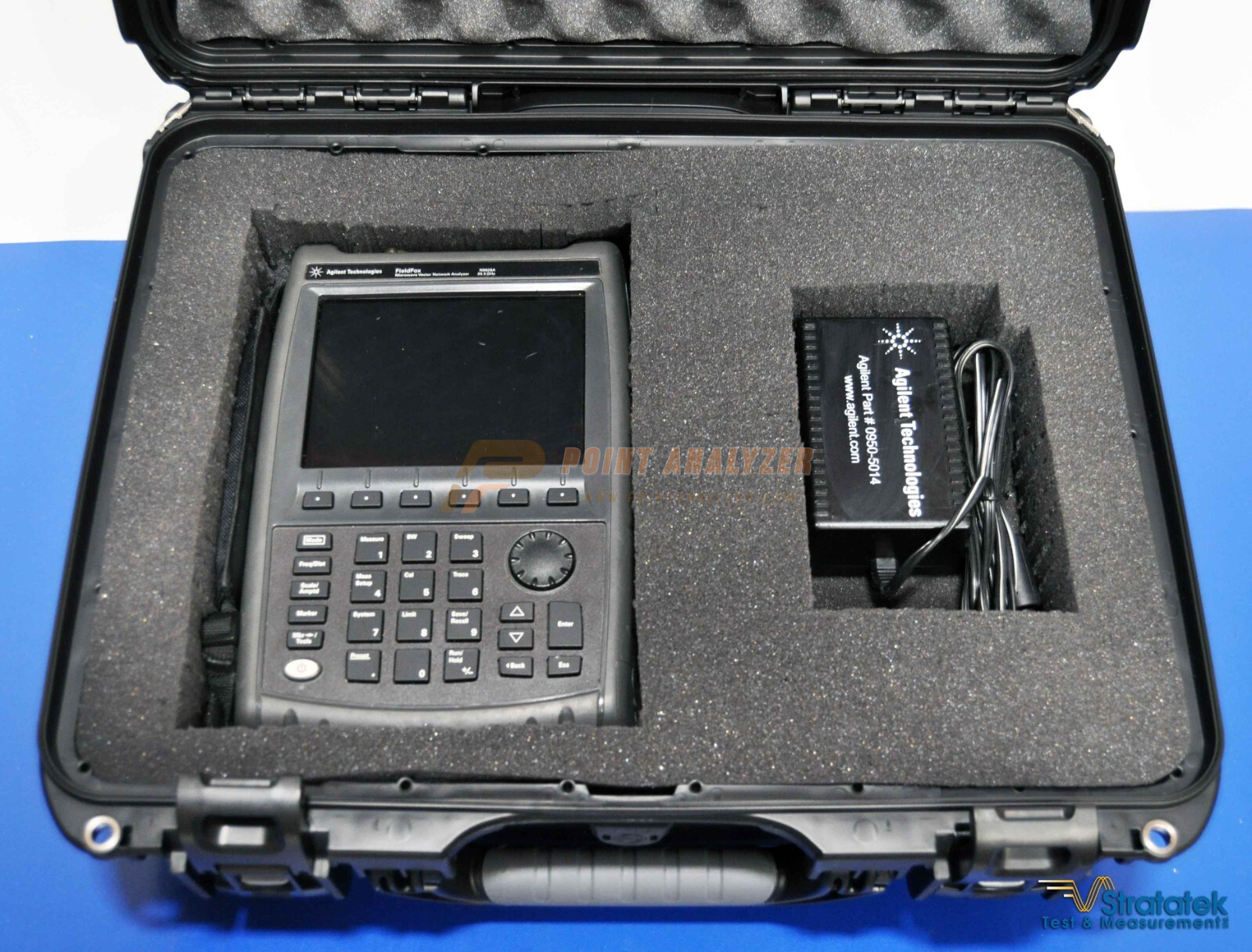

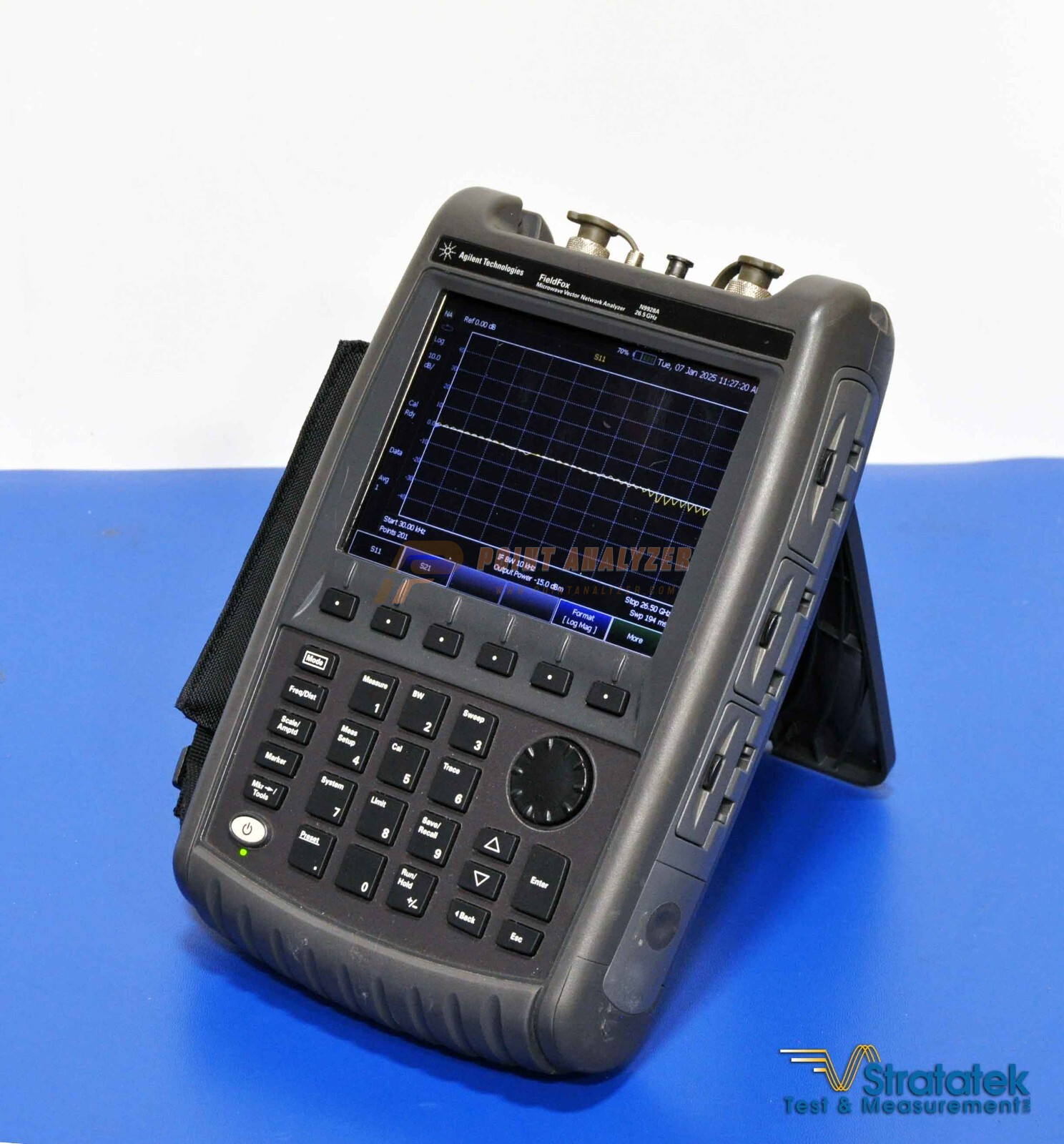

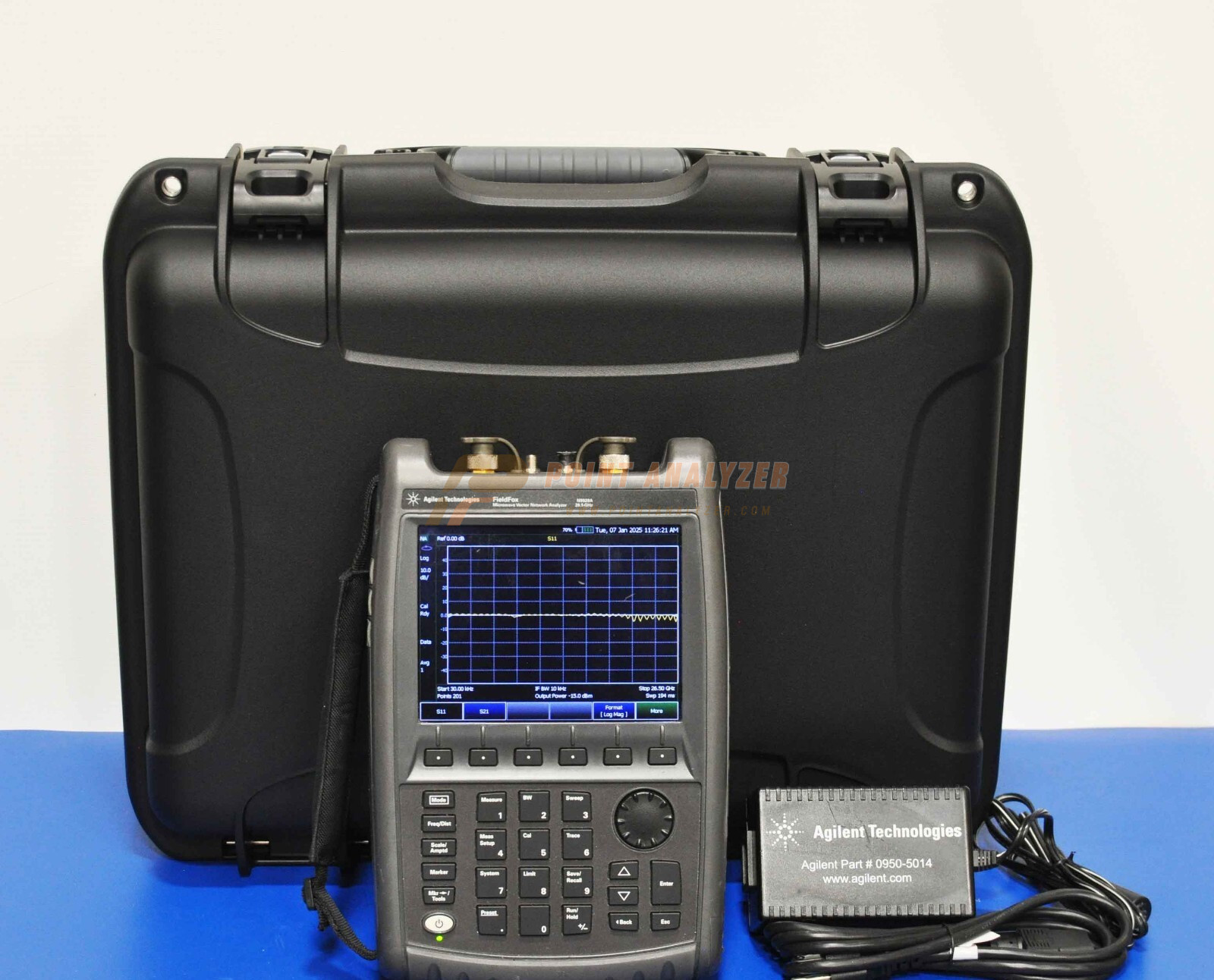

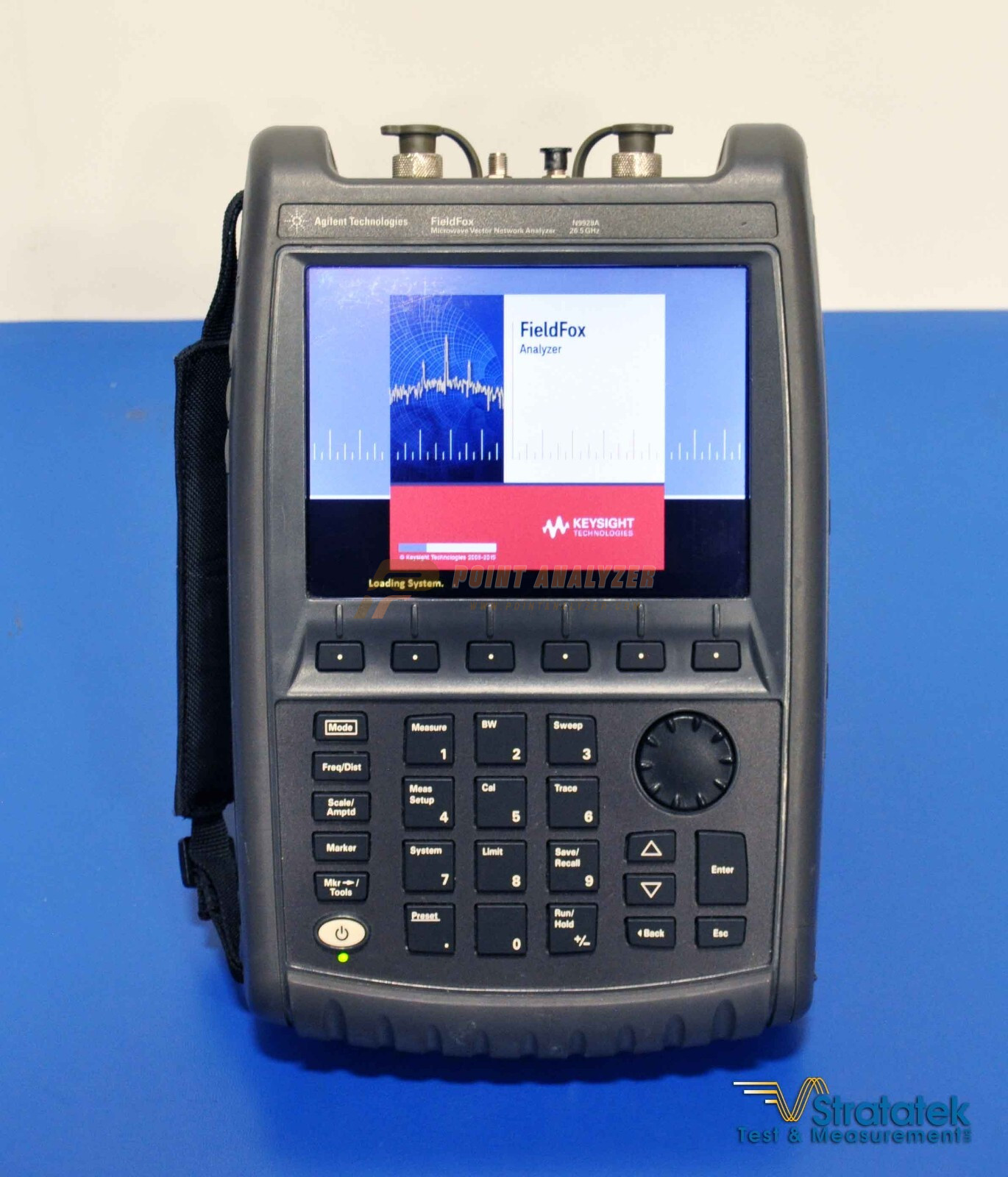

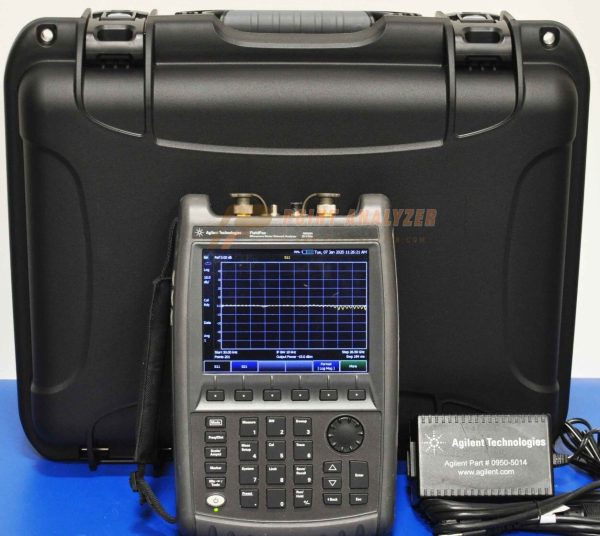

This item is an excellent condition used Keysight N9928A FieldFox Vector Network Analyzer 26.5GHz VNA. External case shows Agilent but internal firmware shows Keysight. Includes hard carry case, AC adapter/charger, and 180 day warranty.. All pictures are of the actual unit and accessories.

The FieldFox high-performance Vector Network Analyzer from Keysight offers the precision of a benchtop RF and microwave analyzer in the industry’s most integrated handheld unit. This network analyzer with (optional) spectrum analyzer can measure up to 50GHz. Compact size of only 11.5” (H) x 7.4” (W) x 2.8” (D), this lightweight unit weighs approximately 7lbs and provides battery life of up to 3-1/2 hours, allowing easy transportation and placement close to the object to be measured, achieving more efficient characterization. While designed for outdoor use, its high performance makes this unit completely suitable in R&D applications in the lab or on the bench. The base function of the FieldFox RF Combination Analyzer is a cable and antenna analyzer which can be configured to include a spectrum and network analyzer. Optional capabilities include power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, and GPS receiver.

N9928A Bandwidth: 30KHz ~ 26.5GHz
Directivity 34 dB, dynamic range 100 dB to 9 GHz, 94 dB to 18 GHz
Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps
Transmission/reflection (S21, S11), or full two-port (S21, S11, S12, S22)
Independent source, vector voltmeter (VVM), power sensor and built-in measurements
RF source: CW, CW coupled, and tracking
VVM: compare phase and electrical length
Power measurements with USB sensor: (sensor dependent)
Built-in power meter
Three-year warranty
Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA, optional)
Dynamic range: 100 dB
CAT: Distance-to-fault, return loss, cable loss
VNA (optional): S11, S21, S22, S12, magnitude and phase
Spectrum Analyzer (optional)
± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55°C (14 to 131°F)
Spur-free dynamic range: better than 105dB
Full-band tracking generator
Built-in power meter: 5 kHz to 18 GHz
