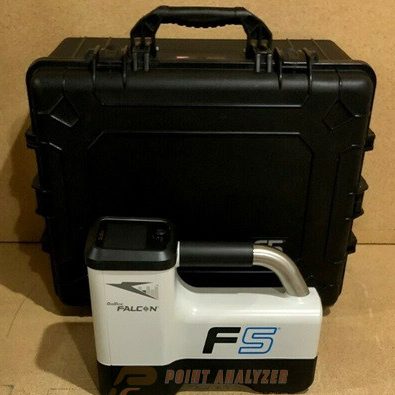

Digitrak Falcon F5 HDD Directional Drilling Receiver

Digitrak Falcon F5 HDD Horizontal Directional Drilling Receiver

The DigiTrak Falcon F5 is DCI’s flagship locator, providing the best depth and data range of DCI’s products together with the strongest interference combating capability.

The Falcon F5 uses the highest and lowest frequencies in the industry to overcome both active and passive (rebar) interference along the bore path. The Falcon F5 also offers Log-While-Drilling (LWD), fluid pressure monitoring, and integrated GPS as an option.

Features at a Glance:

• Scans 1000+ of the highest and lowest frequencies used in the industry
• Sub-K Rebar beats passive interference with ultralow frequencies
• Full scale 0.1% precision pitch
• Monitors down hole fluid pressure
• MAX Mode boosts data range and stabilizes depth readings
• New Falcon V2 transmitters with MultiPower mode
• DataLog with iGPS

Falcon F5 Locator Specifications:

Receiver Specifications

• Receiving frequencies: 0.33–45.0 kHz
• Telemetry channels1: 4
• Telemetry range2: defined by remote display
• Power source: Lithium-ion battery pack
• Battery life: 8–12 hrs
• Functions: Menu-driven
• Controls: Trigger and toggle switches
• Graphic display: Full-color LCD
• Audio output: Beeper
• Accuracy: ±5%
• Voltage, current: 14.4 VDC nominal, 390 mA max
• Operating temperature: -4 to 140° F
• Dimensions: 11 x 5.5 x 15 in.

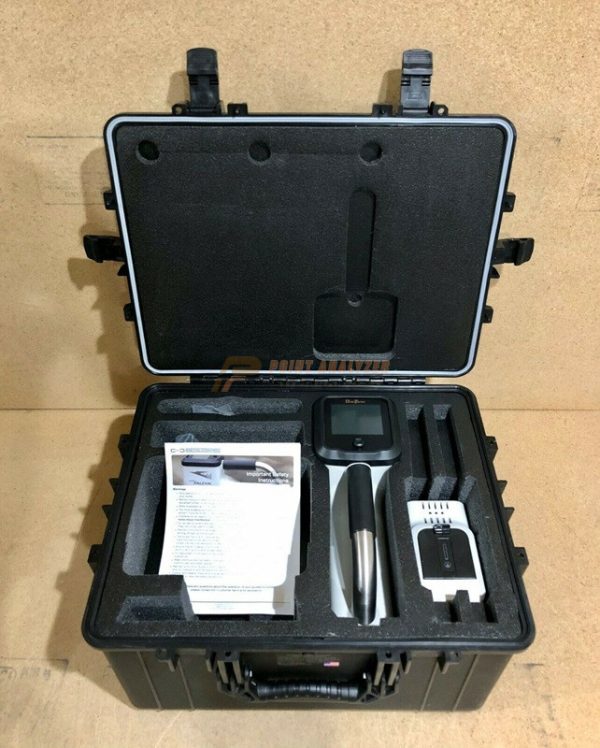

Package Includes:

• Digitrak Falcon F5 Locator
• Digitrak Aurora Display
• Battery
• Charger
• Hard Shell Carrying Case
• 60-Day warranty
