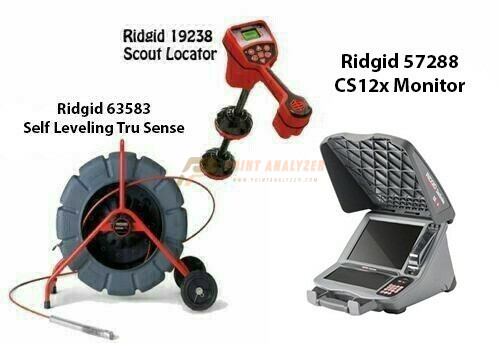

Ridgid 325′ SL Tru Sense Color Reel -Scout Locator -CS12x

Ridgid 325′ Self Leveling Tru Sense Color Reel – Navitrack Scout Locator – CS12x –

Ridgid 325′ Self Leveling Tru Sense Color Reel .
SeeSnakeStandard Camera with TruSense
Down pipe visibility vastly improved with High Dynamic Range(HDR) giving more clearly defined detail of pipe characteristics. Rugged,high-intensity LEDs for exceptional viewing and long life. Self-leveling camerahead keeps the image upright (certain models) Powerful FleXmitter® sonde haslong range and preserves the camera’s ability to make turns. High Dynamic Range(HDR) image sensor offers bright, clear in-pipe imaging in difficult lightingconditions TiltSense displays the camera’s pitch in a pipe on a connectedSeeSnake CSx series monitor.

Features:
The SeeSnake Standard camera reel offers unmatched reliability and performance in a ruggedized package
Now available with TruSense™ technology
The Standard has the stiffest push cable and is available in lengths up to 325′ (99 m) – making it perfect for long runs, particularly in larger pipes with fewer turns.
Rugged, high-intensity LEDs for exceptional viewing and long life.
Self-leveling camera head keeps the image upright.
Powerful FleXmitter® sonde has long range and preserves the camera’s ability to make turns.
High dynamic range (HDR) image sensor offers bright, clear in-pipe imaging in difficult lighting conditions.
TiltSense displays the camera’s pitch in a pipe on a connected SeeSnake CSx series monitor.

Specifications:
· Line Capacity 2″- 12″ (5-30cm)
· Maximum Run 325′(99m)
. Sonde 512Hz
· Weight (without monitor) 53 lbs. (19.5 kg)
· Reel Frame Diameter 32″ (81 cm)
· Camera Diameter 1.365″(35 mm)
· Camera Length 1.68″(42 mm)
· Push Cable Diameter .44″ (11 mm)
· Operating Temperature -4˚ to 104˚F (-20˚ to 40˚C)
· Waterproof Depth 330′(100 m)
· Video Resolution 656(H)x 492(V)

Navitrack Scout Locator (19238)
The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.
Easier Locates

The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate.

Accuracy
This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate.
Automatic Depth
Depth is automatically calculated and displayed when over the target.
Weight 3 lbs (1,4 kg)
Power Source 4 C-Cell batteries
Battery Life Approximately 24 hours
Specifications

Weight 3 lbs (1,4 kg)
Power Source 4 C-Cell batteries
Battery Life Approximately 24 hours
Standard Frequencies

Sonde 512 Hz, 640 Hz and 33 kHz
Line Trace 128 Hz, 1 kHz, 8 kHz and 33 kHz
Passive AC Line Trace 60 Hz, 50 Hz

Ridgid CS12x Digital Recording Monitor (57288)
The RIDGID® SeeSnake® CS12x Monitor delivers a large screen, dual battery functionality and Wi-Fi connectivity. Designed to help you work smarter, not harder on the job site.

Features
Enhanced Connectivity – Stream or record inspections to an iOS or Android phone or tablet with the free HQx Live companion app.
Storage Option – Capture images and video directly to a USB drive.
Dual Battery Power – Two batteries can be installed to deliver maximum runtime at the job site.
Large 12.1″ Display – At 12.1” and with a resolution of 1024×768 pixels, the upgraded high contrast display is crisp, clear and daylight readable.
More Powerful Processor – Delivers quick start-up time and snappy performance.

Specifications
Weight (without battery) 13.9 lb (6.3 kg)
Dimensions (LxWxH) 19.9″ x 15.5″ x 11.9″ (506 x 394 x 302 mm)
Power Source 18V Advanced Lithium Battery or AC Adapter
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Display 12.1″ (307 mm) Color LCD
Display Resolution 1024 x 768 Pixels, XGA
Video Format MPEG4 (H.264) 30 FPS
Photo Format JPEG
Autolog Format MPEG4 (H.256) Variable Frame Rate
Audio Integrated Microphone and Speaker
Transfer Method USB Drive
