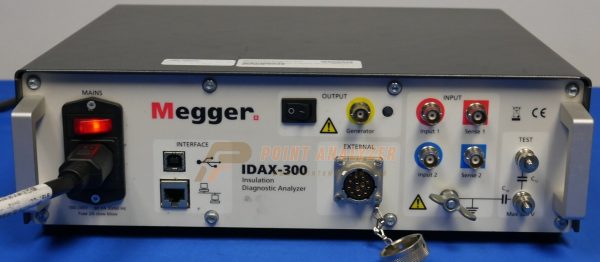

On Sale Megger IDAX-300S Insulation Diagnostic Analyzer, 2 Channel, w/ Generator & Measurement Cables Only US$17,900.00 good condition and ready to use. Using Dielectric Frequency Response (DFR) technology, this tool serves as an important predictive maintenance tool to accurately measure moisture levels, oil conductivity, and tan delta/power factor independently of temperature variables.
Condition
Used with Certificate of Conformance.
Included Accessories
1 Each | Power Cord 120V 15A
1 Each | USB Cable, Type A to Type B
1 Each | Transport Case
1 Each | Accessory Bag w/ Shoulder Strap
1 Each | Ground Cable, 5m
1 Each | Generator Cable, 18m
1 Each | Measurement Cable, Red, 18m
1 Each | Measurement Cable, Blue, 18m
1 Each | Manual Set and IDAX Software, USB Flash Drive
1 Each | Screw Cap, for Ext. Amp. Connector (installed)
- Test Technology: True Frequency Domain Spectroscopy (FDS) for robust noise rejection.
- Measurement Capabilities:
- Capacitance Range: 10 pF to 100 µF.
- Measurement Inaccuracy: 0.5% + 1 pF.
- Automated Analysis: Delivers calculated results using a simple “traffic light” condition assessment system.
- Output Parameters:
- Voltage: 0 to 200 Vpeak.
- Current: 0 to 50 mA peak.
- Test Modes Supported: UST-1, UST-2, UST-1+2, GST, GST-Guard-1, GST-Guard-2, and GST-Guard-1+2 (simultaneous dual-mode mapping).
- Standards Compliance: Fully compliant with international assessment guides including Cigre TB 254/414/445/775 and IEEE C57.152/161.
