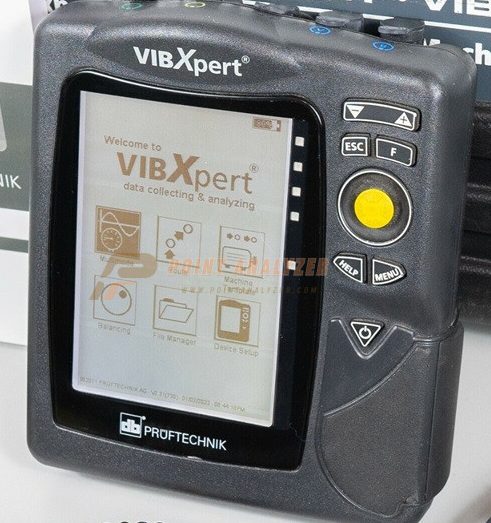

On Sale Pruftechnik VIB5.300 VibXpert Dual Channel Vibration Analysis Balancing Tool Only US$4,500.00
Pruftechnik VIB5.300 VibXpert Dual Channel Vibration Analysis System And Balancing Tool with accessories. Unit is in excellent condition with minimal signs of previous use and minor screen blemishes.
The VibXpert measurement device is not just the ideal companion for your routine measurement round, but also a reliable on-site aid for recording and analyzing complex machine signals.
Hardware:
- Two synchronous measurement channels for diagnosis of complex measurements (e.g. shaft vibration).
- Unlimited storage capacity via replaceable (compact flash) memory cards.
- Four alarm LEDs (red-yellow-green-blue) indicate if thresholds have been exceeded (based on ISO standards)
- Daylight sensor controls keyboard illumination
- Dust and splash proof (IP65) – ideal for use in demanding industrial environments
- Connector technology compatible to VIBSCANNER (same cable)
- Connector for NiCrNi thermocouples
- Signal output for headphones and strobe light.
- Large, backlit screen (480 x 320 pixels, 115 x 78 mm 16 gray
- levels) ensures clear data presentation and optimum readability
- Easy-to-use joystick operation
- Graphical user interface
- Color-coded connectors
Installed Software Options:
- VIBXPERT PC License
- VIBXPERT – 2 Channel
- VIBXPERT – 1 Channel
- Advanced Analysis Functions
- Coast Down Analysis
- Time Waveform
- Balancing
- Recording
- Template
- Route
- FFT Analysis – Full Version
- VIBXPERT Basic

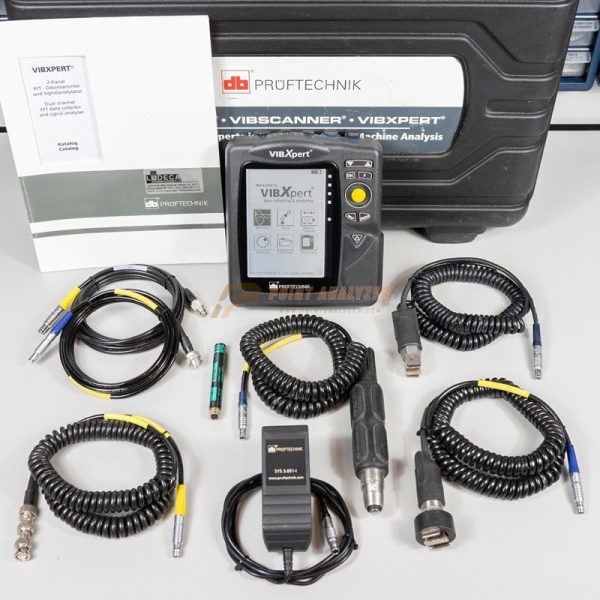

Package Includes:
- Pruftechnik VIB5.300 VibXpert Dual Channel Vibration Analysis System And Balancing Tool
- Pruftechnik Hard Transport Case
- Pruftechnik Rechargeable Battery Pack

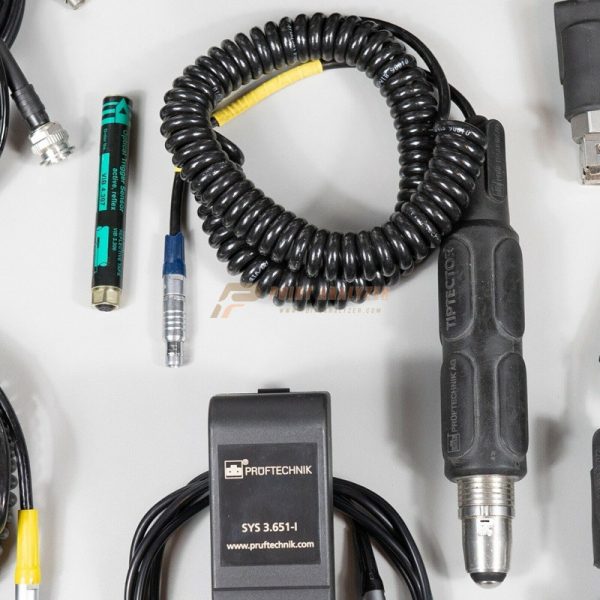

- Pruftechnik SYS 3.651-I Power Supply Charger

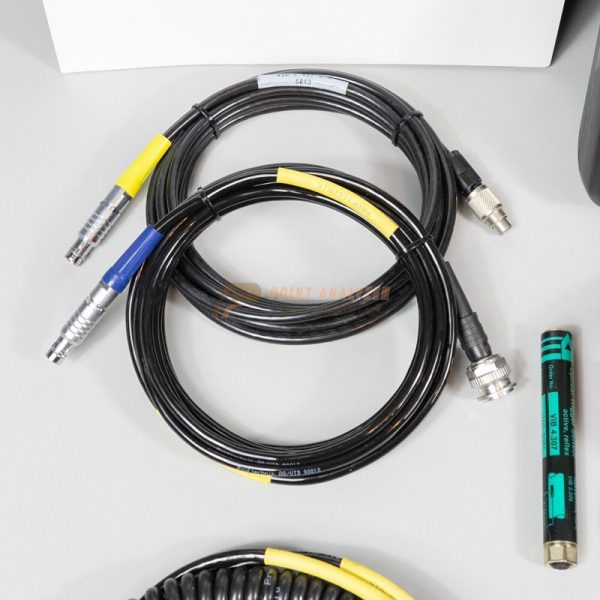

- VIB 5.437-2 Cable
- VIB 5.432-2 Cable
- VIB 4.307 Optical Trigger Sensor
- Pruftechnik VIB 5.436 Cable
- VIB 8.736 Magnetic Sensor Mount
- VIB 5.443 Cable
- VIB 5.436 Cable
- VIB 3.420 Magnetic Sensor Mount
- Pruftechnik Tiptector VIB 8.633
- Pruftechnik VibXpert Catalog
- 90-Day warranty
