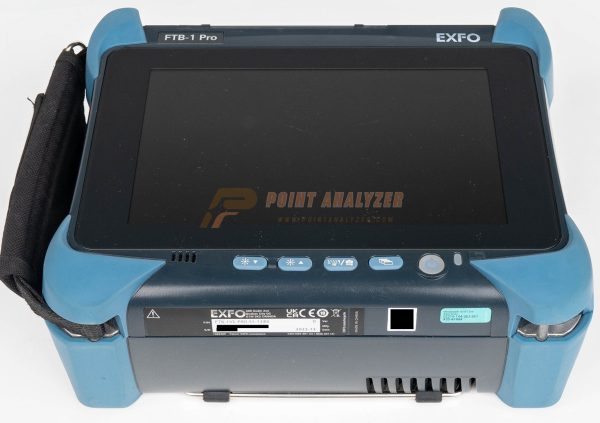

Hot Sale Exfo FTB-1 V2-Pro-S1-128G FTBx-945-SM3-EA FTBx-730C-SM3-EA (SM) Modular OTDR Only US$8.900.00.
Product Features:

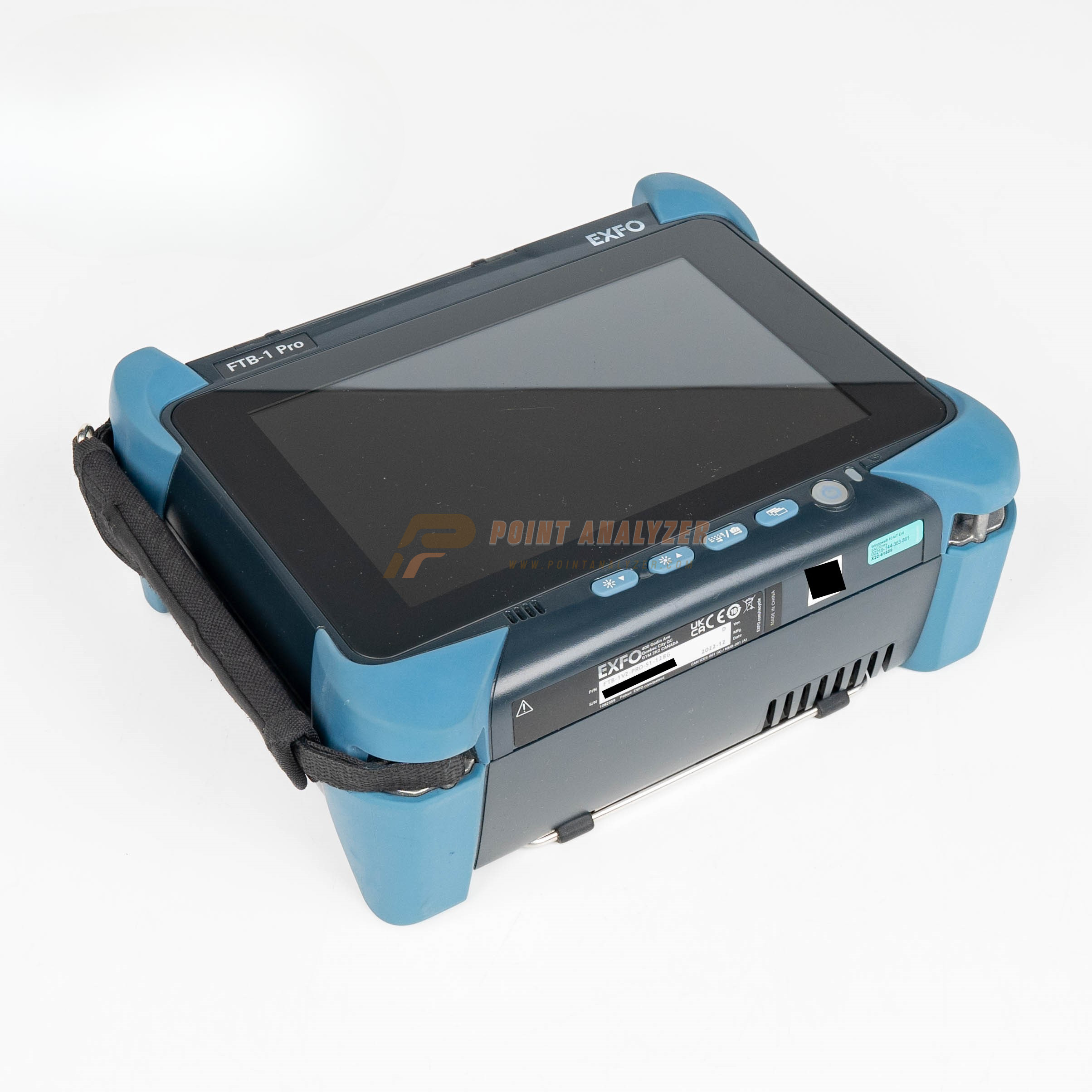

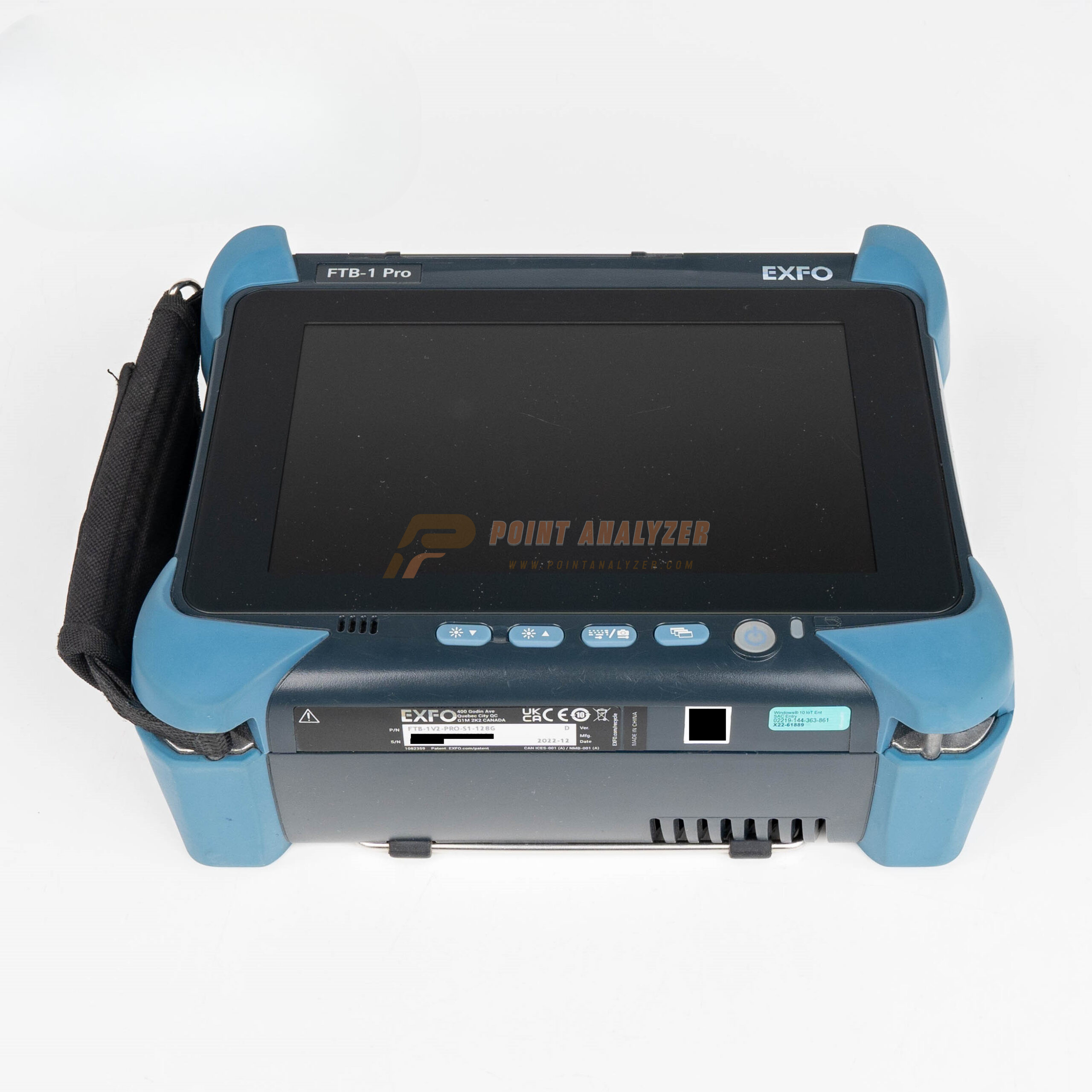

Exfo FTB-1 V2-Pro
The FTB-1 version 2, available in standard (FTB-1v2) or Pro (FTB-1 Pro) models, is a light-weight compact test platform allowing field technicians to carry out dedicated optical, Ethernet, multiservice and radio frequency (RF) interference test applications simply and efficiently, thanks to its ultra-powerful processing and highly intuitive interface.
Applications
Fiber characterization
FTTH testing
Access fiber networks
Multiservice testing up to 10 Gbit/s*
Gigabit/10 Gigabit Ethernet configurations*
Wireless fronthaul and backhaul testing*
RF spectrum analysis over CPRI*
Highlights:
Connects anywhere: USB, mobile, WiFi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, plus any third-party applications
Like a PC: available with dual- or quad-core processor and Windows operating system
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Single- or dual-carrier configuration available to slot compatible FTBx test modules.
High-power two-slot carrier configuration enabling simultaneous 100G quad port testing
OPTION:
RF
FTB-945
Telco fully automated OLTS module
The FTBx-940/945 Telco OLTS can measure insertion loss (IL), optical return loss (ORL) and fiber length at two wavelengths under 5 seconds via fully automated bidirectional FasTesT analysis. FTTx certification and outside plant network testing just became a lot faster.
Highlights:
Perform 100% automated bidirectional tests at two wavelengths in under 5 seconds with FasTesT
100% automated fiber inspection: one-step process with pass/fail analysis at both ends
On-board assistant and diagnosis to reduce reference errors and negative loss
Improved short fiber measurement
Compatible with FTB-2 and FTB-2 PRO platforms
Best-in-class singlemode distance range of 200 km
OPTION:
OTDR
FTB-730C
The FTBx-730C is the OTDR of choice for field technicians who need to accurately test through splitters and troubleshoot FTTH networks down to the smallest details. This OTDR is optimized to test through optical splitters and characterize FTTH links. Field technicians can characterize and troubleshoot links up to 100 km thanks to its dynamic range of up to 39 dB.
Highlights:
The highest resolution for PON testing and the shortest PON dead zone to find more problems closer to the splitter than any other OTDR.
Proven superiority in characterizing double-stage splitters and closely spaced events.
User-friendly graphical user interface and Windows 8.1 Pro operating system
Multiple applications for file sharing, e-mailing, Skype, remote assistance, etc.
Test through high-port-count splitters (up to 1×128)
Singlemode port for in-service troubleshooting with in-line 1490/1550 nm power meter
Dynamic range of up to 39 dB
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
Specifications
FTB-1v2
Mainframe: Dual-core processor / 4 GB RAM / Windows 10
Display: Touchscreen, color, 1280 × 800 TFT 203 mm (8 in)
Storage (internal flash memory): 64 GB
Battery: Rechargeable Li-ion smart battery
Interfaces:
RJ45 LAN 10/100/1000 Mbit/s
USB 2.0 ports (2)
USB 3.0 port (1)
Micro SD card slot
3.5 mm headset/microphone port
Power supply:
AC/DC adapter, input: 100 – 240 V; 50/60 Hz;
2.5 A max, output: 24 V; 3.75 A
With high-power dual carrier:
AC/DC adapter, input: 100 – 240 V; 50/60 Hz;
4.0 A max, output: 24 V; 8.33 A
FTB-1 PRO
Mainframe: Quad-core processor / 4 GB RAM / Windows 10
Display: Touchscreen, color, 1280 × 800 TFT 203 mm (8 in)
Storage (internal flash memory): 128 GB
Battery: Rechargeable Li-ion smart battery
Interfaces:
RJ45 LAN 10/100/1000 Mbit/s
USB 2.0 ports (2)
USB 3.0 port (1)
Micro SD card slot
3.5 mm headset/microphone port
Power supply:
AC/DC adapter, input: 100 – 240 V; 50/60 Hz;
2.5 A max, output: 24 V; 3.75 A
With high-power dual carrier:
AC/DC adapter, input: 100 – 240 V; 50/60 Hz;
4.0 A max, output: 24 V; 8.33 A
Package Includes
EXFO FTB-1V2-S1-64G Mainframe
Hard Transport Case
5 x Fiber Patch Cable
North American Style AC Power Cable
AC to DC Power Supply Charger
