Product Features:

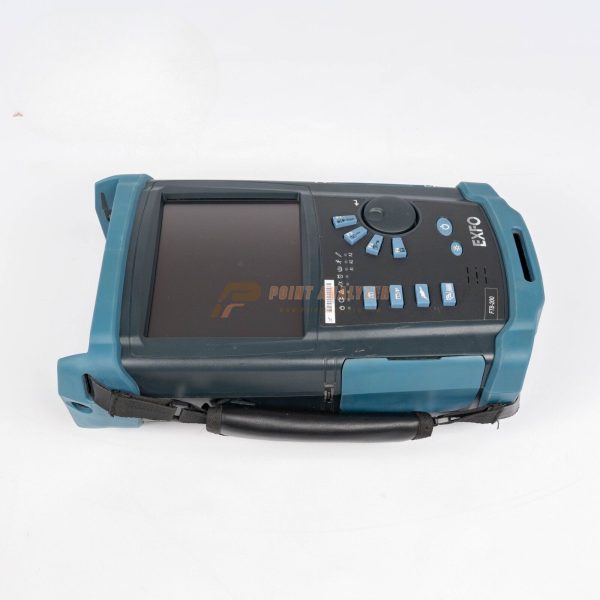

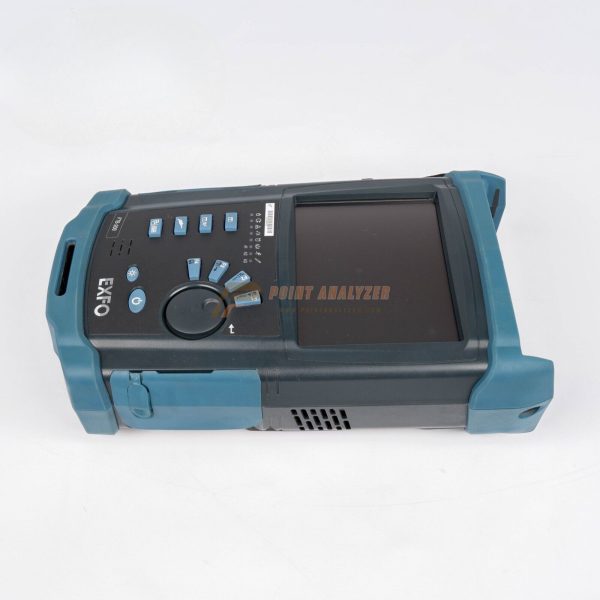

The EXFO FTB-200-V2-S1 Compact OTDR Platform is optimized for all phases of the network life-cycle. The FTB-200-V2 houses any of EXFO’s FTB one- or two-slot modules to meet your evolving needs. Configure your platform by combining optical, transport and datacom modules to cover a variety of applications. A compact format offering power, speed and modularity, the FTB-200-V2 OTDR is the ideal tool for the field. Providing the same compatibility as its predecessor, the FTB-200-V2 platform now leverages a powerful Intel ATOM processor to deliver unmatched speed and performance for the most demanding test applications.
Highlights:
Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, plus third-party applications
Like a PC: Intel processor with Windows Embedded Standard operating system
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
GPS capabilities: accurate coordinates under the same conditions as a regular satellite GPS receiver
FTB- 7300E
Designed to meet testing requirements brought by FTTH networks in general, and PONs/MDIs in particular, the FTB-7300E enables testing at 1310, 1490, 1550, and 1625/1650 nm. The EXFO next-generation OTDR software also lets you test through high-port-counter splitters—even 1×64 splitters—with loss levels of up to 21 dB.
The flexibility to add a single mode live testing port for in-service troubleshooting lets you fix problematic distribution fiber while the others are still active. Its filtered port blocks incoming transmission signals and its out-of-band wavelength will not interfere in your network. Maintaining an excellent quality of service (QoS), it will ease the troubleshooting testing steps.
Highlights:
234B = OTDR Medium Haul Singlemode Module 1310nm/1550nm/1625nm 39dB/37dB/37dB
Test through high-port-count splitters of (up to 1×128)
Singlemode port for in-service troubleshooting
Dynamic range of up to 39 dB
Short acquisition time to speed up deployment process
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
Specifications
Display: Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in)
Storage: 8 GB internal memory (flash)
Interfaces:
Two USB 2.0 ports
RJ-45 LAN 10/100/1000 Mbit/s
Fiber inspection probe connector port (video)
Built-in Bluetooth and Wi-Fi (hardware option)
Power Supply: AC/DC adapter, input 100-240 VAC, 50-60 Hz, 1.6 A max, output: 24 VDC, 90 W
Battery:
Rechargeable lithium-ion batteries
8 hours of operation as per Telcordia (Bellcore) GR-196
Package Includes
Exfo FTB- 200- V2- S1 Mainframe
Exfo Soft Carrying
AC Power Cable
AC to DC Power Supply
Stylus
Shoulder Strap
