Lecroy WavePulser 40iX High Speed Interconnect Analyzer VNATDR DC-40GHz

Hot Sale Lecroy WavePulser 40iX High Speed Interconnect Analyzer VNATDR DC-40GHz, Only  $ 19.000,00. Uniquely, this instrument bridges the gap between time domain and frequency domain instruments by functioning as a combined Vector Network Analyzer (VNA) and Time Domain Reflectometer (TDR) in one acquisition system.

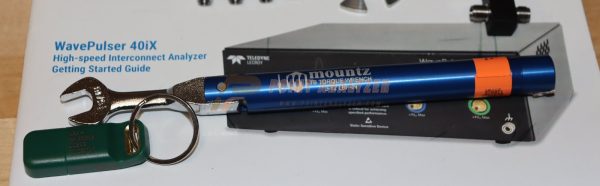

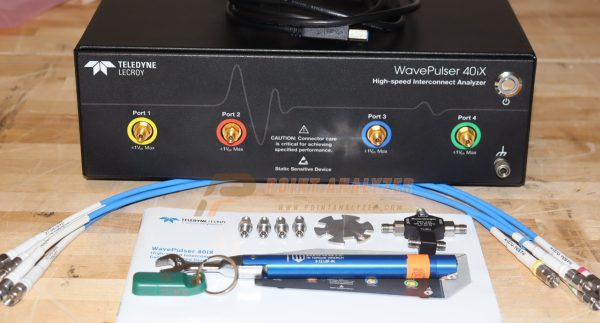

This is a Teledyne Lecroy WavePulser 40iX High Speed Interconnect Analyzer. This unit is in GREAT condition, and guaranteed fully operational. This unit comes with the 2.92mm Calibration Kit, a Matched set of 2.92mm Test Cables, and Adapters shown.

The Teledyne Lecroy WavePulser 40iX is the ideal single measurement tool for high-speed hardware designers and test engineers. Neither VNAs (the “gold standard” for microwave or narrow-band device measurements) or TDRs (the traditional measurement instrument of the signal integrity engineer) have all the necessary features and capabilities. WavePulser 40iX comes standard with a deep analysis toolbox specifically tailored for understanding high-speed interconnect characteristics. WavePulser 40iX is fast to calibrate and simple to use.

With a bandwidth from DC to 40 GHz, the Lecroy WavePulser 40iX delivers TDR step response and time-gated and/or emulated physical-layer responses with no need for extrapolation to DC and low frequencies, which is ideal for interconnection systems. WavePulser 40iX is designed specifically for high-speed interconnect analysis. It validates, debugs, and troubleshoots interconnectivity issues in serial-data cables, channels, connectors, vias, backplanes, printed-circuit boards, and chip and SoC packages. It is simple to set up and use.

• Bandwidth: DC to 40 GHz.
• Rise Time: Extremely fast 8.5 ps impulse rise time.
• Spatial Resolution: Pinpoints physical impairments along a transmission line with less than 1 mm accuracy.
• Connectors: 2.92 mm K-type ports
