Pruftechnik VibXpert II Dual Channel Vibration Analyzer Balancer With OmniTrend
Pruftechnik VibXpert II Dual Channel Vibration Analyzer With OmniTrend with OmniTrend PC Software License. Unit is used and in excellent condition with only minor signs of previous use. Thoroughly tested to be in working order with a 90-Day warranty.
Installed Software Options:
- VIBXPERT PC License
- VIBXPERT – E Registration
- VIBXPERT – 2 Channel
- VIBXPERT – 1 Channel
- Balancing
- Recording
- Template
- VIBXPERT Basic
Applications include:
- Route-based data collection
- Automatic data acquisition with a multiplexer
- Vibration-based condition monitoring
- Field balancing (1 or 2 planes)
- Acceptance measurement with machine templates
- Troubleshooting
- Multimeter
- Data logging
- Visual inspection
Specifications
Parameter
- VIB 5.310 Input Channels
- Analog 2x Voltage (AC/DC, ±30 V max.), Current (AC/DC, ±30 mA max.)
- ICP-type accelerometer 2 mA, 24 V max.
- Current Linedrive (CLD) accelerometer 10 V, 10 mA max.
- Frequency range DC … 51.2 kHz (Acceleration from 0.5 Hz)
- Dynamic range 96 dB (measurement) / 136 dB (total)
- Sampling frequency up to 131 kHz per channel
- Impedance 90 kOhm, with cable
VIB 5.433 Input Channels
- Analog 1x Thermocouple (type K)
- Digital 1+1 Pulse/Tacho (1x RPM, Trigger, Keyphaser with pulse and AC signals)
- Signal range 0 V … +26 V or -26 V … 0 V
- Max. input voltage ±26 V
- Switching threshold (0 V … +26 V signal) max. 2.5 V rising, min. 0.6 V falling
- Switching threshold (-26 V … 0 V signal) min. -8 V rising, max. -10 V falling
- Pulse width < 0.1 ms

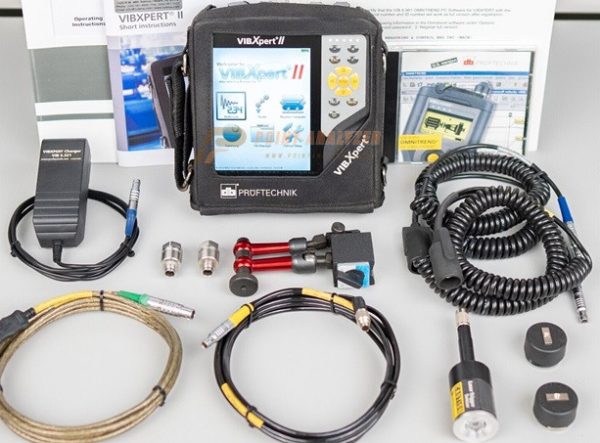

Package Includes:
- Pruftechnik VibXpert II Main Frame
- Pruftechnik Hard Transport Case
- Shoulder Strap
- 2 x Spiral Cable
- Power Supply Charger
- 2 x VIB 6.147 Accelerometer
- Laser Trigger Sensor
- Sensor Stand
- Pruftechnik VIB 5.437 Current Sensor Cable
- Pruftechnik VIB 5.432 Cable
- Pruftechnik VIB 4.750 Cable
- Pruftechnik Main Frame Soft Protective Case
- Omnitrend Software License
- 90-Day warranty
