EXFO FTB-1 V2 PRO FTBx-720C-SM1-EA SM Optical Time-domain Reflectometer

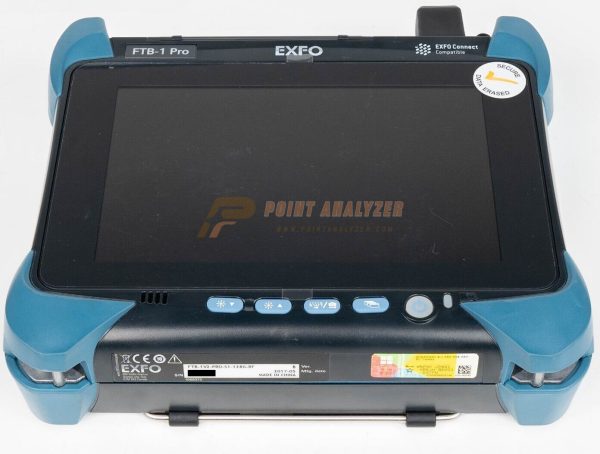

On Sale Exfo FTB-1 V2-Pro-S1-128G FTBx-945-SM3-EA FTBx-730C-SM3-EA (SM) Modular OTDR Only US$3,400.

Item Description
EXFO FTB-1 V2 PRO FTBx-720C-SM1-EA SM Optical Time-domain Reflectometer (OTDR) with all accessories seen in photogaraphs. Unit is used and in excellent condition with minor signs of previous use. Thoroughly tested to be in working order with a 60-Day warranty. Ships from Ontario, Canada with an expedited service. For questions please contact us. We appreciate your business!

Product Features:
The FTB-1 Pro model is a light-weight compact test platform allowing field technicians to carry out dedicated optical, Ethernet, multiservice and radio frequency (RF) interference test applications simply and efficiently, thanks to its ultra-powerful processing and highly intuitive interface

Compact modular measurement platform EXFO FTB-1 Pro is an all-in-one solution for exhaustive testing of all types of data networks with speeds up to 111.81 Gbps. One measuring module (single or double thickness) can be mounted on the platform. The module type determines the measurement capabilities of the platform.

Module Options:
OTDR
IOLM

Highlights:
Connects anywhere: USB, mobile, WiFi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, plus any third-party applications
Like a PC: available with dual- or quad-core processor and Windows operating system
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
Single- or dual-carrier configuration available to slot compatible FTBx test modules.
High-power two-slot carrier configuration enabling simultaneous 100G quad port testing

Applications
Fiber characterization
FTTH testing
Access fiber networks
Multiservice testing up to 10 Gbit/s
Gigabit/10 Gigabit Ethernet configurations
Wireless fronthaul and backhaul testing
RF spectrum analysis over CPRI

EXFO FTB-720C-SM1-XX
The ideal construction OTDR for everyday field testing in any access network. With an iOLM application for both singlemode and multimode testing, it’s the most automated and intelligent troubleshooting tool for FTTA, LAN and data centers.

Highlights:
Dynamic range of up to 36 dB in singlemode
Event dead zone as low as 0.7 m and attenuation dead zone of 3 m
Live fiber testing at 1625 nm
Combined singlemode/multimode wavelengths
Encircled Flux (EF) ready: use with external launch mode conditioner for EF-compliant multimode results
iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

Specifications
FTB-1 Pro
Mainframe: Quad-core processor / 8 GB RAM
Operating System: Windows 10 IoT Enterprise LTSC 2021
Display: Touchscreen, color, 1280 × 800 TFT, 203 mm (8 in)
Storage (Internal Flash Memory): 128 GB
Battery: Rechargeable Li-ion smart battery (Two batteries with the high-power dual carrier)

Interfaces
RJ45 LAN 10/100/1000 Mbit/s
USB 2.0 ports (2)
USB 3.0 port (1)
Micro SD card slot
3.5 mm headset/microphone port

Power Supply With high-power dual carrier:
AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A
AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 5.0 A max, output: 24 V; 13.75 A

EXFO FTB-720C
Optical Configuration: (FTB-720C-XX)
SM1: SM OTDR, 1310/1550 nm
SM2: SM OTDR, 1310/1550 nm and 1625 nm live (a)
Q1: MM OTDR, 850/1300 nm. QUAD-ready (a)
Q1-QUAD: QUAD OTDR, 850/1300 nm and 1310/1550 nm

Notes:
The two ports are configured with the same adapter.
Please refer to the iOLM specification sheet for the complete and most recent description of these value packs.
Multimode connectors available in EI (UPC) only.

Package Includes
EXFO FTB-1 PRO Mainframe
Exfo Soft Carrying Case
Neck Strap
Shoulder Strap
Ethernet Cable
Stylus
AC Power Cable
AC to DC Power Supply Charger
Important Safety Instructions
FTB-1v2 Pro & FTB-1v2 Pro Quick Reference Guide
IOLM Quick Reference Guide
OTDR Quick Reference Guide
IOS Quick Reference Guide
Android Quick Reference Guide
FIP-400B And Connector Max 2 Quick Reference Guide
