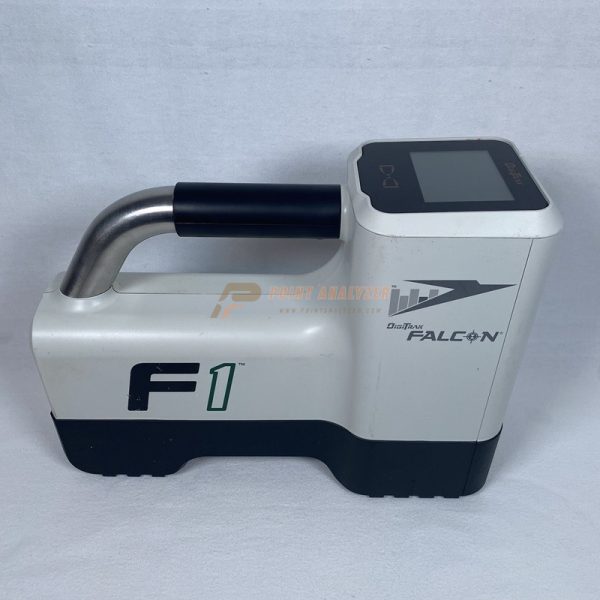

DigiTrak Falcon F1 Locator

DigiTrak Falcon F1 Locator

The Falcon F1 replaces DCI’s popular DigiTrak SE and introduces Falcon technology to customers who typically perform short and shallow bores. DCI’s Falcon technology minimizes the effect of active interference on jobsites, resulting in increased uptime for HDD crews. The Falcon F1 is a single-band receiver that uses the same frequency optimization technology as other Falcon receivers.

• Falcon frequency optimizer helps minimize the impact of active interference
• The Falcon F1 single-band transmitter supports frequencies from 9.0 kHz to 13.5 kHz
• Infrared pairing of receiver and transmitter
• 0.1% precision pitch for completing critical grade bores
• Max Mode noise filtering boosts fringe data and stabilizes depth readings
• 12-position roll clock with roll offset
• Compatible with DigiTrak Aurora touchscreen display

DigiTrak Falcon F1 Receiver Specifications:

• Receiving frequencies: 9.0–13.5 kHz
• Telemetry channels1: 4
• Telemetry range2: defined by remote display
• Power source: NiMH battery pack
• Battery life: 5–7 hrs
• Functions: Menu-driven
• Controls: Trigger switch
• Audio output: Beeper
• Accuracy: ±5%
• Voltage, current: 14.4 VDC nominal, 300 mA max
• Dimensions: 11 x 5.5 x 15 in
• Weight (with battery): 7.6 lb

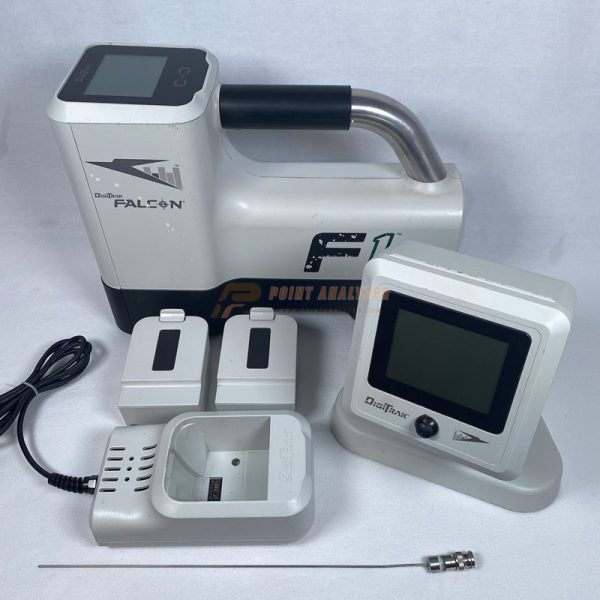

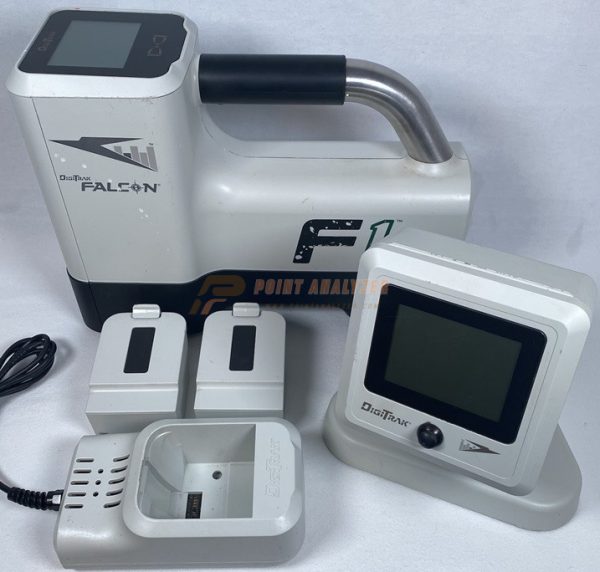

Package Includes:

• Falcon F1 locator

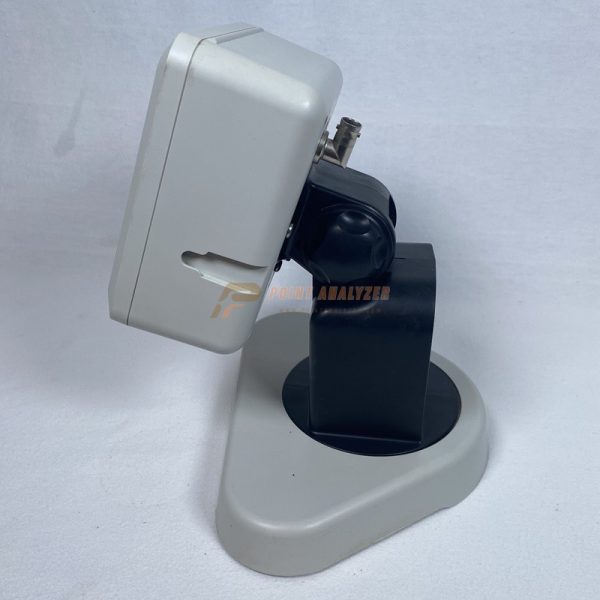

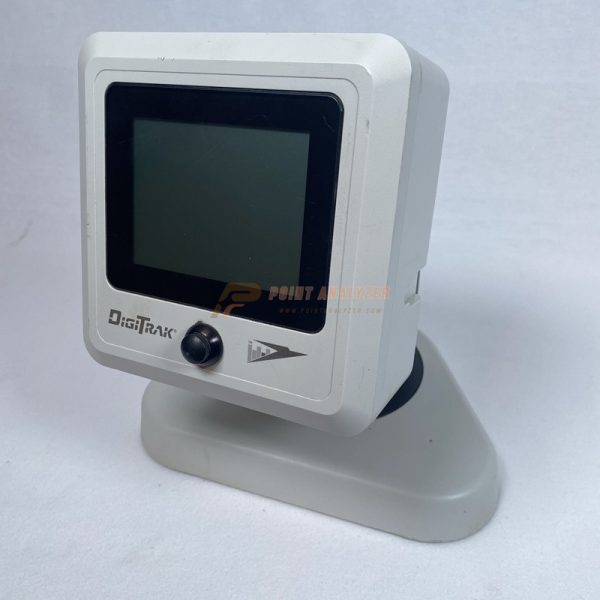

• Remote display screen (with antenna)
• Two rechargeable batteries
• Battery wall charger
• Transmitter battery and adaptor
• Hard shell carrying case
• 60-Day warranty
