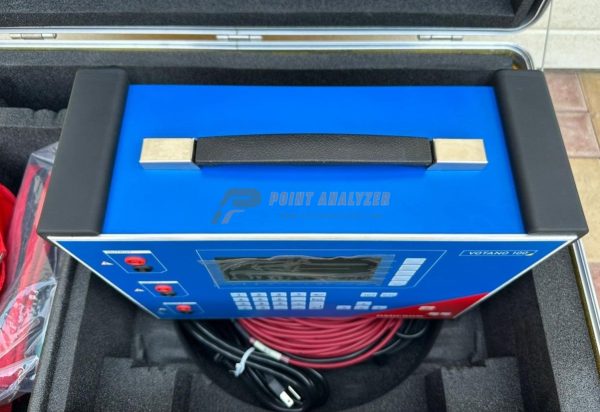

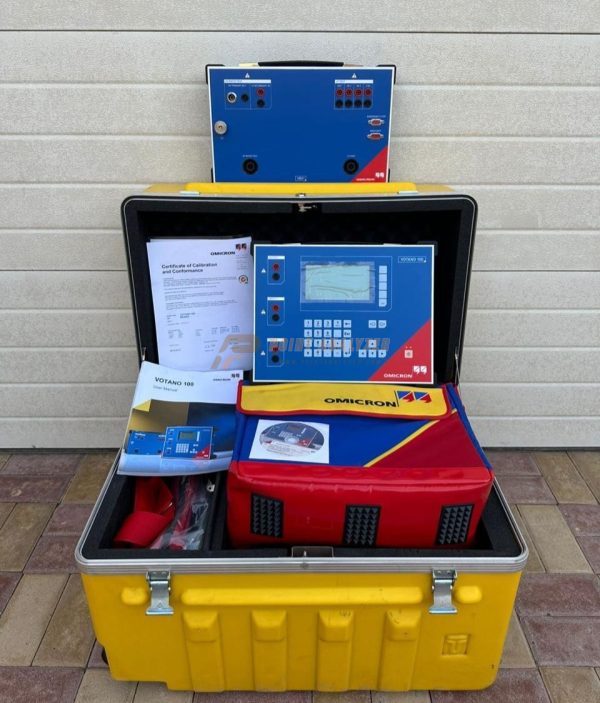

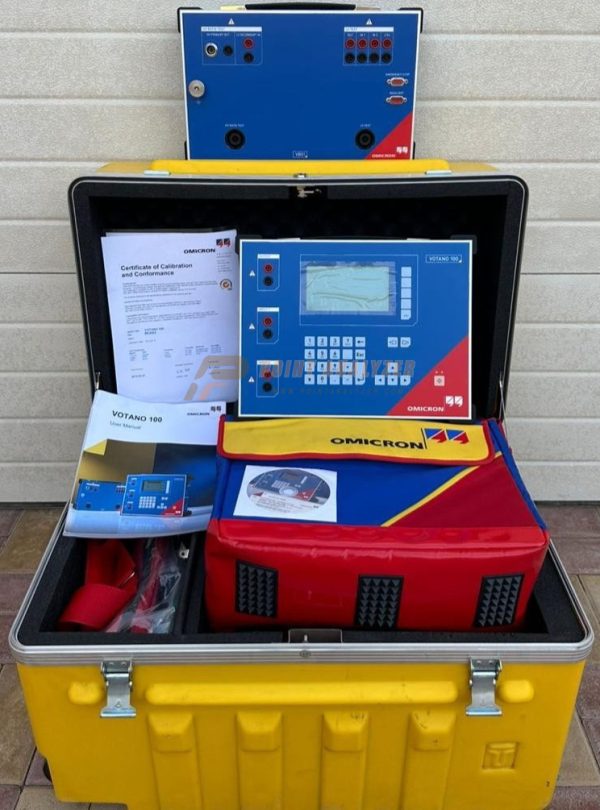

OMICRON VOTANO 100 Voltage Transformer Testing and Calibration WITH ACCESSORIES

For Sale OMICRON VOTANO 100 Voltage Transformer Testing and Calibration WITH ACCESSORIES Only US$23,500. Weighing less than 15 kg (33 lbs), it uses a specialized model-based testing approach to evaluate transformer performance parameters and provides an automated compliance assessment to international standards in less than 20 minutes.

• Ratio & Phase Accuracy: Measures transformer ratio error and phase displacement across different burdens and voltage ranges.
• Winding Resistance: Evaluates the internal DC resistance of the transformer windings.
• Polarity Check: Automatically verifies correct phase orientation.
• CVT Capacitance Divider Test: Utilizes a frequency-variable injection method to determine individual stack capacitances (C₁ and C₂) and the total capacitive ratio without requiring a high-voltage primary source.
• Burden Measurement: Measures the connected operational burden to ensure accurate sizing and system performance.

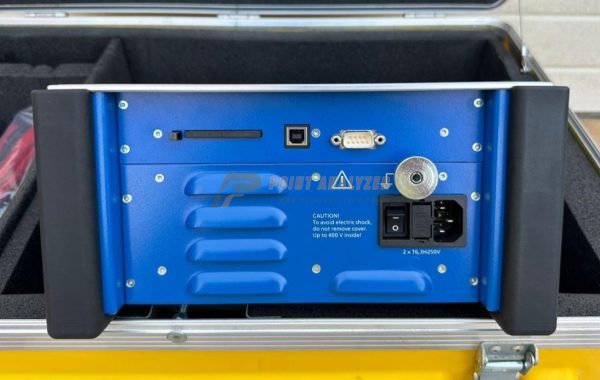

• Input Power: 100–240 VAC nominal (85–264 VAC permissible), 50/60 Hz, 500 VA max.
• Output Voltage: 0–120 VAC / 0–120 VDC.
• Output Current: 0–5 \(A_{eff}\) (\(15\text{ A}_{peak}\)).
• Output Power: 0–400 \(VA_{eff}\) (\(1,500\text{ VA}_{peak}\)).
• Dimensions (W×H×D): 360 × 285 × 145 mm (9.2 × 7.2 × 3.7 in).
• Weight: 7.8 kg (17.2 lbs) without accessories. [1]
