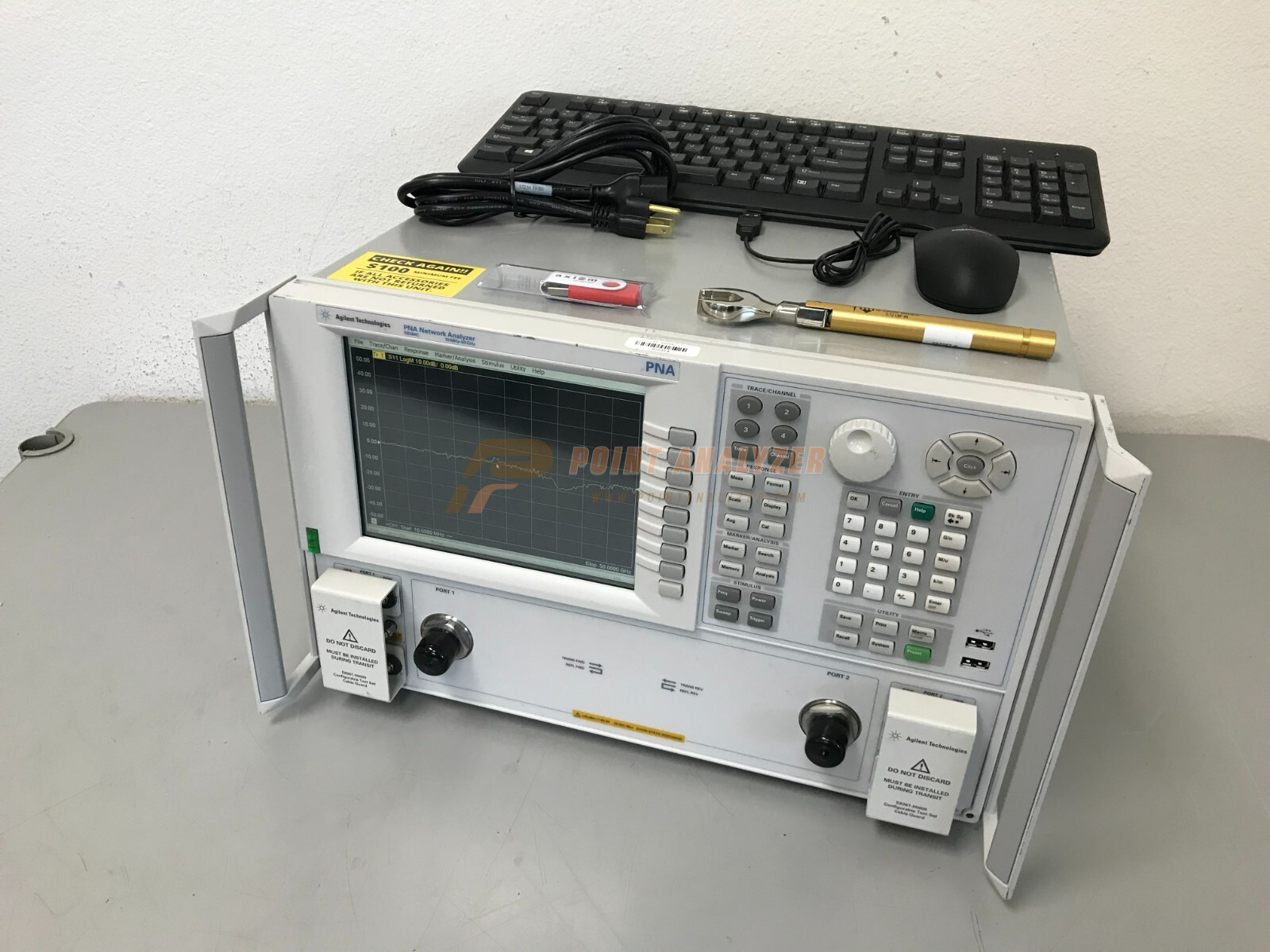

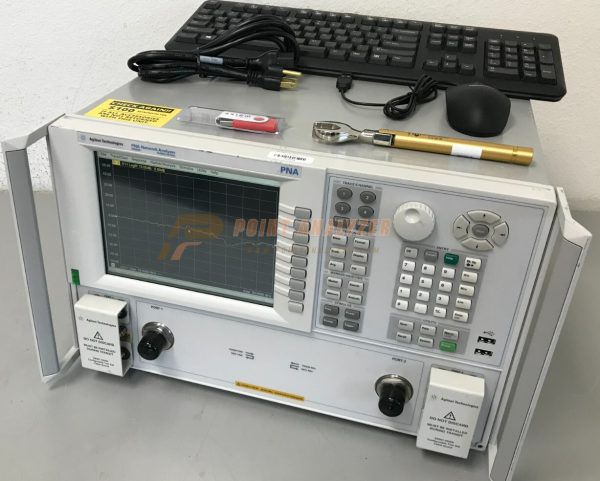

Agilent Keysight E8364C PNA Vector Network Analyzer 10MHz-50GHz

Product Description

Hot sale Agilent Keysight E8364C PNA Vector Network Analyzer 10MHz-50GHz, only $40.800,00.

Options Included:
010 – Add time domain capability
014 – Configurable test set deck
016 – Add receiver attenuators
080 – Frequency offset
081 – Reference-receiver switch
083 – Frequency converter measurement application
UNL – Extended power range with bias tee

Product Overview
Agilent E8364C Network Analyzer is part of Agilen’t PNA series of network analyzer (Performance Network Analyzers) and feature the highest levels of accuracy for your critical needs. The Agilent E8364C has a wide frequency range of 10 MHz to 50 GHz and has 2-Ports and 4 Receivers. An integrated S-parameter test set with four receivers allows true TRL calibration. TRM/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurements are all part of this Network Analyzers capabilities. A large 8.4 LCD front panel display with touch screen (1024×768 resolution) is integrated into the instrument. Enhanced Windows graphical user interface. Hard keys and soft keys for simple operation without a mouse are featured. And an optional configurable test set is available with option 14.

Features and specifications of the Agilent E8364C Network Analyzer include:

< 26 usec/point measurement speed
Measurement channels: 32 independent measurement channels
Measured number of points per sweep: User definable from 2 to 20,001
System Dynamic range up to 50 GHz: 104 dB standard at 10 Hz IF bandwidth
Amplifier gain compression, harmonic, IMD, and pulsed-RF
Mixer conversion loss, return loss, isolation, and absolute group delay
Trace noise: < 0.006 dB rms at 1 kHz IF bandwidth standard and with option 14
Nominal power: -12 dBm standard, -17 dBm with options 14 and UNL
Frequency resolution: 1 Hz
Phase noise: -50 dBc at 1 kHz offset nominal
Test port noise floor: < -114 dBm 10 Hz IF bandwidth standard
IF bandwidth range: 1 Hz to 40 kHz, nominal
RF connectors 2.4mm male (50ohm)
VGA video output-15-pin mini D-Sub

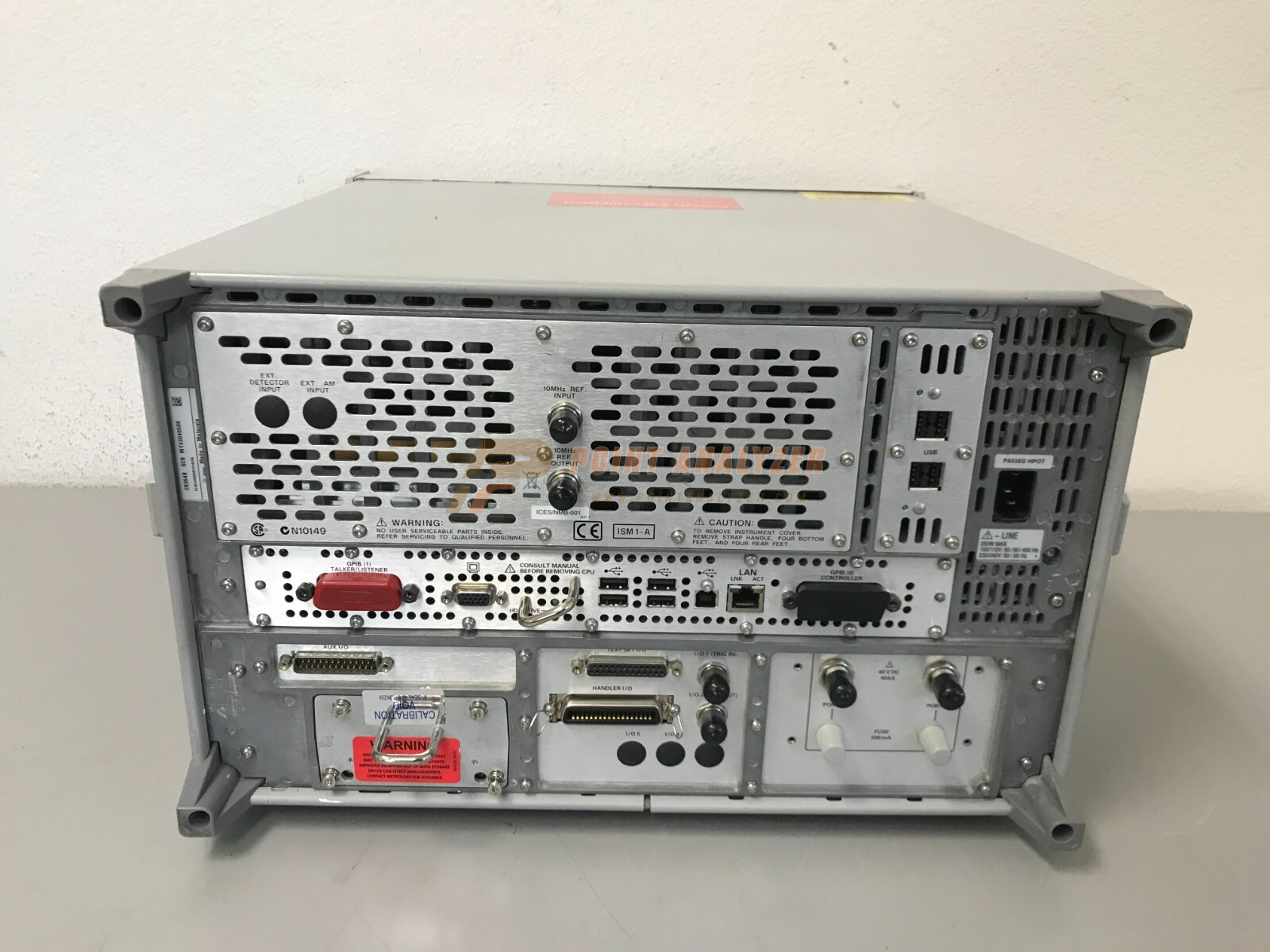

Interfaces:
GPIB-Two ports: dedicated controller and dedicated talker/listener
USB-1 port on front panel and 4 ports on rear panel
LAN-10/100 BaseT Ethernet; 8-pin configuration auto selects
