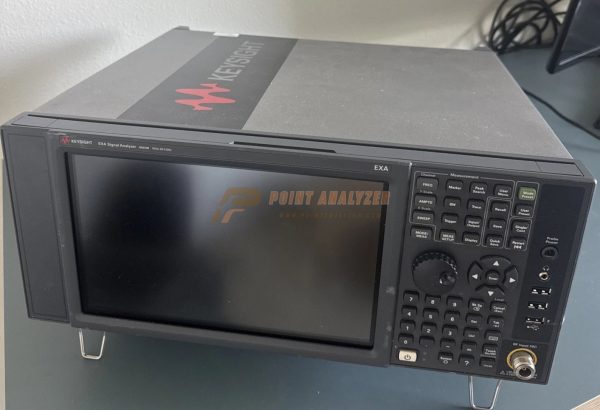

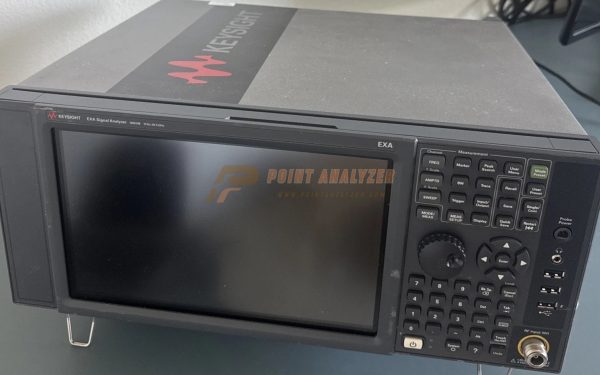

Hot Sale Keysight N9010B 10 Hz – 26.5 GHz EXA Signal Analyzer , Good condition and ready to use, come with 1 year warranty. Only US$15.500.An economy-class, multi-purpose benchtop instrument designed for cost-effective analysis of RF, microwave, and millimeter-wave signals. It is widely used for wireless communication testing, hardware design verification, and high-volume manufacturing.
The Keysight N9010B 10 Hz – 26.5 GHz EXA Signal Analyzer is a high-performance benchtop spectrum analyzer designed for precise measurement and analysis of signals in the frequency range of 10 Hz to 26.5 GHz. With a resolution bandwidth range of 1 Hz to 3 MHz and displayed average noise level of -163 dBm at 1 GHz, this instrument offers exceptional accuracy and sensitivity for a wide range of applications. The product also includes installed options B25 and a video bandwidth range of 1 Hz to 3 MHz, providing users with a versatile and reliable tool for their measurement needs. Made in Malaysia by Keysight, a well-known brand in the industry, the N9010B is a top choice for professionals in signal and spectrum analysis.
- Frequency Range: 10 Hz to 26.5 GHz (with Option 526).
- Standard Analysis Bandwidth: 25 MHz standard, upgradable to 40 MHz (Option B40).
- Displayed Average Noise Level (DANL): Down to -165 dBm at 1 GHz, expandable via an internal preamplifier or Noise Floor Extension (NFE).
- Phase Noise: -109 dBc/Hz at 1 GHz (10 kHz offset).
- Sweep Time Range: 1 ms to 4,000 s (for frequency spans ≥ 10 Hz).
- Resolution Bandwidth (RBW): 1 Hz to 3 MHz (in 10% steps), plus 4, 5, 6, and 8 MHz settings
Leo brooks –
The features are very comprehensive. It can be used for various types of testing. It was shipped very safely and arrived at my office quite quickly. Thank you, seller. Five stars for you.
