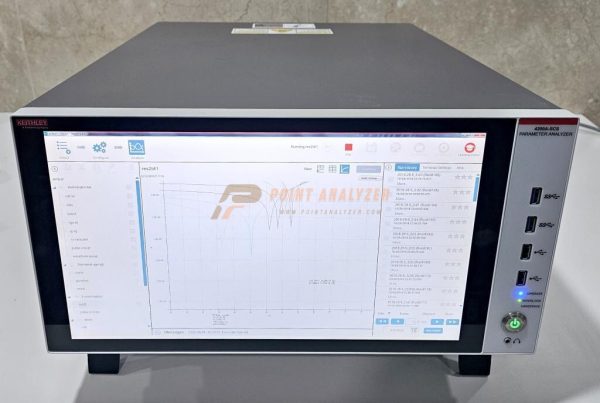

Keithley 4200A-SCS Parameter Analyzer

For sale Keithley 4200A-SCS Parameter Analyzer, Only $ 32.800,00. Good condition and ready to use, come with 1 year warranty. This tool provides synchronized insights into current-voltage (IV), capacitance-voltage (CV), and ultrafast pulsed IV measurements. It is designed primarily to accelerate materials science research, semiconductor device fabrication, and process development.

• DC I-V Range: Sourced and measured from 10 aA to 1 A, and 0.2 µV to 210 V.
• C-V Range: Measures capacitance over a frequency spectrum spanning 1 kHz to 10 MHz with a ±30 V DC bias.
• Pulsed I-V Range: High-speed testing up to ±40 V (±800 mA) with 200 MSa/sec sampling and 5 ns resolution to limit device self-heating.

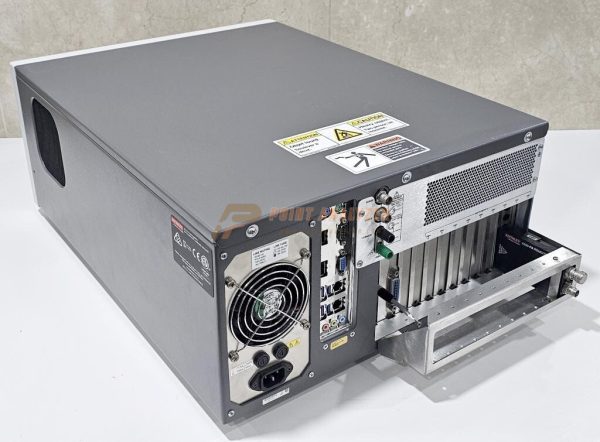

• Modular Chassis: Features a 9-slot mainframe to mix and match hardware.
• Source Measure Units (SMUs): Supports medium-power and high-power bipolar four-quadrant SMUs.

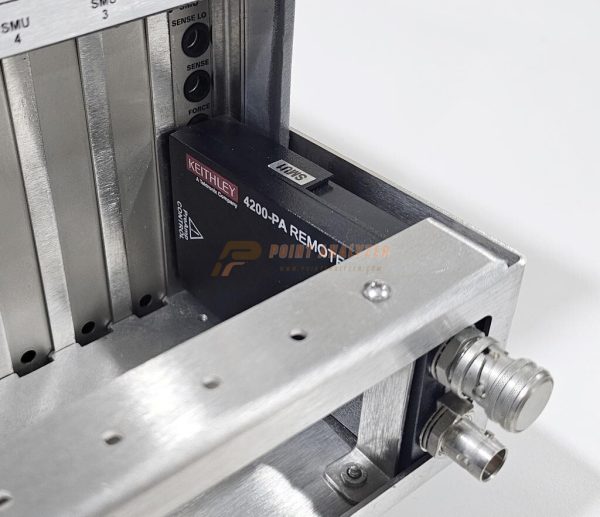

• Pre-Amplifiers: Removable pre-amps optimize performance down to the femtoamp/attoamp range for ultra-low current testing.

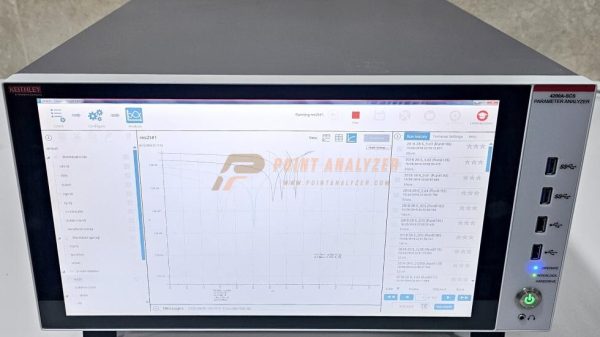

• Integrated Windows PC: Includes a built-in PC with a 15.6-inch multi-touch HD display

• Clarius GUI: Visual software designed for zero-code project construction and parameter analysis.
• Pre-Built Library: Furnished with over 450 ready-to-use application tests for transistors, flash memory, and bioFETs.
• 4200A-CVIV Multi-Switch: Automatically swaps test topologies between I-V and C-V without lifting prober needles or changing physical cables.
