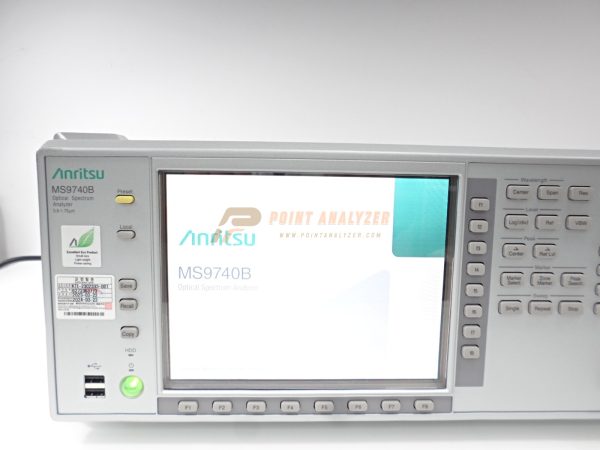

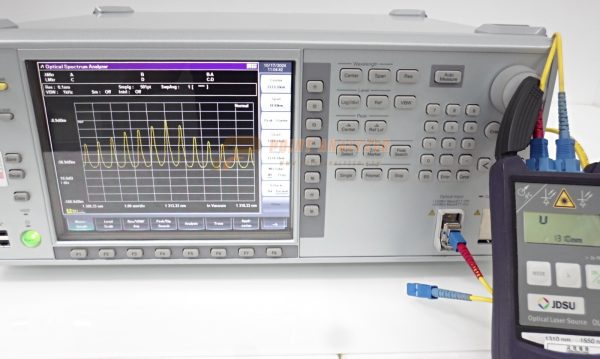

Hot sale Anritsu MS9740B, 001,002,040 Optical Spectrum Analyzer 600nm ~ 1750nm.
The benchtop Optical Spectrum Analyzer MS9740B features wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm. It supports multimode fiber input and is ideal for manufacturing and evaluating 850-nm band VCSEL modules.
As well as keeping the same functions and performance as its predecessor, the MS9740B slashes measurement processing times by up to half*1 while overcoming problems of decreased measurement sensitivity caused by increased processing speed.
Moreover, it retains optical active device (LD-Module, DF-LD, FP-LD, LED, PMD, WDM, Opt Amp, and WDM Filter) measurement menu screens for evaluating devices. It supports all-at-once measurements of key evaluation items, such as optical center wavelength, level, OSNR, spectrum width, etc., and displays these results at one screen.
Options
001 : GPIB Interface
002 : Light Source for Wavelength Calibration
040 : SC Connector
If you buy it now, we will ship it with the fresh calibration certificate
*Conditions : good working condition.
| Feature | Specification |
|---|---|
| Wavelength Range | 600 nm to 1750 nm (supports single-mode & multimode fibers) |
| Sweep Speed | < 0.35 seconds typical (over a 30 nm wavelength span) |
| Minimum Resolution | 30 pm (0.03 nm) |
| Dynamic Range | > 58 dB (at ±0.4 nm from peak wavelength) |
| Optical Sensitivity | Down to -90 dBm |
| Wavelength Accuracy | ±20 pm (1520 nm to 1620 nm range with Option 002 calibration) |
