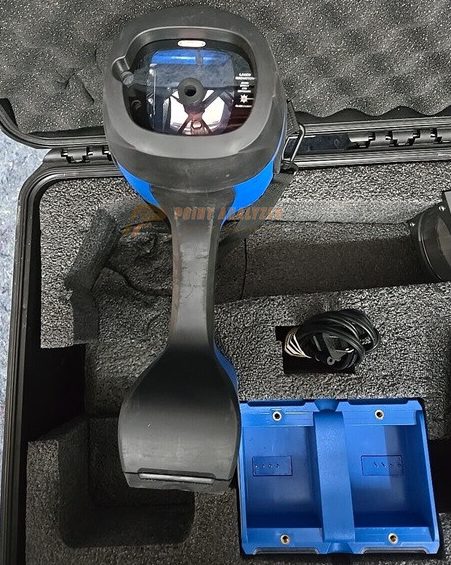

RMLDCS Heath Consultants Remote Methane Leak Detector

RMLDCS Heath Consultants Remote Methane Leak Detector

The RMLD-CS makes it possible to detect leaks without having to travel the entire length of the pipe line, thus creating safer surveys in areas that may be difficult to reach such as busy roadways, yards with dogs, fenced off areas and other hard to access places.

The RMLD-CS includes many new features including:

• Rechargeable and replaceable battery
• Dual battery charger
• Mobile App support
• Ergonomic housing
• Lightweight
• Graphical user interface
• Internal data logging
• WiFi
• GPS
• Bluetooth BLE
• Color camera
• Color display

SPECIFICATIONS:

• Detection Method: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
• Measurement Range: 1 to 50,000 ppm-m
• Sensitivity: 5 ppm-m at distances from 0 to 50 ft (15m)
• Detection Distance: 100ft (30m) nominal. Actual distance may vary due to background type and conditions.
• Beam Size: Conical in shape with a 22” diameter at 100 ft (55 cm at 30 m)
• System Fault Warning: Unique audible pitch and indication on the display.
• Intrinsic Safety: Pending
• Communications: Bluetooth 4.2 BLE, WiFi, USB Dual Mode
• Display: 3.5” LCD
• Operating Temperature: 0° to +122° F (-17° to 50° C)
• Humidity: 5 to 95% RH, non-condensing
• Enclosure ( Inst.): IP54 (Water Splash and Dust Resistant)
• Instrument Weight: ≈ 3 Ibs.
• Battery: Removable, rechargeable, Li-ion battery pack, 12-15 VDC
• Battery Run Time: 8 hours at 32° F
• Battery Charging: External, in-line, 110-240 Vac, 50/60 hertz, international
• Charge Time, Maximum: 2 – 3 hours
• Charging Indicator: Integrated into dual battery charger

Package Includes:

• Carry strap
• Case
• Battery charger
• Power supply
• USB cable
• One battery pack
• Gas calibration test cell
• Li-ion replacement battery
• 90-Days warranty
