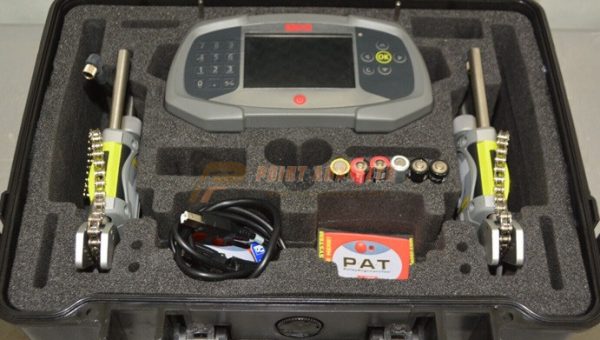

FixturLaser GO Pro Laser Shaft Alignment Tool

On Sale FixturLaser GO Pro Laser Shaft Alignment Tool Only US$3,200. good condition and ready to use.

The Fixturlaser GO Pro has an exceptional power management system with an integrated resume function. It will automatically save all critical data if and when it goes into energy saving mode or if the battery goes flat. It will automatically resume to where you left off, when you turn on the system again – that is our exceptional Resume Function!

FIXTURLASER GO Pro – COMPLETE SYSTEM

DISPLAY UNIT

• Weight: 0.62 kg (1.37 lbs) with batteries
• Dimensions: 205 mm x 116 mm x 56 mm (8.1 in x 4.6 in x 2.2 in)
• Environmental protection: IP 54
• Flash storage memory: 500 MB
• Display: Color TFT-LCD backlit
• Display size: 4” diagonal (84 x 56 mm)
• Power supply: 3 x 1.5V LR-14 (C) Alkaline batteries or 1.2V NiMH HR-14 Rechargeable Nickel Metal Hydride cells
• Operating time: 8 hours continuous use

SENSOR UNITS

• Weight: M4: 200 g (7,1 oz) S4: 188 g (6,6 oz)
• Dimensions: 86 mm x 77 mm x 33 mm (3,4 in x 3,0 in x1,3 in)
• Environmental Protection: IP 65
• Measurement Distance: Up to 5 m (16,4 feet)
• Detector: CCD
• Detector Length: 30 mm (1,2 in )
• Detector Resolution: 1 µm (0,04 mils)
• Measurement Accuracy: 0,3% ± 7 µm (0,3% ± 0,28 mils)

SHAFT BRACKETS

• Shaft diameter: Ø 25 – 175 mm (1in – 6.9in) With extension chain Ø 25 – 450 mm (1in – 18in)
• Rods: 4 pcs 150 mm (5,9 in)

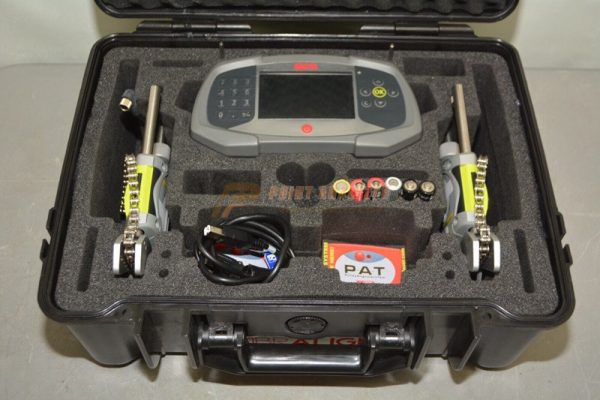

Package Includes:

• Display unit
• Fixturlaser M4
• Fixturlaser S4
• 2 pcs complete V-bracket
• USB cable
• Tape measure 5 m
• 3 pcs battery LR 14 C-cell
• 2 pcs Angled universal tool
• Fixturlaser manual – English version
• 90-Day warranty
