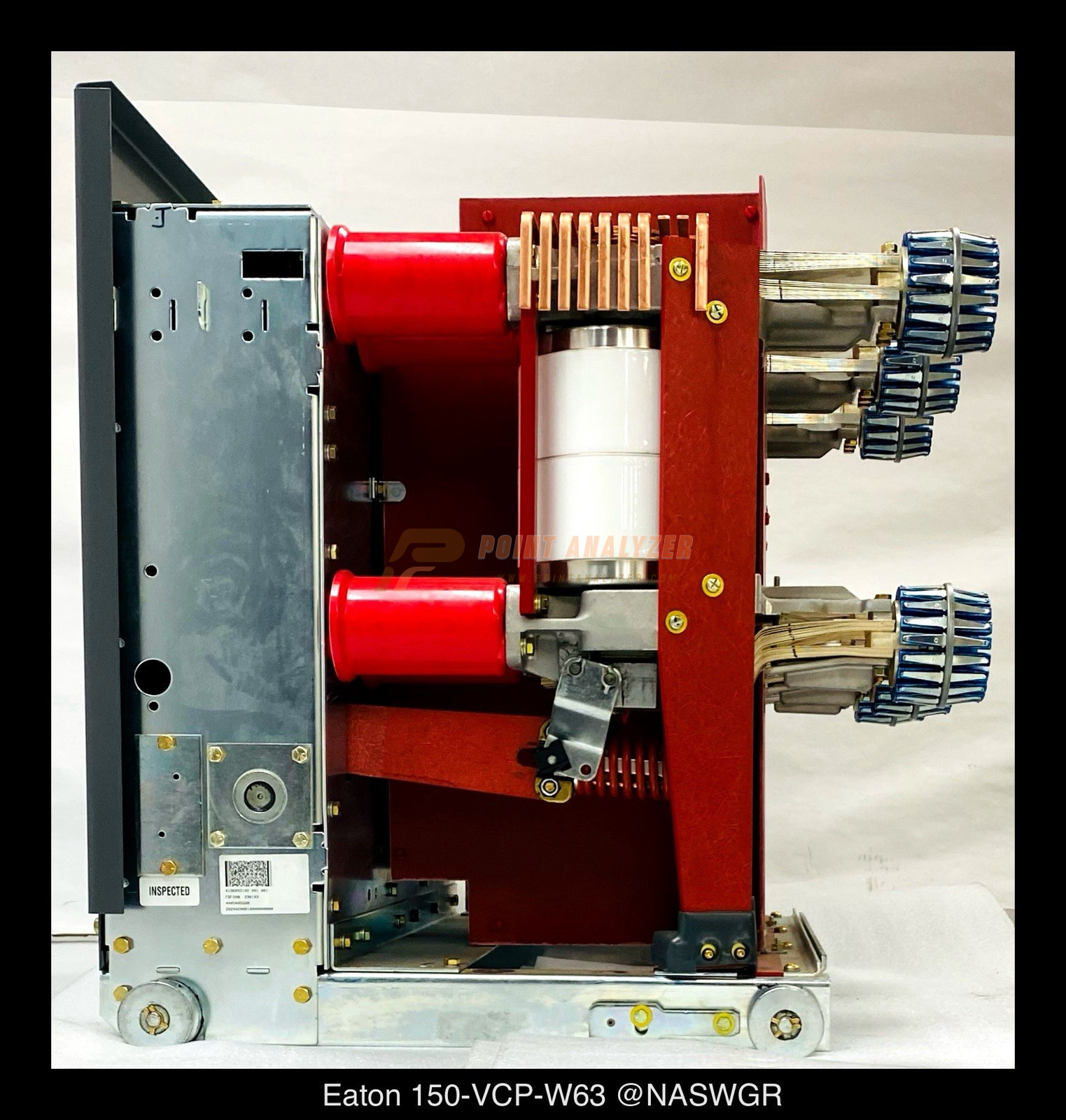

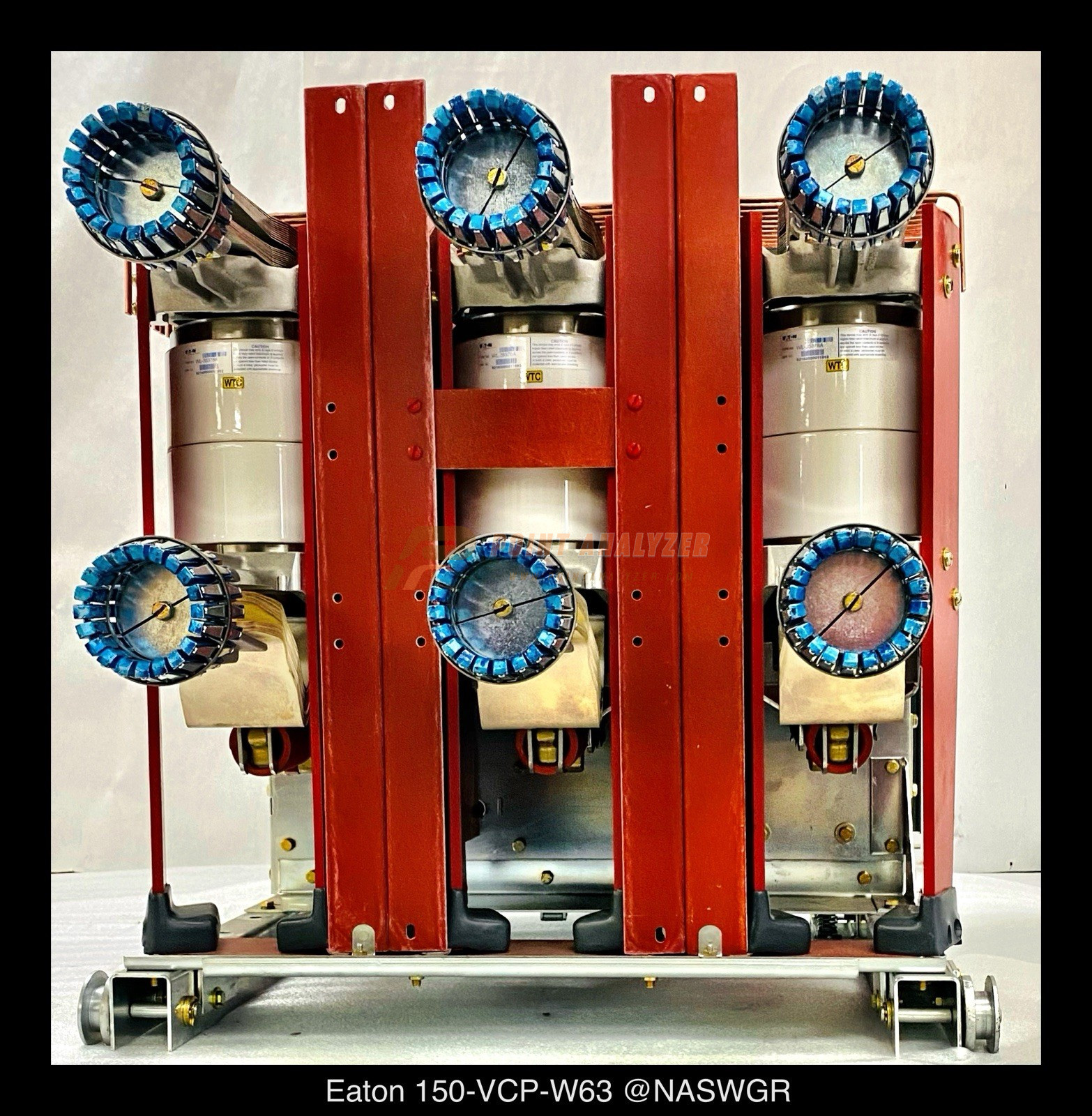

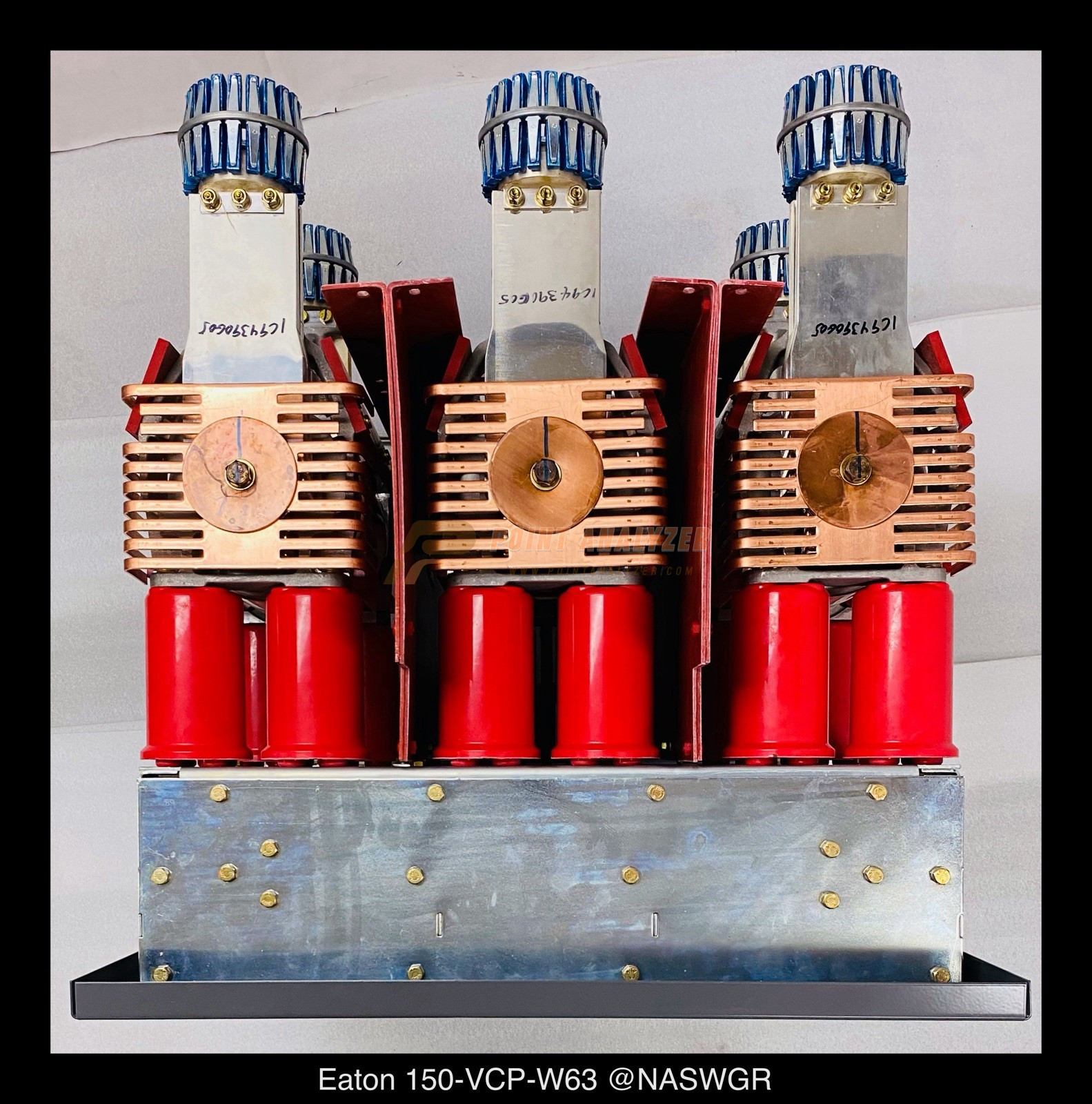

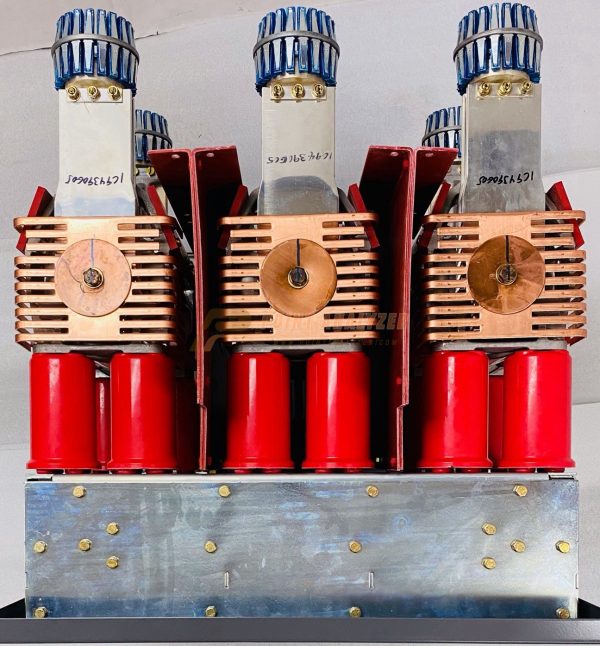

Eaton 150VCP-W63 Vacuum Circuit Breaker – 15kV, 3000 Amp

Up For Sale Eaton 150VCP-W63 Vacuum Circuit Breaker (15kV, 3000 Amp) Good condition and ready to use This product provides premium short circuit and overload protection for critical industrial, utility and commercial power distribution equipment.

• Maximum Voltage Rating: 15 kV RMS
• Continuous Current Rating: 3000 Amperes
• Short-Circuit Interrupting Capacity: 63 kA Symmetrical
• Voltage Range Factor (K-Factor): 1.0
• Rated Frequency: 60 Hz
• Basic Insulation Level (BIL / Impulse Voltage): 95 kV Peak
• Mounting Configuration: Draw-out (electrically operated)
• Closing / Tripping Controls: Typically equipped with a 125vDC/AC motor operator and a 100-140vDC close/trip coil setup.

• Switchgear Compatibility: The unit is explicitly designed to slide into single- or two-high [Eaton VacClad-W Metal-Clad Switchgear assemblies](url:0.5.11, 0.5.19) or legacy Westinghouse/Cutler-Hammer VCP-W structures.
• Patented Pole Unit Architecture: Standard Eaton VCP-W series breakers feature a simplified pole design with up to 89% fewer moving parts compared to traditional configurations. This minimizes friction wear and supports vacuum interrupter field replacements without specialized toolkits.
• Operational Longevity: Built for severe-duty cycles, the integrated vacuum interrupters are rated for up to 30,000+ mechanical operations
