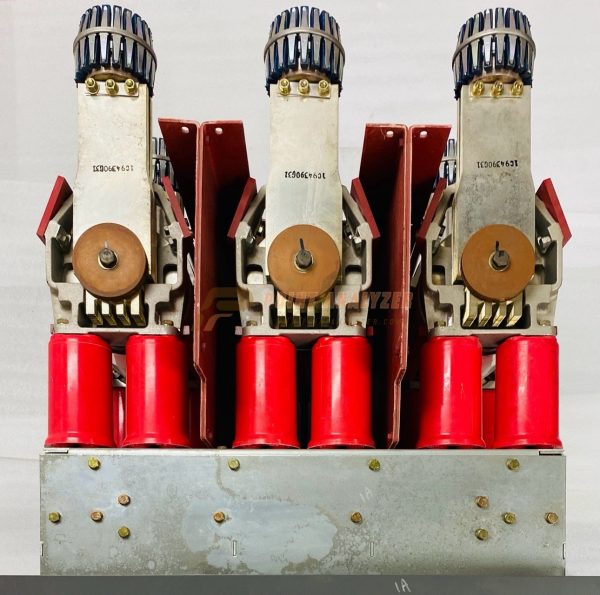

Hot sale Eaton 50VCP-W63 Vacuum Circuit Breaker – 4.76kV, 1200 Amp Good condition and ready to use, Operating at a maximum voltage of 4.76 kV with a continuous current capacity of 1200 Amps, this pull-type circuit breaker relies on highly specialized vacuum interrupter technology to extinguish the electric arc safely and efficiently.
Eaton 50VCP-W63 Vacuum Circuit Breaker – 4.76kV, 1200 Amp Specifications
Â
- Maximum Rated Voltage: 4.76 kV
- Continuous Current Rating: 1200 Amperes
- Short-Circuit Interrupting Rating: 63 kA (Symmetrical)
- Basic Impulse Level (BIL): 60 kV Peak
- Rated Frequency: 60 Hz
- Voltage Range Factor (K-Factor): 1.0
- Mounting Configuration: Draw-Out / Roll-In design
- Standard Control Voltages: Typically equipped with 120 VAC close/trip coils and a 125 VDC/AC charging motor.Â
Applications and Advantages
- System Protection: Effectively isolates high-current faults, including short circuits and overloads, to safeguard downstream assets like generators, heavy-duty motors, and primary distribution lines.Â
- Arc Elimination: Arc quenching occurs entirely inside sealed vacuum bottles, eliminating the need for hazardous arc-stretching gas mechanisms or eco-harmful alternatives like SF₆.
- Mechanical Longevity: Uses high-speed, high-energy spring actuators designed with multiple built-in mechanical interlocks for reliable operational cycling and safe extraction from the switchgear cell
