Hot sale Square D QED 2000 amp switchgear 480277 3p4w Main breaker ERMS RKF36200. New Condition and Ready to use come with 1 year warranty, The main circuit breaker is usually configured with the RKF36200 frame, equipped with a Micrologic trip unit (such as 6.0P) and an ERMS (Energy Reduction Maintenance Setting) switch to reduce the risk of sparks.
Equipment Details

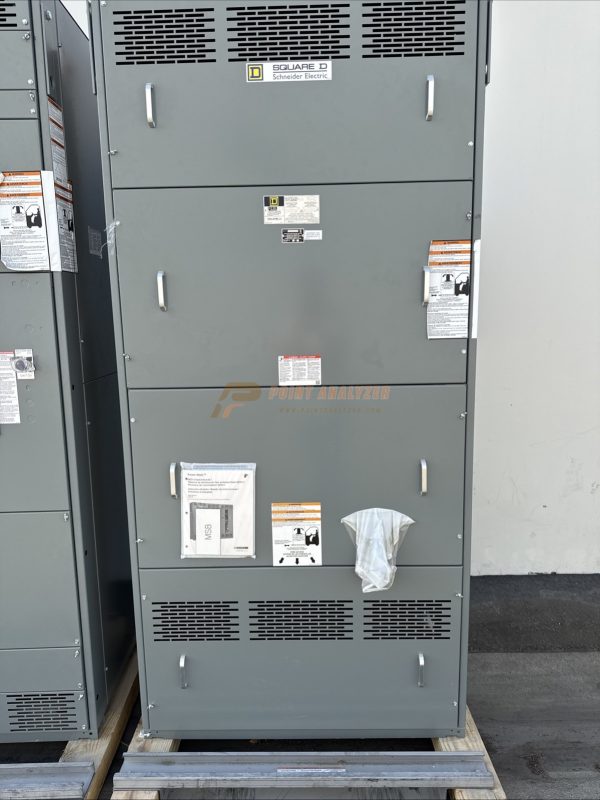

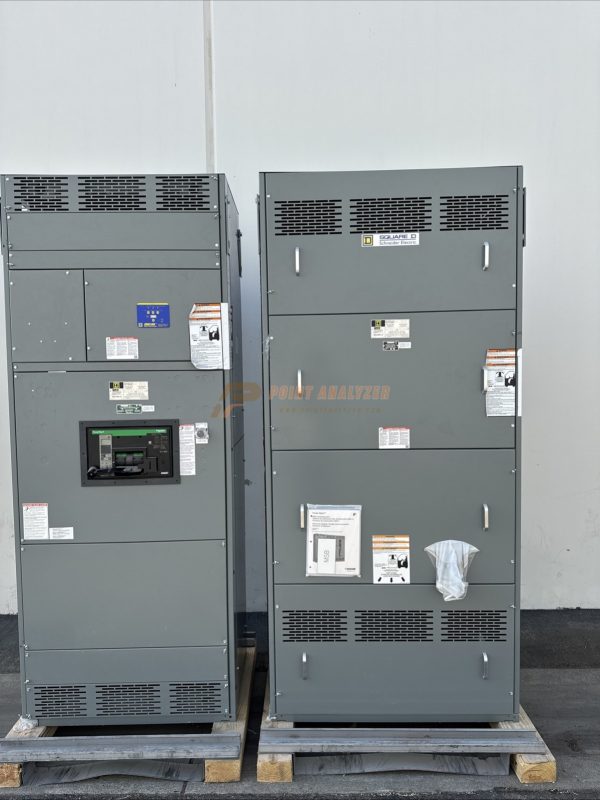

- Switchgear Series: Square D QED-2 LV SwitchboardsÂ
- System Voltage & Configuration: 480/277V AC, 3-Phase, 4-Wire (3P4W)Â
- Amperage Capacity: 2000 Amp Main bus ratingÂ

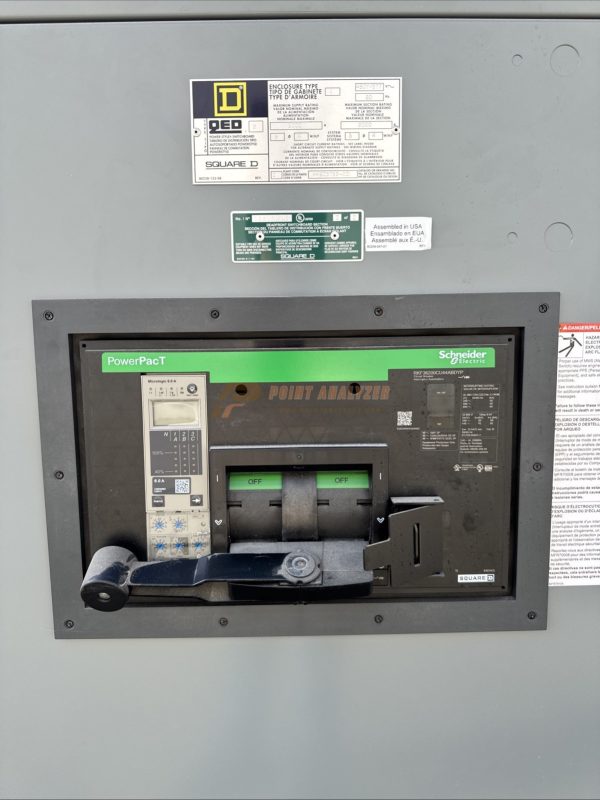

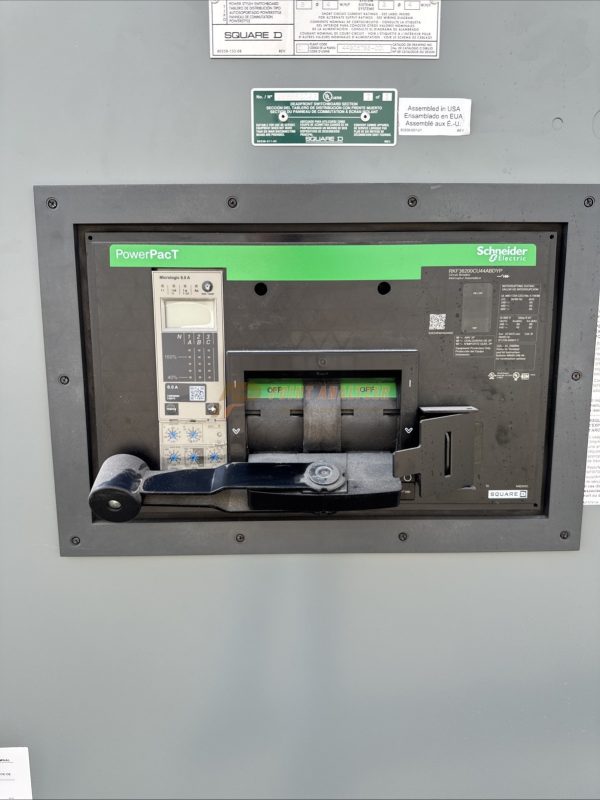

- Main Circuit Breaker: Square D PowerPact R-frame series, typically model RKF36200 (65kA interrupting capacity at 480V)Â
- Trip Unit & Functions: Typically utilizes a Micrologic 6.0 P or A Trip Unit for full LSIG functions (Long Time, Short Time, Instantaneous, Ground Fault)Â
- Safety Technology: ERMS (Energy Reduction Maintenance Settings) uses a dedicated local or remote switch to instantaneously lower the overcurrent trip threshold, drastically lowering incident energy during maintenance and improving arc-flash safety.
