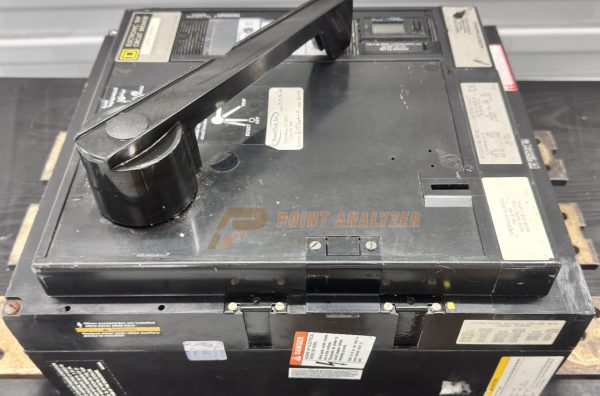

For sale SQUARE D PEF362000LSGZ 2000A 3POLE Circuit Breaker 600VAC, only $ 7.000,00. A high-capacity, heavy-duty industrial molded-circuit breaker (MCCB). Manufactured by Square D (Schneider Electric), this solid-state electronic breaker provides extensive equipment overcurrent, short-circuit, and ground-fault safety parameters.
Square D PEF362000LSGZ Specifications
- Brand / Manufacturer: Square D by Schneider Electric
- Part/Catalog Number: PEF362000LSGZ
- Amperage (Frame/Trip): 2000A
- Poles / Phase: 3-Pole, 3-Phase
- Voltage Rating: 600 VAC maximum
- Mounting Type: Bolt-On / Fixed Mount
- Continuous Rating: 100% Rated
Interrupting Ratings (AIC)
This unit delivers high interrupting capacity across various commercial and industrial power distribution voltages:Â
- 240 VAC: 125 kA
- 480 VAC: 100 kA
- 600 VAC: 65 kAÂ
Advanced Protection & Trip Functions
The unit comes complete with an integrated, non-interchangeable solid-state Micrologic Trip Unit that uses an RP100 rating plug and true RMS sensing. It features LSIG safety protection functions:Â
- L – Long-Time (Overload protection)
- S – Short-Time (Short-circuit delay protection)
- I – Instantaneous (Immediate short-circuit protection)
- G – Ground Fault (Equipment protection from stray current to ground)
