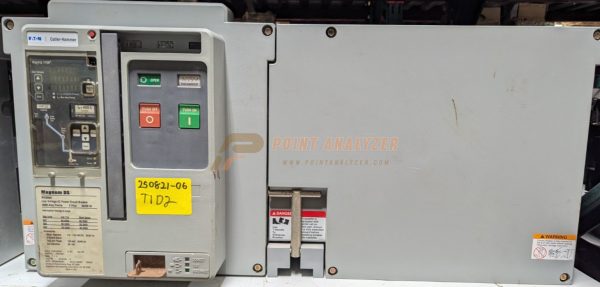

Up For Sale EATON CUTLER-HAMMER MAGNUM DS MDS8403WEA 4000AMP LOW VOLTAGE AC CIRCUIT BREAKER Good Condition and ready to use, This is a 4000 ampere low voltage air circuit breaker from the Magnum DS family. Designed for heavy duty industrial and commercial power distribution. This 3-pole pull-type circuit breaker has a high breaking capacity and is usually equipped with a 110-125V AC/DC motor drive.
Eaton Cutler-Hammer MDS8403WEA Specifications
- Manufacturer: Eaton Cutler-Hammer
- Product Family: Magnum DS (ANSI/UL 1066 Low-Voltage Power Circuit Breaker)
- Catalog/Model Number: MDS8403WEA
- Frame Size / Continuous Current: 4000 Amps
- Voltage Class: Up to 600V AC
- Interrupting Rating: 85 kAIC at 508V AC (varies based on specific configuration)
- Number of Poles: 3
- Mounting / Design: Draw-out (withdrawable) style, bolt-on insulated caseÂ
Applications & Design Features
- Industrial Durability: Designed to meet rigid ANSI C37.13 and C37.16 standards for heavy-duty, low-voltage power distribution.
- Safety Mechanisms: Features integral microprocessor-based tripping systems, fully selective protection, and can be securely padlocked in multiple positions within the switchgear.
- Space-Saving Footprint: The Magnum DS Switchgear accommodates 4000A breakers in a compact 44-inch-wide frame
