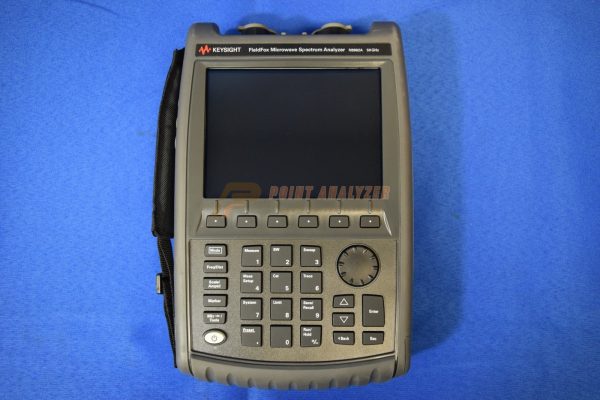

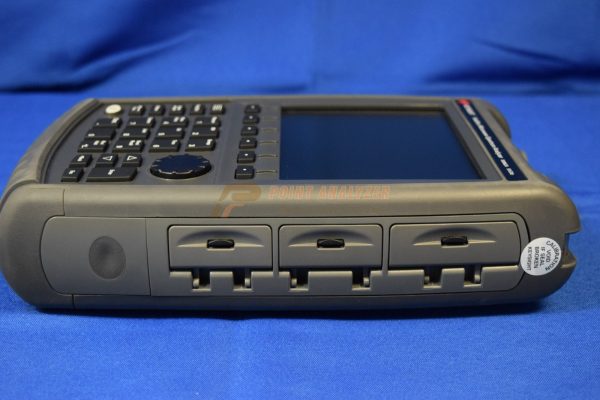

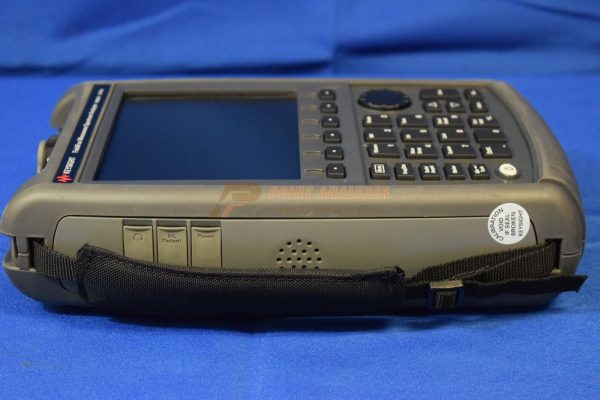

Up For Sale Keysight N9962A 236 350 FieldFox Microwave Spectrum Analyzer 9kHz-50GHz, Unit is in good working order/condition. Only US$20,500. The hardware includes two important premium software options that elevate the unit to a reliable, laboratory-grade, real-time diagnostic device.
Options Installed:
236 – Interference analyzer and spectrogram
350 – Real-time spectrum analyzer (RTSA)
- Frequency Range: 9 kHz to 50 GHz.
- Amplitude Accuracy: ± 0.5 dB instant power-up accuracy with zero warm-up time required.
- Physical Profile: Lightweight at 3.2 kg (7.1 lbs), ruggedized to MIL-PRF-28800F Class 2 compliance for harsh environments.
- Battery Endurance: Up to 3.5 to 4 hours of field operational runtime via a field-replaceable cell.
- Standard Interface: Features dual built-in ports, NMD 2.4 mm (male) connectors, a 6.5-inch anti-reflective display, USB, LAN, and micro SD expansion
Manufacturer Description:
N9962A is a portable battery-operated microwave spectrum analyzer. Optional features include full band tracking generator and preamplifier, interference analyzer, time gating, VSWR, reflection, built-in power meter and GPS receiver.
Carry Precision With You To Ka Band & Beyond
If you maintain or troubleshoot systems that operate at or above Ka-band frequencies, you’ve experienced the hassle of carrying multiple heavy instruments into the field. The N9962A FieldFox is a rugged, dependable handheld analyzer designed to deliver precise, lab-grade measurements. Offering more built-in capabilities than similar analyzers, you can replace the hassle of carrying three or four instruments with a single FieldFox.
Instantly and Precisely Characterize Transmitter Power
The N9962A FieldFox 50 GHz microwave spectrum analyzer provides industry-leading amplitude accuracy of ±0.5 dB at power-up, with no warm-up required. It can can detect more signals in the band of interest with phase noise of -111 dBc/Hz at 10 kHz offset, and measure low-level signals in the presence of high-power transmitters with spur-free dynamic range of 105 dB.
Get Precise Measurements that Agree with Benchtop Results
The spectrum analyzer’s base function is spectrum analysis, and can be configured to include; full-band tracking generator and preamplifier, interference analyzer, VSWR and reflection measurements, built-in power meter, USB power sensor support, GPS receiver and DC bias voltage source.
Rugged Construction
Dust-free design with no fans, no vents extends instrument reliability in harsh environments, water-resistant, MIL-PRF-28800F Class 2 compliant, and MIL-STD-810G, Method 511.5 Procedure I requirements for operation in explosive environments (type tested). Well-suited for: satellite communications, microwave backhaul, Military communications, radar systems, and active and passive device testing.
FieldFox 50 GHz Microwave Spectrum Analyzer
Spectrum analysis frequency range: 9 kHz to 50 GHz
Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup
Capture intermittent signals with 10 MHz gap-free, real-time bandwidth
