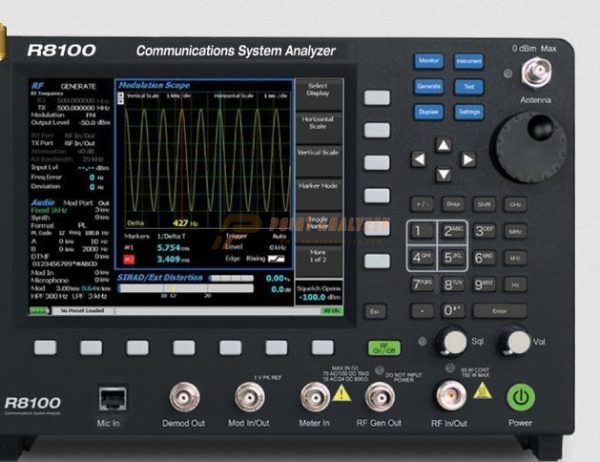

Freedom R8100 Communications System Analyzer

The Following Items Are Included:
Freedom R8100 Communications System Analyzer (BC# -L/T*)
Power Cord
User Manual on CDROM
The R8100 is a premium ultra-portable communications Analyzer. It has all the functionality and test capabilities of the industry standard R8000 communications system analyzer, but also features an internal battery, premier ergonomics and a suite of advanced features that are optional to the R8000.
Includes Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

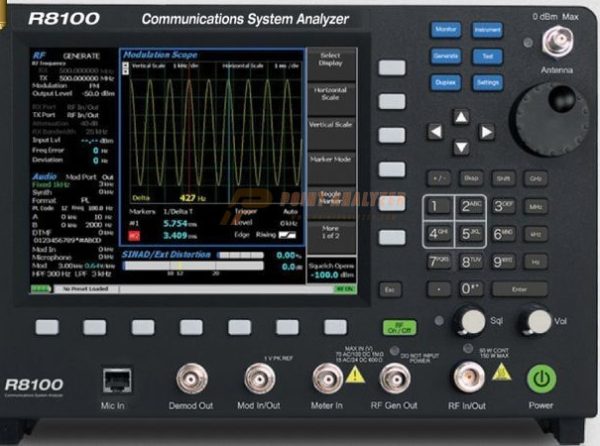

Freedom R8100 Communications System Analyzer
Every R8100 ships with a Lithium Ion battery weighing just one pound (490g). The battery powers the unit for well over 90 minutes, and is field swappable in less than 30 seconds. Just open the cover, remove the battery, and insert another into the side of the unit. While on AC power, the R8100 charges the internal battery and when AC power is removed, the unit seamlessly moves from AC to DC without interruption. The R8100 display shows available battery capacity at all times. Spare batteries and a stand-alone charger can also be purchased for applications requiring extended portability.

ADVANCED FEATURES
Our proprietary “Dual-Display,” showing the carrier and modulation scope on the same screen is included as a standard feature with every R8100, as is a tracking generator and cable fault locator. A feature unique to the R8100 is the ability to select the power meter scale in bar graph mode: choose from 5, 50 or 150W. Finally, the R8100 also offers the ability to display menu selections in French, German and Spanish.
HIGH PERFORMANCE TRACKING GENERATOR
Our Tracking Generator option provides an integrated instrument that sets up the RF Generator in a sweeping mode that is lock stepped with the Spectrum Analyzer. The tracker’s extraordinary dynamic range and response time delivers an invaluable tool for measuring and servicing RF filtering and combining networks like IF filters and Duplexers. The R8100 low Spectrum Analyzer noise floor, FFT processing, and broad selection of display and marker functions assure quick and accurate measurements. Antenna return loss and VSWR measurements can be made with the use of the optional Return Loss Bridge (R8-VSWR).

PREMIER ERGONOMICS
The R8100 features a color-enhanced, high-contrast display with key measurements shown in larger, bright blue font. It’s tuning knob also serves as a data-entry key, allowing the user to minimize the amount of hand movement required to navigate test procedures. It also sports a rugged, foldable metal handle and ear phone jack for use in high-noise environments.

SUPERIOR SPECTRUM ANALYZER
The R8100 comes equipped with a superior spectrum analyzer with a noise floor well below -140 dBm at narrow spans, super-fast signal acquisition, 4 markers (2 standard), and an available variable vertical scale down to 1 dB per division.

EXPANDABLE AND UPGRADABLE
The software-based architecture of the R8100 lets you add software options and upgrades in the field. So if your needs change down the line, simply order the feature or protocol you need and enable it by entering a 16 digit option key using the front panel keypad.

LOW PHASE NOISE AND MONITOR & CONTROL INTERFACE
The M&C consists of proprietary commands as well as support of IEEE standard equipment ID query for automating manufacturing test processes and procedures. This, along with the exceptional phase noise performance of the signal generator, makes it suitable for manufacturing and other high-performance applications, enabling significant reductions in capital costs.
