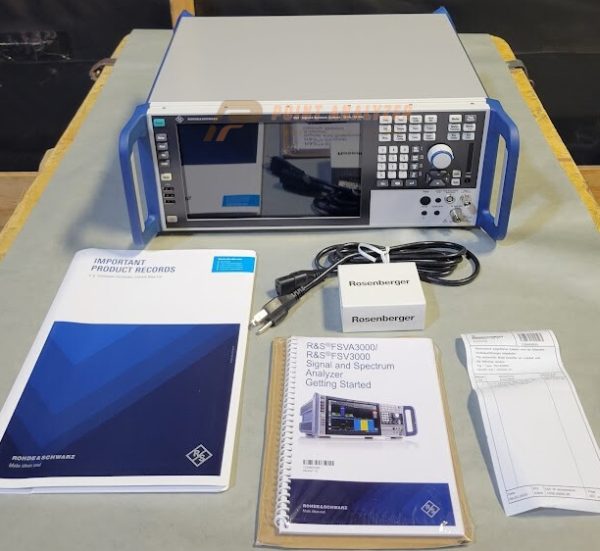

For Sale , Rohde & Schwarz FSV3030 Signal & Spectrum Analyzer 10 Hz – 30 GHz
Description
This listing is for a new item in an open, distressed box.
There was no damage to the items within.

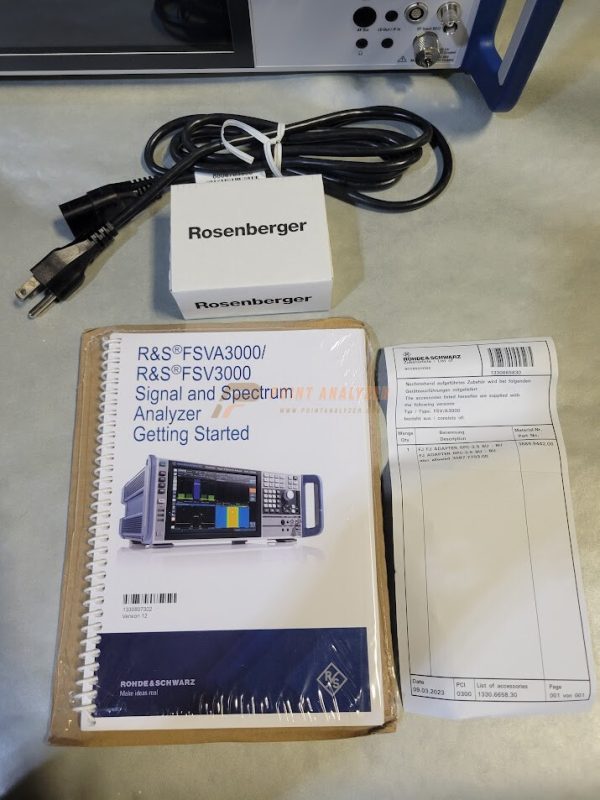

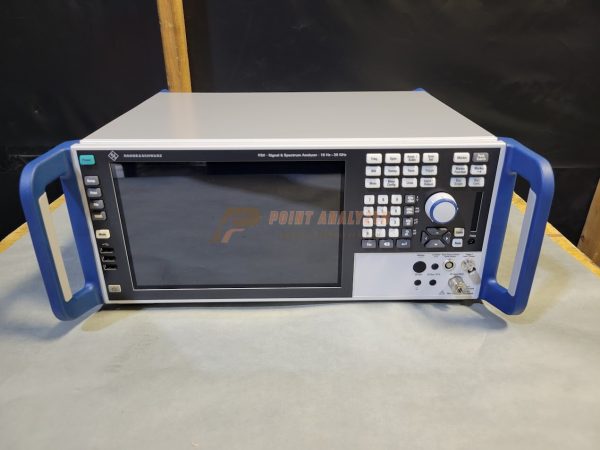

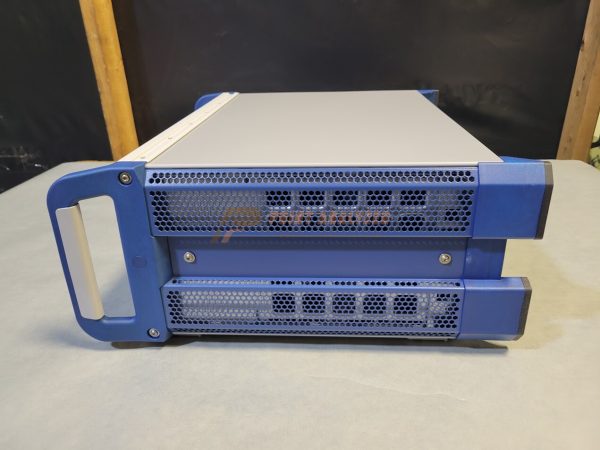

All photos are of the exact item that you will be sent and only what is pictured is included in this sale.
Frequency range: 10 Hz to 30 GHz
Resolution bandwidth (-3 dB): 1 Hz to 10 MHz
Analysis bandwidth: 28 MHz (standard) to 200 MHz (option)
SSB phase noise: -107 dBc (1 Hz) at 10 kHz offset (1 GHz)
TOI (Third-Order Intercept): 18 dBm (typ.) At 1 GHz
DANL: -151 dBm (typ.) At 1 GHz, -165 dBm (typ.) At 1 GHz with PreAmp (optional)
Measurement application for analog and digital signal analysis incl. 5G NR
Maximum input power: 30 dBm
Marker resolution: 1 Hz

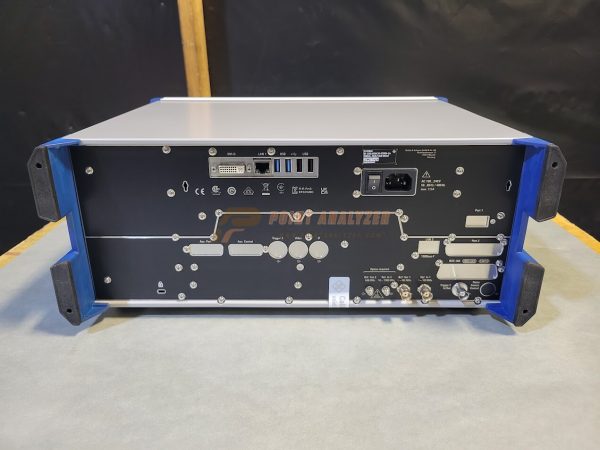

Interfaces: 5x USB 2.0 type A, 2x USB 3.0 type A, 2x reference input / output, external trigger, LAN 10/100 / 1000BASE-T, DVI for external monitor, optional: GPIB, 10 Gbit / s LAN, USB 3.0 type B, Display port for external monitor
Power supply: 100 to 240 V AC, 50/60 and 400 Hz
Dimensions: W 462 × H 197 x D 417 mm
Weight: 13.8 kg
