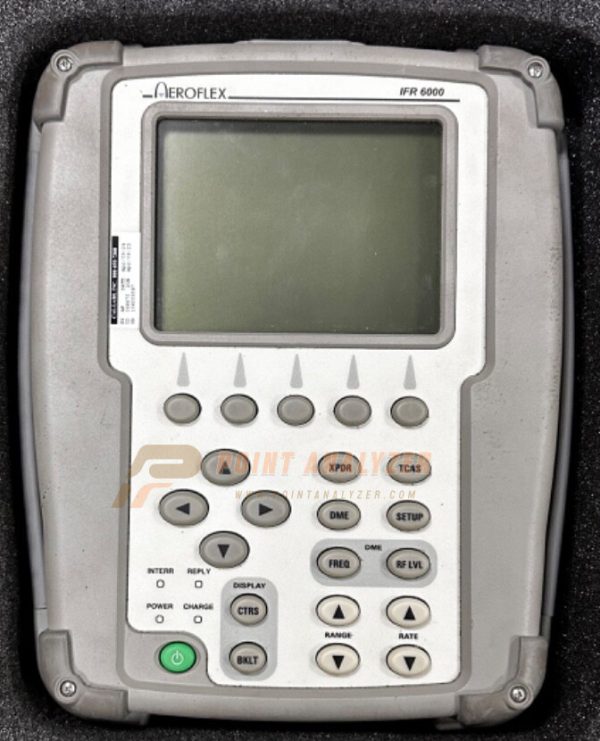

Up For Sale IFR 6000 ATC, DME, TCAS, ADSB, test set Calibration Good condition and ready tu use, industry standard precision flight path test device designed to verify ATC transponders, DME, TCAS, and ADS-B systems.
RF Output & Signal Generator
- Transponder Mode Frequency: 1030 MHz with an accuracy of ±10 kHz.
- DME Mode Frequency: 962 to 1213 MHz (reply frequencies) with an accuracy of ±10 kHz.
- TCAS Mode Frequency: 1090 MHz with an accuracy of ±10 kHz.
- UAT Mode Frequency: 978 MHz with an accuracy of ±10 kHz.
- Antenna Port Output Level: -67 to -2 dBm (Resolution: 0.5 dB, Accuracy: ±2 dB).
- RF I/O Port Output Level: -115 to -47 dBm (Resolution: 0.5 dB, Accuracy: ±1 dB down to -95 dBm).
Measurement & Pulse Capabilities
- UUT Power Range (ERP/Direct): Measures peak pulse power from +47 to +64 dBm with a resolution of 0.1 dB.
- UUT Frequency Measurement: Covers 1025.00 to 1150.00 MHz with an accuracy of ±20 kHz.
- DME Reply Pulse Width: 3.5 μs (±0.5 μs).
- DME Reply Pulse Spacing: 12 μs for X Channel; 30 μs for Y Channel (±100 ns).
Physical & Environmental
- Weight: 8 lbs (3.6 kg) for the test set unit only; 34 lbs (15.4 kg) complete in shipping case.
- Dimensions: 11.2” H x 9.1” W x 2.7” D (28.4 cm x 23.1 cm x 6.8 cm).
- Battery Life: Internal Lithium-Ion pack providing >6 hours of typical field operation.
- Operating Temperature: -20°C to 55°C (-4°F to 131°F).
- Ruggedness Certifications: MIL-PRF-28800F Class 2, MIL-STD-810F, UL, EN, and CE.
