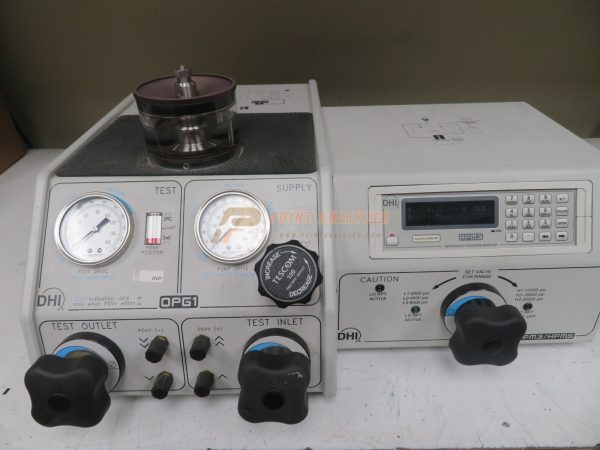

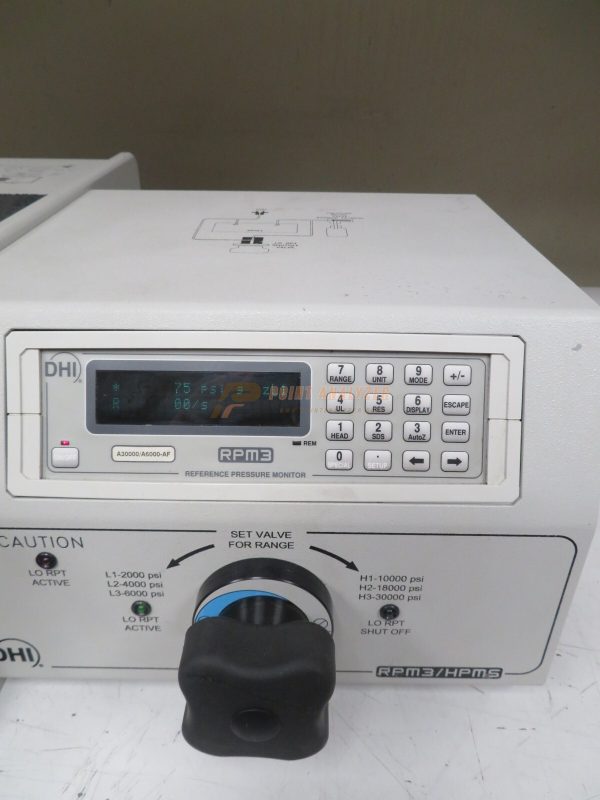

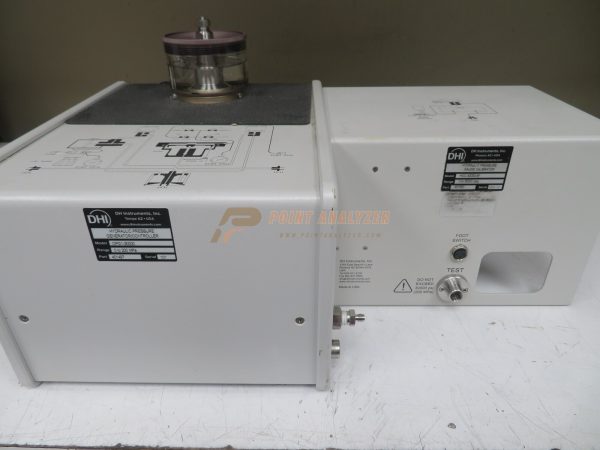

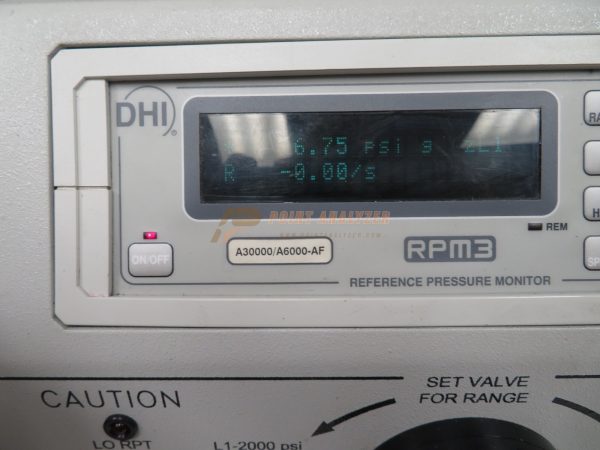

On Sale DHI DH Instruments Fluke RPM3/HPMS A30000/A6000-AF Pressure Calibrator Good condition and ready to use,
Power Requirements: 85 to 264 VAC, 47 to 440 Hz, 18 VA max consumption
Operating Temperature Range: 15 to 45 °C
Storage Temperature Range: -20 to 70 °C
Weight: RPM3: 3.5 kg (7.7 lb)
HPMS: 5.8 kg (12.8 lb)
RPM3/HPMS: 9.3 kg (20.5 lb)
Dimensions: 21.5 cm H x 29 cm W x 38 cm D
(8.5 in. x 11.5 in. x 15.0 in.) approx.
Microprocessor: Motorola 68302, 16 MHz
Communication Ports: RS-232 (COM1), RS-232 (COM2), IEEE-488
Pressure Ranges: 2 000 psi (14 MPa), 4 000 psi (28 MPa), 6 000 psi
(42 MPa), 10 000 psi (70 MPa), 18 000 psi (126 MPa),
30 000 psi (200 MPa) gauge and absolute.
Operating Medium: Oil (Di-ethyl hexyl sebacate)
Pressure Connections:
Test port (RPT > 10 000 psi): DH500 (gland and collar type for coned and left hand threaded tube, equivalent to AE F250C, HIP HF4, etc.)
Pressure Limits:
Maximum working pressure: 30 000 psi (214 MPa)
Maximum pressure w/o damage: 37 000 psi (255 MPa)
