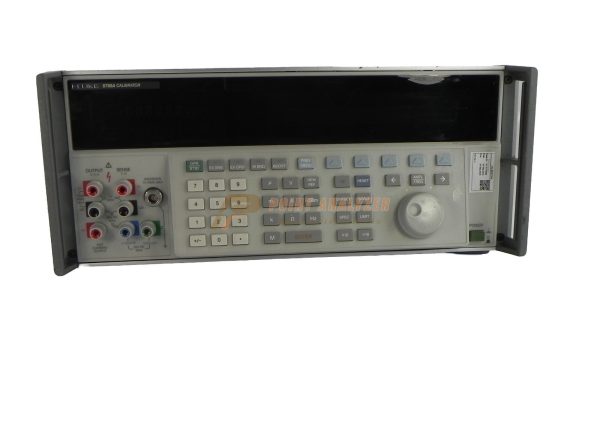

Hot Sale Fluke 5700A Multifunction Calibrator includes RF Terminato, only $8.800,00.
Fluke 5700A Multifunction Calibrator Specifications
| Function | Range Capabilities | Best 1-Year Absolute Uncertainty |
|---|---|---|
| DC Voltage | 0 to ±1100 V | ±7.0 ppm of setting |
| AC Voltage | 0.22 μV to 1100 V (10 Hz to 1 MHz) |
±75.0 ppm of setting |
| Resistance | 0 to 100 MΩ (18 discrete values in ×1 and ×1.9) |
±12.0 ppm |
| DC Current | 0 to ±2.2 A | ±50.0 ppm of setting |
| AC Current | 9 μA to 2.2 A (10 Hz to 10 kHz) |
±140.0 ppm of setting |
Option 5700A-03 Wideband Details
- Purpose: This module provides a high-accuracy, low-noise alternating voltage source engineered specifically for calibrating RF voltmeters. [1]
- Frequency Range: It expands the capabilities of the unit to cover a frequency span from 10 Hz up to 30 MHz. [1]
- RF Accessories: Because this option outputs signal through a low-loss Type-N coaxial connector, Fluke bundles it with a standard 1-meter 50 Ω coaxial cable and a matching 50 Ω feedthrough terminator. [1, 2]
- Factory Calibration: The wideband module is explicitly calibrated from the factory to the end of this specific standard-equipment output cable and terminator bundle to maintain its strict flatness specifications.
Hardware & System Specifications
- Artifact Calibration: Full internal optimization of all ranges requires only three external primary references: a 10 V DC standard, a 1 Ω resistor, and a 10 kΩ resistor. The automated sequence takes less than an hour.Â
- System Interfacing: Standard connectivity includes IEEE-488 (GPIB) and RS-232 serial interfaces. It features native analog controls to drive external power boosters like the Fluke 5725A.Â
- Environment Limits: Operating temperature ranges from 0°C to 50°C, with full-accuracy calibration specifications guaranteed between 15°C to 35°C.
