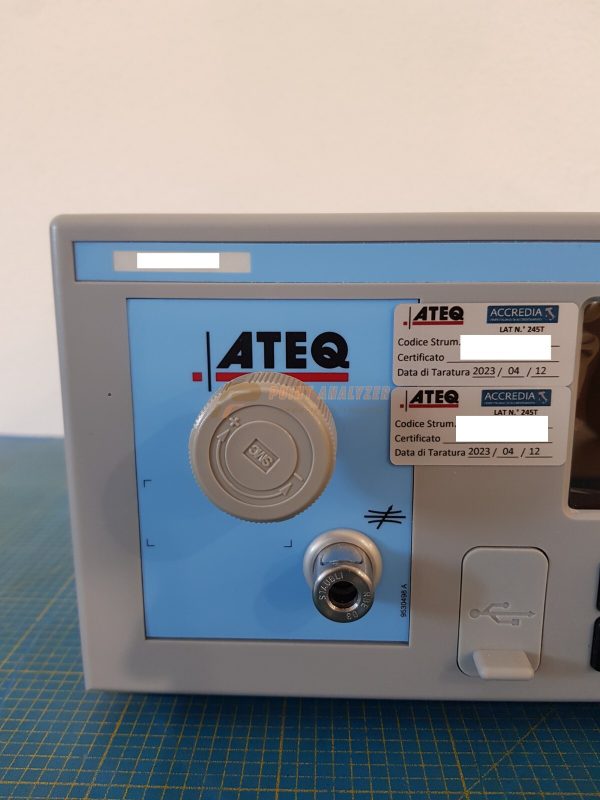

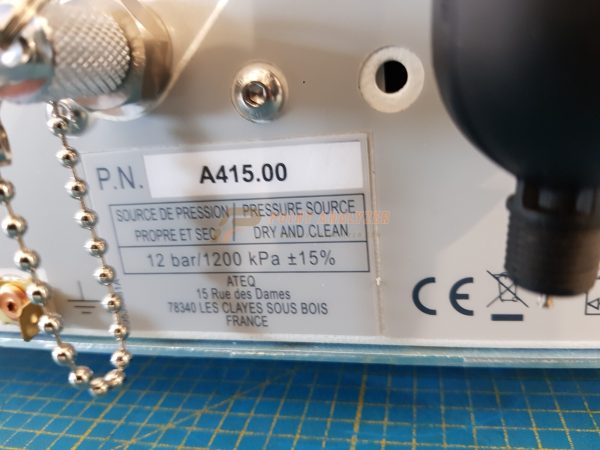

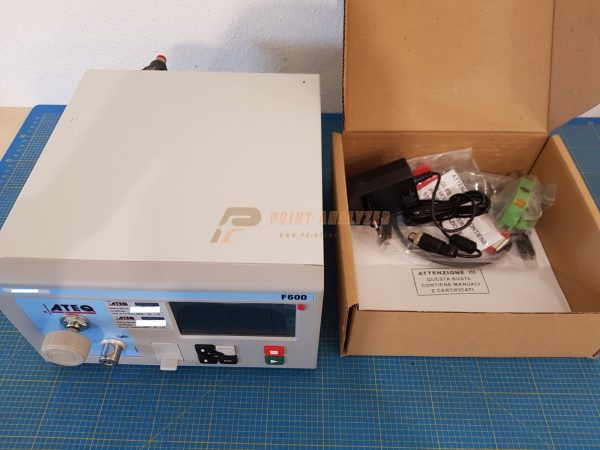

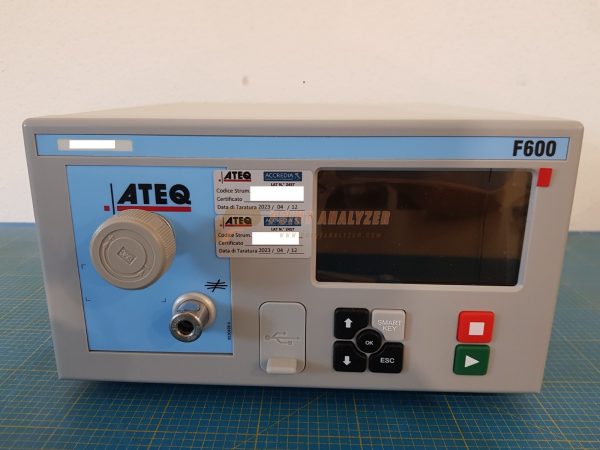

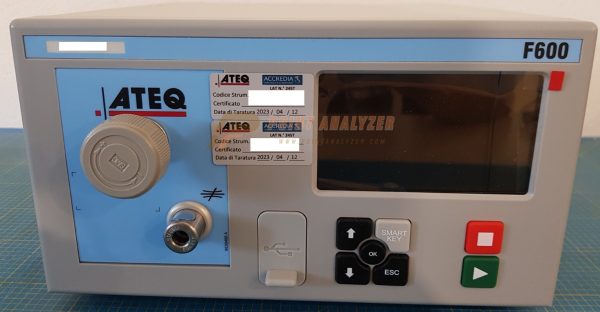

ATEQ F600 leak detector

Up For Sale ATEQ F600 leak detector Good Condition and Ready To Use, This unit is designed for high accuracy and reliable quality control testing in various automotive, medical, household appliances and food packaging industries.

• Measurement Principle: The system uses the absolute pressure decay method (or precise pressure drop method) to calculate the airtightness of a component.
• How It Works: The instrument fills the targeted test part with compressed air up to a specified pressure limit, allows the pressure to stabilize, and monitors the pressure drop over a pre-determined test window. Any drop in pressure signifies a structural leak.

• Program Capacity: It can save and memorize up to 128 distinct test programs for multi-product lines.
• Pressure Range Options: Standard mechanical or electronic regulators manage air control from vacuum up to 10 or 20 bar. A specialized high-pressure variation, the ATEQ F600 HP, is available for applications requiring testing up to 200 bar.
• Test Units: Outputs and measurements are delivered in flow units (e.g., sccm, mm³/s, cm³/min, ml/min) or pressure metrics (Δ P or Δ P/Δ t).
• Interface: Built with a high-contrast color graphics screen and highly intuitive menus.
• Data & Communication Ports: Comes equipped with USB Master (for USB flash drives to export configurations, parameters, and test logs) and USB Slave (for direct PC connections using supervision software like WinAteq). It natively supports fieldbus network interfaces like Modbus, Profibus, and EtherNet/IP
