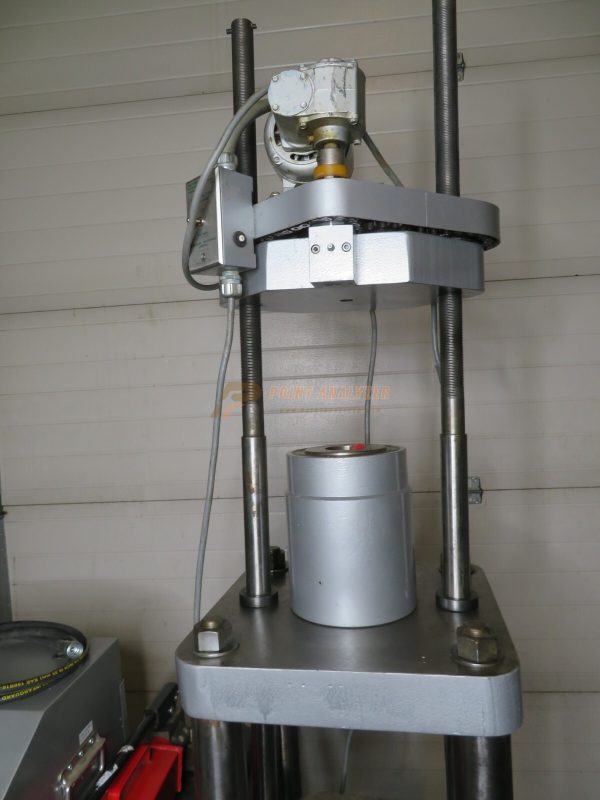

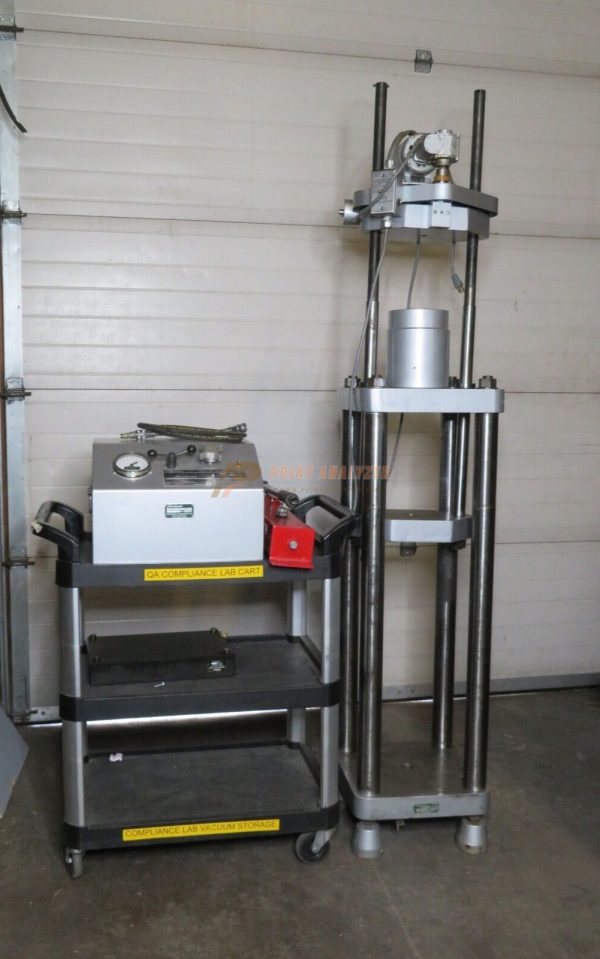

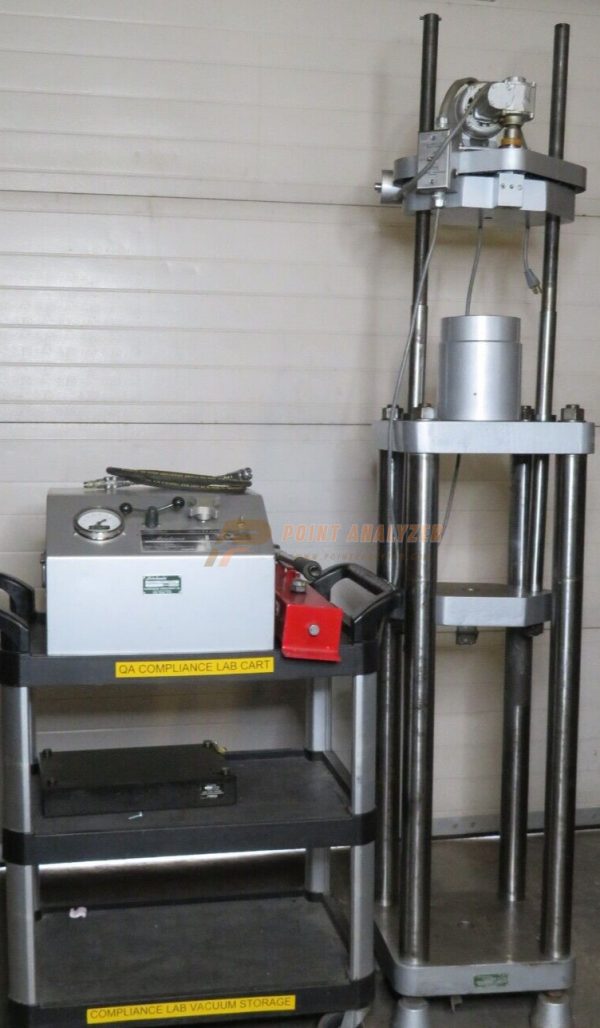

Morehouse UCM-100 Universal Force Calibration Machine 100K ASTM E74, ISO 376 Good Condition and ready to use.
- Force Capacity: 100,000 lbf (approx. 450 kN / 50 tons).
- System Accuracy: Reaches expanded uncertainties better than 0.02% of the applied force (dependent on the reference standards used).
- Operational Modes: Calibrates instruments in both tension and compression.

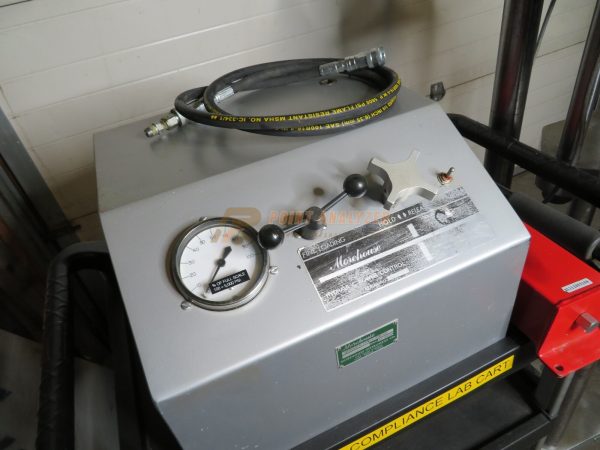

- Hydraulic System: Operates via a two-speed precision hand pump or a powered hydraulic power control (HPC) pack for ultra-fine load adjustments
Includes hand pump and power pack/ powered hydraulic pump/pressure gage. Cart not included.
Cylinder was professionally rebuilt using OEM components. Tested to full range.
Morehouse Universal Calibrating Machines (UCM) are an easy to use, cost-effective, hydraulic force calibration system that lasts for generations. UCMs built in the 1950s are still operating today! The UCM can be used to calibrate both tension and compression instruments in accordance with ASTM E74, ISO 376, and other internationally recognized force standards.
The operator can replicate how the force instruments are used in the field by using different setups for tension and compression, and proper adapters recommended by several standards, including ISO 376.
