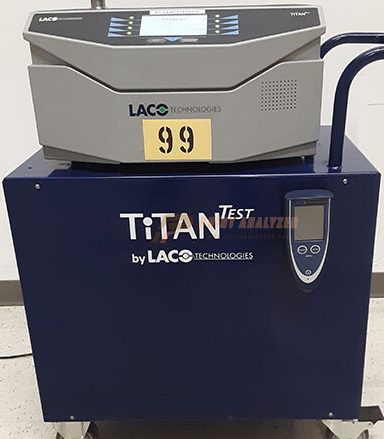

Laco Titan Test M Series Helium Leak Detector

Up For Sale Laco Titan Test M Series Helium Leak Detector. Good condition and ready to use, This machine is specifically designed for maintenance, service, and heavy-duty field applications. Although officially discontinued and replaced by the TITAN VERSA series, this machine is still widely used in the used market and in existing facility operations.

• Ultimate Sensitivity: Capable of detecting minimum leak rates down to <5 × 10⁻¹² atm⋅cc/sec in ultra-fine vacuum test mode.
• Dual Filament Reliability: Equipped with long-life, yttria-coated iridium dual filaments that offer redundancy if one burns out during field operations.
• High Inlet Pressure Mode: Features a robust gross leak mode operating up to 25 mbar (19 Torr), allowing testing to begin on challenging or outgassing parts sooner without damaging the mass spectrometer.
• Auto-Calibration: Built-in helium calibrated leak standard that supports automated internal tuning across gross, fine, and ultra-vacuum modes.
• Vacuum Pump Technology: Available in both wet (oil-sealed rotary vane) and dry (scroll pump) backing options depending on cleanroom compatibility requirements.

Test Modes:Vacuum (gross, fine, ultra) and sniffing
•Vacuum Test Mode:High inlet pressure test mode (25
mbar—19 Torr) for challenging leak detection
applications.
•Auto-Calibration:Calibration in three test modes for
best calibration accuracy—built-in helium calibrated
leak standard
•Helium Background Suppression
•Display:Large graphical display with easy to navigate
menus and leak rate trend graphs
•Alarm: Audio alarm with multiple sound options
•Filaments:Long-life yttria coated iridium dual filaments
120V, 60Hz
