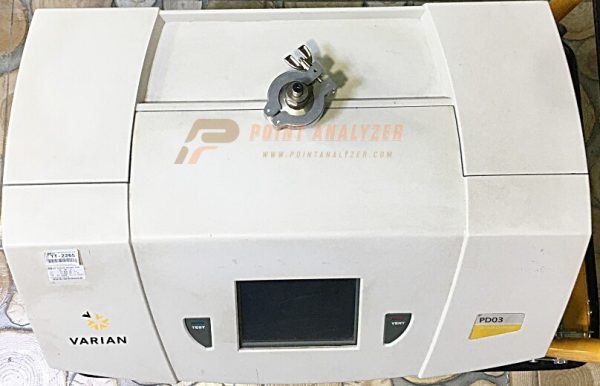

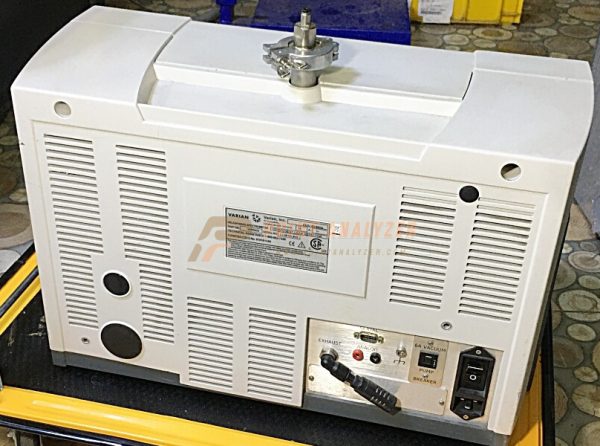

Hot sale Agilent VARIAN PD03, VSPD032 Leak Detector Good Condition and Ready To use, premium portable mass spectrometer leak detector configured with internal dry vacuum pump combination
Agilent VARIAN PD03, VSPD032 Leak Detector Specifications
- Tracer Gas: Helium mass spectrometry.
- Model Designation: VSPD032 (VS series portable unit wired for 220V operation).
- Primary Backing Pump: Enclosed oil-free dry scroll and diaphragm combination pump.
- Pumping Speed: 3 m³/hour integrated primary backing speed.
- Maximum Test Port Pressure: 13 mbar, allowing for early large-leak detection.
- Minimum Detectable Leak (MDL): 5 x 10⁻¹¹ mbar·L/s under optimal conditions.
Operational Features
- Contamination-Free Testing: The completely dry internal backing pump setup completely eliminates the risk of oil backstreaming or hydrocarbon contamination in your test parts.
- Automated Functions: Fully automated system start-up, tuning, and calibration routines maximize user productivity and consistency.
- Advanced Interface: Features a highly responsive graphical color touch screen interface with interactive data charting and visual leak rate trends.
- Safe Shutdown Sequence: Built-in automated power-off isolation cycles actively keep the spectrometer tube under deep vacuum while protecting the high-speed turbomolecular pump as it spins down.
