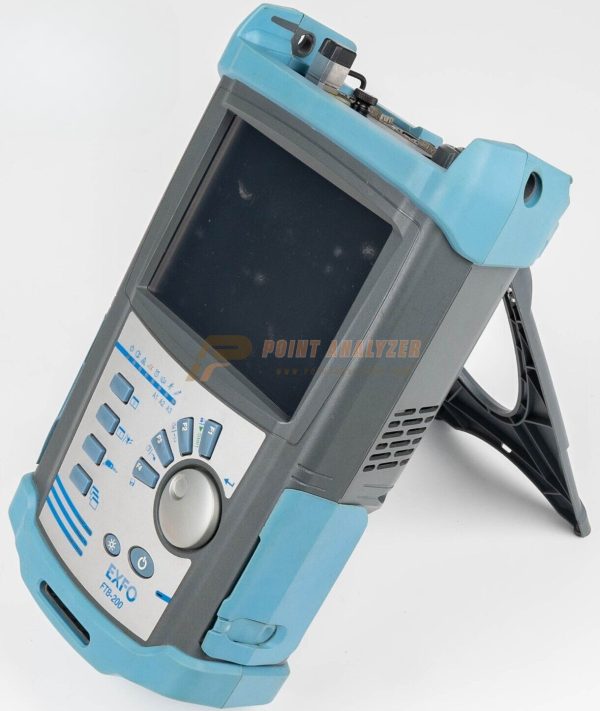

EXFO FTB 200 S1 With FTB-7200D-23B

Hot Sale EXFO FTB 200 S1 With FTB-7200D-23B Only 2.500.00.

Installed Options (FTB-8510B)
SK-1000M-E – Ethernet 1000Base-T (Electrical) Interface
SK-1000M-O – Ethernet 1000Base-X (Optical) Interface
SK-100M-E-AP – Ethernet 100Base-T (Electrical) Interface On All Ports
SK-10M-E-AP – Ethernet 10Base-T (Electrical) Interface On All Ports

Product Features:
FTB-200 is a compact, modular platform designed for multilayer and multi-medium testing. Designed for metro/access and FTTx networks. Whether you are testing triple-wavelength insertion loss at the CO or testing data ntegrity at the core, the FTB-200 has the power, speed and modularity that you need in the field. Touchscreen resistant to shock, water, dust and common chemicals.

Highlights:
Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, plus third-party applications
Like a PC: Intel processor with Windows Embedded Standard operating system
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
GPS capabilities: accurate coordinates under the same conditions as a regular satellite GPS receiver

Exfo FTB-7200D-023B Access OTDR
EXFO’s FTB-7200D-023B is an optical time-domain reflectometer that is optimized for both single and multimode access network test applications along with LAN and WAN characterization.

EXFO’s FTB-200D-023B OTDRs help you boost test productivity for inside-plant applications. Their exceptional 1m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office’s fiber distribution panel. This feature also comes in handy in metro, access and FTTH network applications, where events are usually closely spaced.

Highlights:
Dynamic range of up to 36 dB
Event dead zone as low as 1 meter
Combined singlemode/multimode wavelengths
Integrated tool: combines a visual fault locator, inspection probe, broadband power meter and a CW source mode
EF-Ready: use with external launch mode conditioner for EF-compliant, multimode results
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

Applications:
Access network testing
LAN/WAN characterization

EXFO FTB-8510B Packet Blazer
EXFO FTB-8510B Packet Blazer brings performance assurance to Ethernet-based services. Its wide range of test functionalities provides all the necessary measurement tools for verifying service-level agreements (SLA) between service providers and their customers. This module is the ideal tool for turning-up and troubleshooting Ethernet-based mobile backhaul, commercial and wholesale services. Combined with its rack-mounted remote test unit counterpart, the RTU-310 and the FTB-800 NetBlazer Series, the FTB-8510B simplifies and speeds up the deployment of Ethernet services.

Highlights:
Complete EtherSAM (ITU-T Y.1564) test suite, the new standard for turning up and troubleshooting mobile backhaul and business Ethernet services
Throughput, back-to-back, latency and frame loss measurements as per RFC 2544 (bidirectional results)
Multistream generation and analysis, allowing quality of service (QoS) verifi cation through VLAN and ToS/DSCP prioritization testing
True wire-speed, stateful TCP throughput based on RFC 6349 for undisputable SLA enforcement for Ethernet services
IPTV testing and analysis
Up to 1 Gbit/s full-line-rate data capturing and decoding
Complete Carrier Ethernet services portfolio: PBB-TE (MAC-in-MAC), MPLS, MPLS-TP, 802.3ah and IPv4/IPv6
1x and 2x Fibre Channel testing
EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

Specifications
Exfo FTB-200
Temperature
Operating 0 °C to 50 °C (32 °F to 122 °F)
Storage –40 °C to 60 °C (–40 °F to 140 °F)
Relative Humidity 0 % to 95 % non-condensing
Size (H x W x D) 322 mm x 197 mm x 109 mm (12 11/16 in x 7 ¾ in x 4 5/16 in)
Weight 2.1 kg (4.6 lb)
Vibration <1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical Shock <760 mm on six sides and eight main edges (compliant to GR-196-CORE)
Display Touchscreen, color, 640 x 480 TFT, 163 mm (6.5 in)

Interfaces
Two USB 2.0 ports
RJ-45 LAN 10/100/1000 Mbit/s
Fiber inspection probe connector port (video)
Built-in Bluetooth and Wi-Fi (hardware option)

Storage 8 GB internal memory (flash)
Battery Rechargeable lithium-ion batteries
8 hours of operation as per Telcordia (Bellcore) GR-196
Power Supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 1.6 A max, output: 24 VDC, 90 W
Computer Intel ATOM processor
Operating System Windows
