Sewerin SeCorrPhone AC 200 Correlator & Acoustic Water Leak Detector Locator Kit

Product Description

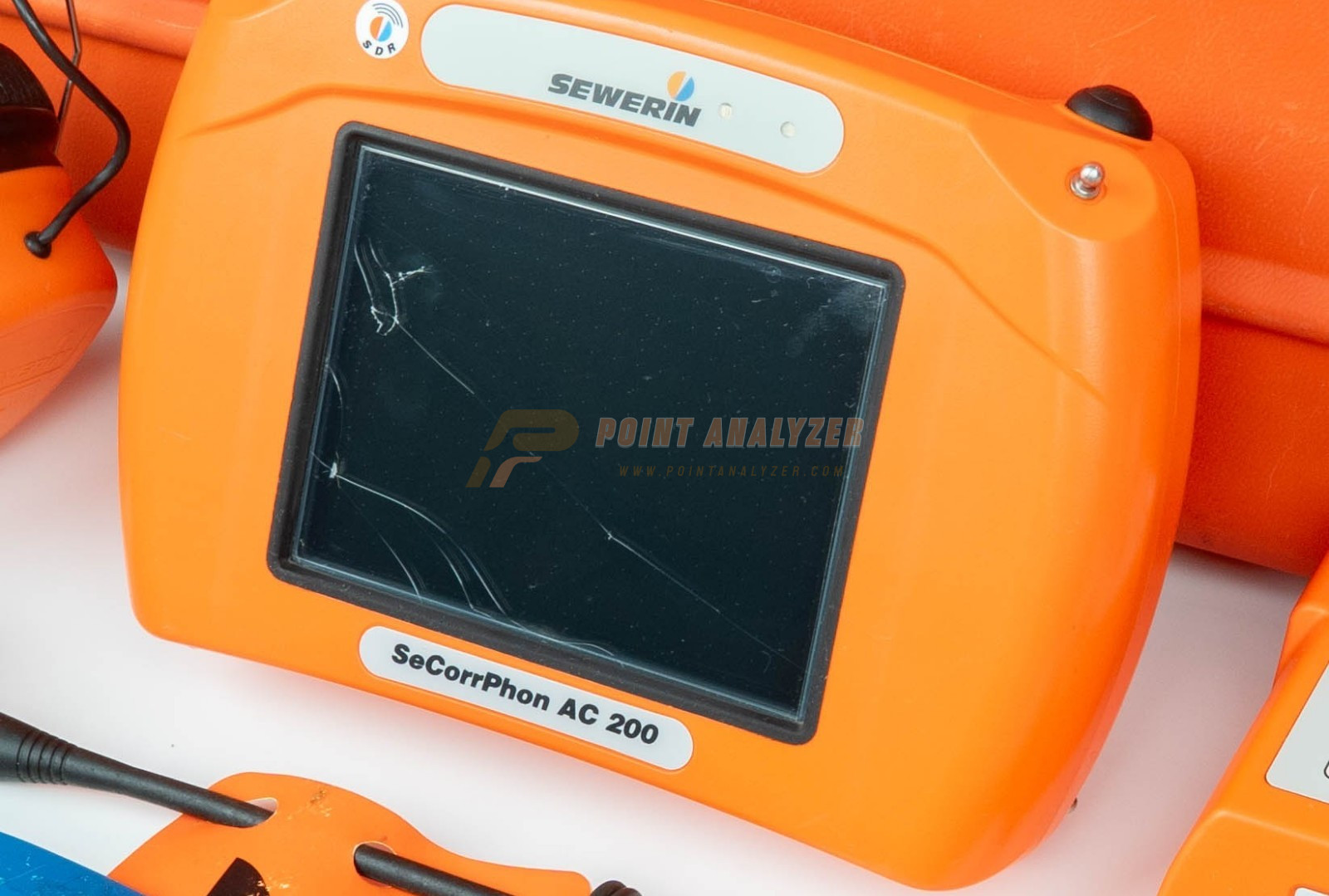

ProduSewerin SeCorrPhone AC 200 Correlator & Acoustic Water Leak Detector Locator Kit with all accessories seen in photographs. Uevice nit is used and in like new condition. Screen has some cracks but it does not affect functionality. Dis fully functional and works perfectly. Thoroughly tested to be in working order with a 60-Day warranty. For questions please contact us.

ct Features:
The Sewerin SeCorrPhon AC200 acoustic correlating system has all the features of both the AQUAPHON A200 and SeCorr C200, combining powerful correlation technology with an acoustic water leak detector tool. It is a multi-functional leak detection equipment offering three functions in one: pre-location, pinpointing and correlation. At the touch of a button the SeCorrPhon AC200 will apply tailored filters to the current noises.

It will also automatically select the appropriate frequency ranges. Alternatively, you can set manual filter limits according to your individual hearing. Or even select frequency ranges which make it easier to hear the leak noise. The user only has to enter pipeline data and start the measurement, and then the AC200 will perform all other steps. The device analyzes noises in the background and it applies optimal filter settings.

Highlights:
Optional GNSS (Global Navigation Satellite System) to store the current user position
A clever combination of prelocation, pinpointing, and correlation for an all-in-one device
Optimized filter settings to set upper and lower filter limits
Suppression of interfering peaks
Accurate measurement of sound velocity using a second source at known location
Automatic Data transfer with USB connection

Specifications
Category Parameter Specification
Device Elements Display 5.7″ TFT display, 640 x 480 pixels (VGA), LED backlight
Interface Micro USB
Memory 90 MB internal
Processor 32-bit RISC processor, digital signal processor
Operation Touch screen, ON/OFF key, two activation keys
Operating Conditions Operating Temperature -20 °C to +60 °C
Storage Temperature -25 °C to +50 °C (briefly up to +60 °C)
Humidity 15% to 90% r.h., non-condensing
Protection Rating IP65 / IP67
Non-permitted Environments Not for use in potentially explosive areas
Power Supply Power Source 2 x lithium-ion rechargeable batteries [1357-0002]
Operating Time (Typical) > 10 hours
Battery Capacity 2 x 24 Wh
Charging Time < 7.5 hours
Charging Temperature 0 °C to +40 °C
Charging Voltage 12 V
Charging Current 1.2 A
Charger Type AC/DC adapter L (charge in case)

Package Includes

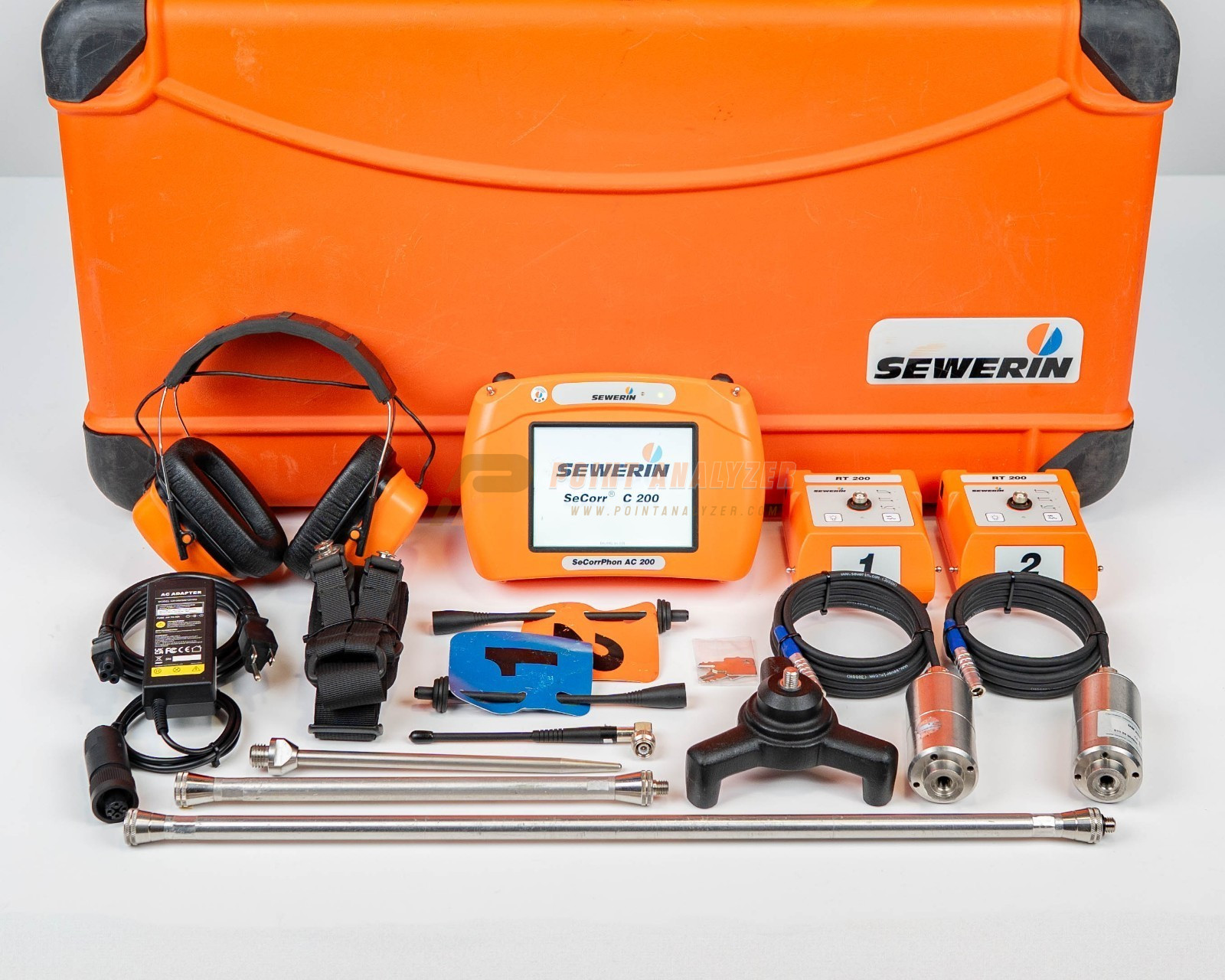

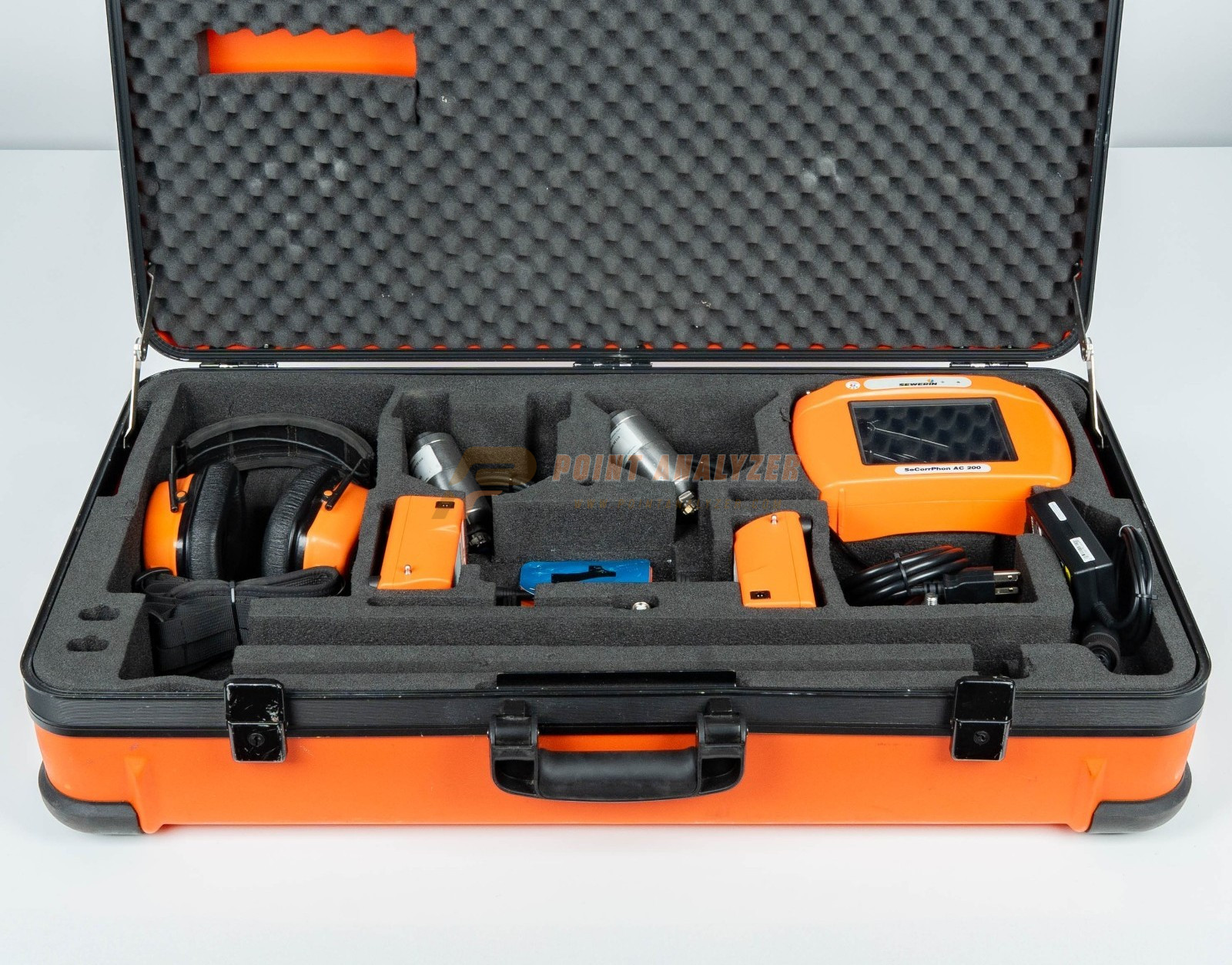

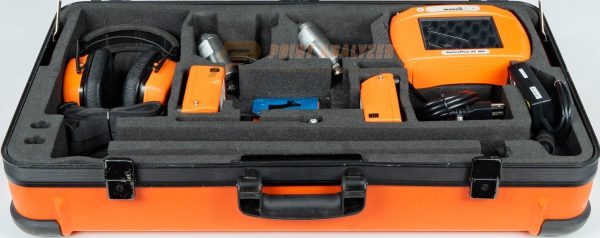

Sewerin SeCorrPhon AC 200 Unit Sewerin Hard Transport Case 2 x RT 200 Radio Transmitter 2 x UM 200 Microphone Tripod Case Keys Spike Rods Carrying Strap Power Supply Charger AC Power Cable Wireless Headphones
