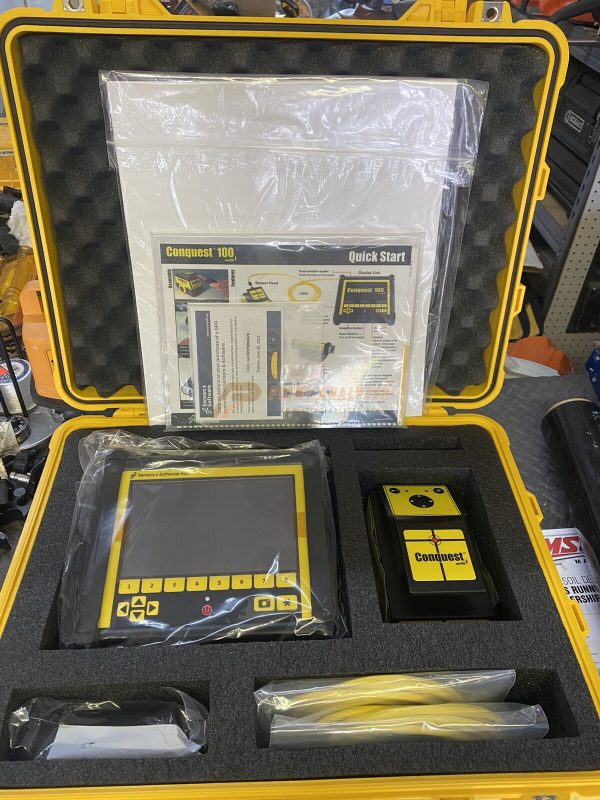

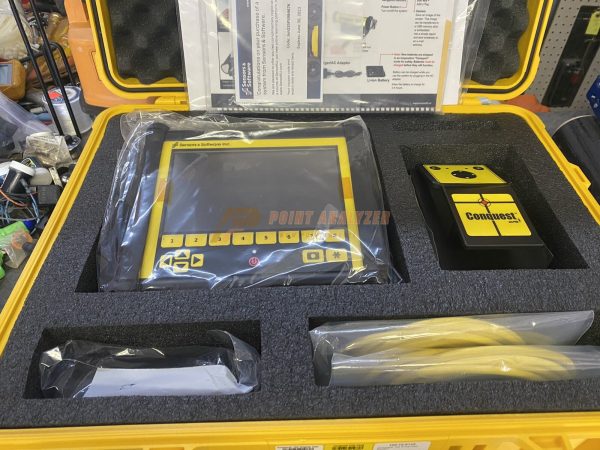

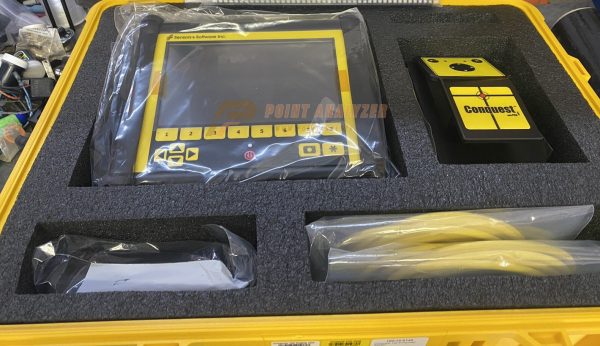

Up For Sale Sensors & Software Conquest 100 Concrete Scanner (Enhanced Version) GPR New condition and come with 1 year warranty, The Enhanced version supports advanced digital data export (GPZ files) and full integration with EKKO_Projectâ„¢ PC software for detailed post-production processing, 3D visualization, and professional reporting.
Hardware Specifications

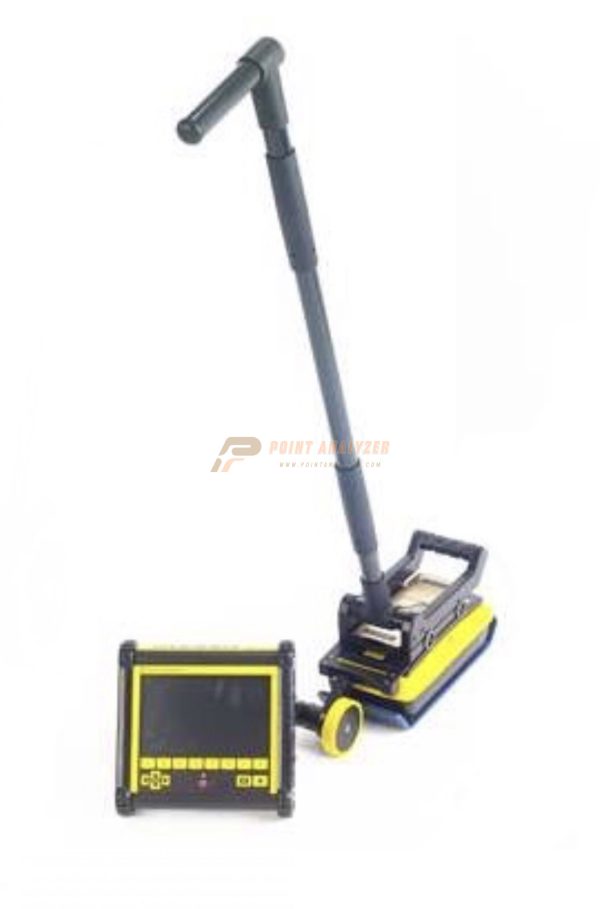

- Sensor Head: Lightweight structure optimized for walls, ceilings, columns, and tight spaces.
- Odometer: 2-wheel optical encoder with a resolution precision of ≤0.5 mm.
- Display Unit: High-visibility, rugged touchscreen built for job site environments (glove-friendly).
- Power Supply: Double swappable Lithium-Ion battery kit to completely eliminate charging downtime.
Core Capabilities
- Target Detection: Locates rebar, post-tension cables, and both metallic and non-metallic conduits.
- PCD Technology: Employs a built-in Power Cable Detector to identify and map live, current-carrying hazardous wires.
- Depth Penetration: Images subsurface components up to 36 inches (910 mm) deep using an ultra-wideband (UWB) 1 GHz GPR sensor.
- Void Detection: Maps empty pockets and voids underneath structural slab-on-grade floors.
