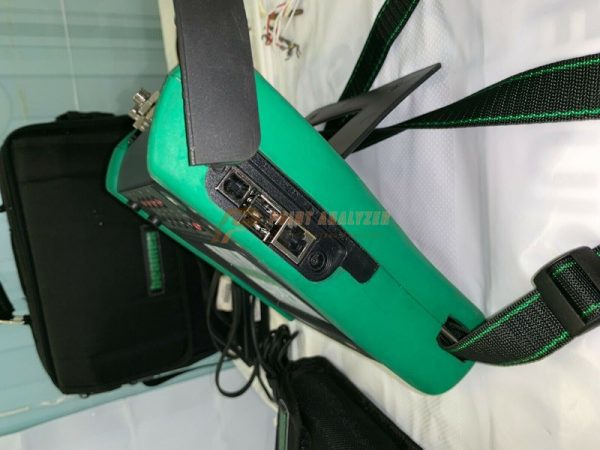

Beamex MC6 Advanced Field Calibrator HART Process Calibrator

On Sale Beamex MC6 Advanced Field Calibrator HART Process Calibrator Only US$3,499.00 good condition and ready to use.

The Beamex MC6 is a sophisticated, highly accurate communicator and field calibrator. It has the ability to calibrate a variety of electrical signals, including pressure and temperature. A complete fieldbus communicator for HART, FOUNDATION Fieldbus, and Profibus PA devices is also included in the MC6.

MC6 main features:

• Accuracy – High-accuracy, advanced field calibrator and communicator
• Usability – Combines advanced functionality with ease-of-use.
• Versatility – Versatile functionality beyond traditional calibration applications.
• Communicator – Full multi-bus communicator for HART, FOUNDATION Fieldbus and Profibus PA instruments
• Integration – Automates calibration procedures for paperless calibration management.

Beamex MC6 Specifications:

• Display: 5.7” Diagonal 640 x 480 TFT LCD module
• Touch panel: 5-wire resistive touch screen
• Keyboard: Membrane keyboard
• Backlight: LED backlight, adjustable brightness
• Battery type: Rechargeable lithium-ion polymer, 4200 mAh, 11.1V
• Charging time: Approximately 4 hours
• Charger supply: 100…240 VAC, 50–60 Hz
• Battery operation: 10…16 hours
• Operating temperature: -10…45 °C (14…113 °F)
• Operating temperature while charging batteries: 0…30 °C (32…86 °F)
• Storage temperature: -20…60 °C (-4…140 °F)
• Specifications valid: -10…45 °C, unless other mentioned
• Humidity: 0…80% R.H. non condensing
• Warmup time: Specifications valid after a 5 minute warmup period.
• Max. input voltage: 30 V AC, 60 V DC
• Display update rate: 3 readings/second

Package Includes:

• Accredited calibration certificate
• User guide
• Computer cable (USB)
• Battery charger / eliminator
• Internal LiPO battery pack
• Test leads and clips
• Appropriate pressure T-hose with internal low pressure modules
• CD-ROM with user manual, software tools and product information
• Soft carrying case
• Soft accessory case
• Hard carrying case
• 60-Day warranty
