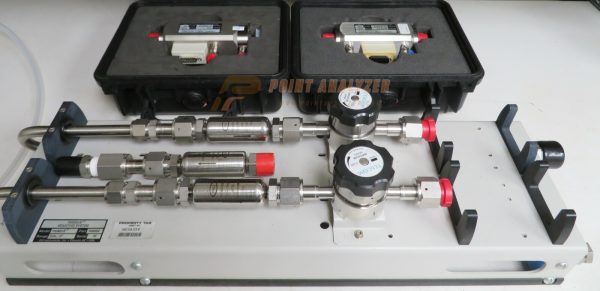

Fluke MolboxMolbloc Mass Flow Element 1E3-S1E5-VCR-V-Q w Molstic-S Dual OS12

On Sale Fluke MolboxMolbloc Mass Flow Element 1E3-S1E5-VCR-V-Q w Molstic-S Dual OS12 Good condition and ready to use Only US$12,700. a high-precision, premium gas flow calibration setup. It is widely used in laboratories to calibrate thermal mass flow controllers (MFCs), rotameters, and other flow meters.

Type : Laminar Flow
MPN : Does Not Apply
Brand : Fluke
Fluke Molbox/Molbloc Mass Flow Element 1E3-S , 1E5-VCR-V-Q w/ Molstic-S Dual OS12
Fluke Mass Flow Element 1E3-S, (LP) 200 SLM Air
Fluke Mass Flow Element 1E5-VCR-V-Q (DS) 100 SLM N2
Fluke Molstic-S Mounting System: Dual Range 1/2

• 1E3-S: A Fluke molbloc-L Laminar Flow Element with a low pressure (LP) calibration profile. It supports up to 200 SLM (Standard Liters per Minute) of Air.
• 1E5-VCR-V-Q: A high-capacity, low differential pressure Fluke 1E5 molbloc Element optimized for a downstream (DS) calibration profile. It supports up to 100 SLM of Nitrogen (N₂).
• VCR: Indicates the hardware relies on ultra-clean, high-purity VCR metal gasket face seal fittings. The 1E5 uses larger 0.375-inch VCR male end fittings to reduce flow restriction.
• V-Q: Specifies the use of Viton (V) internal seals/O-rings combined with a high-accuracy Quartz (Q) reference calibration path.

• Extreme Accuracy: Delivers a measurement uncertainty down to ± 0.125% of reading when paired with a modern Fluke molbox1+ Flow Terminal.
• No Moving Parts: Uses a stable, mechanical laminar flow path (the minute annular gap between a piston and a cylinder bore) to guarantee long-term calibration stability.
• Integrated Diagnostics: Features built-in real-time gas temperature conditioning and multi-point temperature measurement directly inside the element body.
• Software Automation: Fully compatible with COMPASS for Flow software, enabling step-by-step automated calibration sequences for connected devices under test.
