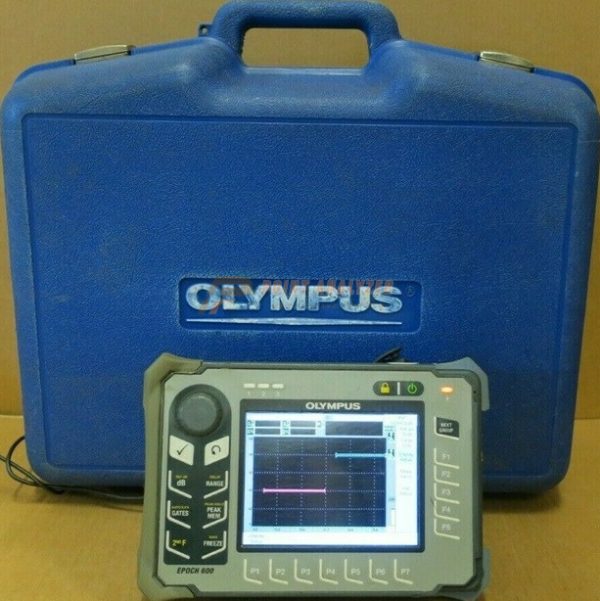

Olympus Epoch 600 Ultrasonic Flaw Detector

Olympus Epoch 600 Ultrasonic Flaw Detector

The EPOCH 600 is a handheld, mid-range ultrasonic defect detector. Its horizontal case, weighing just 1.68 kg (3.72 lb), is designed to endure the rigors of extremely severe situations. Additional features of EN12668-1 include digital filtering for improved signal-to-noise ratio and a 400 V PerfectSquare adjustable square wave pulser.

Key Features:

• Designed to meet the requirements of EN12668-1
• PerfectSquare tunable square wave pulser
• Digital high dynamic range receiver
• Eight digital filters for enhanced signal-to-noise ratio
• 2 kHz PRF for rapid scanning
• Knob or navigation pad adjustment configurations
• Large, full VGA sunlight readable display
• Long battery life, supporting lithium-ion or alkaline batteries
• Standard dynamic DAC/TVG and onboard DGS/AVG
• 2 GB MicroSD memory card for data transfers and storage
• USB On-The-Go (OTG) for PC communication
• Alarm and VGA outputs
• Optional analog output
• Economy with Quality

The EPOCH 600 comes standards with powerful flaw detection capabilities, such as:

• PerfectSquare tunable square wave pulser
• Digital high dynamic range receiver
• Eight 100% digital filter sets
• Auto or manually adjustable PRF from 10 Hz to 2000 Hz
• Pulser voltage from 100 V to 400 V
• Amplitude resolution to +/- 0.25%
• Five customizable digital measurements
• Options for Comfortable Navigation

Technical Specifications

Instrument Inputs/Outputs:

• USB ports: USB On-The-Go (OTG)
• RS-232 port: Yes
• Video output: VGA output standard
• Analog output: 1 analog output (optional), Selectable 1 V/10 V Full Scale, 4 mA max
• Digital output: 3 alarm outputs, 5V TTL, 10 mA

Package Includes:

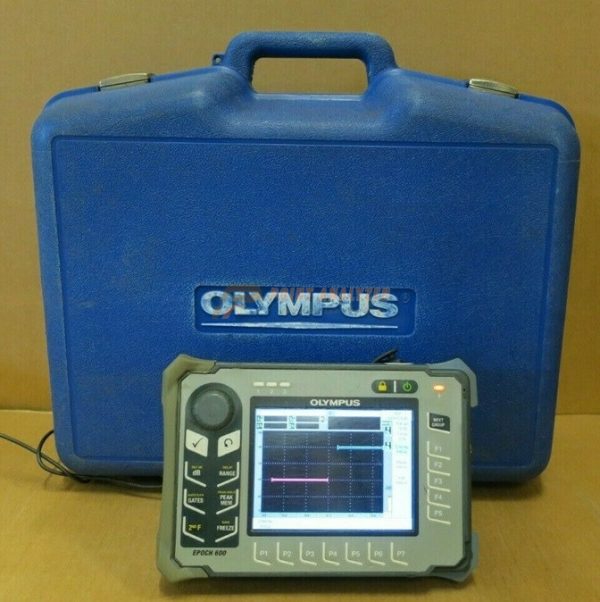

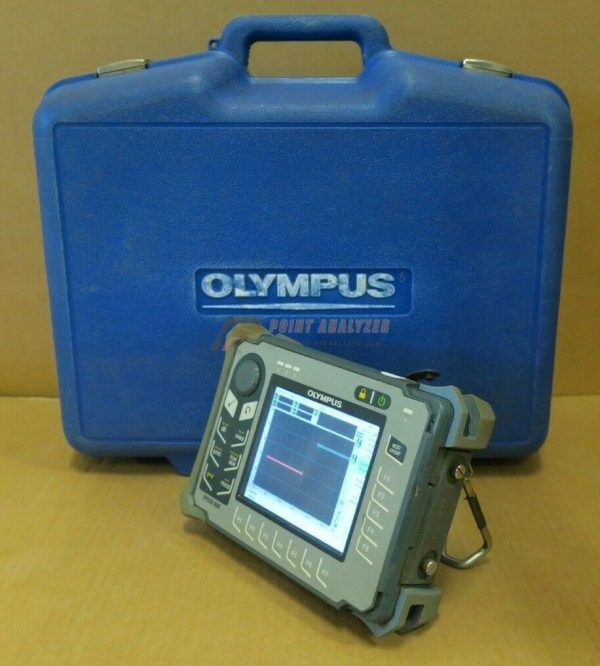

• Olympus Epoch 600 Ultrasonic Flaw Detector
• Power Supply
• Hard Protective Case
• 1 Lithium Ion Battery
• 60-Day warranty
