Olympus Epoch 1000i Ultrasonic Flaw Detector

Olympus Epoch 1000i Ultrasonic Flaw Detector

The EPOCH 1000 series digital ultrasonic flaw detectors combine the power of phased array imaging with the best performance available for traditional portable flaw detection. The horizontal case design of the EPOCH 1000, 1000iR, and 1000i has a full VGA display, knobs and navigation arrows for adjusting parameters, and complete conformity with EN12668-1.

Features:

• Adjustable pulse repetition frequency (PRF): 5 Hz to 6 kHz
• Single-shot measurements in all standard modes
• Tunable square wave pulser with PerfectSquare technology
• Programmable analog and alarm outputs
• Over 30 digital filter sets
• Digital high dynamic range receiver

Olympus Epoch 1000i Specifications:

General Specifications:

• Overall dimensions (W x H x D): 252 mm × 177 mm × 107 mm (9.92 in. × 6.97 in. × 4.2 in.)
• Weight: 3.67 kg (8.1 lb), including lithium-ion battery
• Keypad: English, International, Japanese, Chinese
• Languages: English, Spanish, French, German, Japanese, Chinese, Russian, Italian, Polish
• Transducer connections: BNC or Number 1 LEMO
• Data storage: Onboard up to 10,000 IDs with waveform, standard 4 GB compact flash card (removable)
• Battery type: Single lithium-ion rechargeable standard
• Battery life: 8 hours (conventional UT mode); 7 hours (phased array mode)
• Power requirements: AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz
• Standby mode: Adjustable from 15 minutes to 120 minutes with 50% less battery consumption
• Display type: Full VGA (640 × 480 pixels) Transflective Color LCD, 60 Hz update rate
• Display dimensions (W x H, Diag.): 132.5 mm × 99.4 mm, 165.1 mm (5.2 in. × 3.9 in., 6.5 in.)

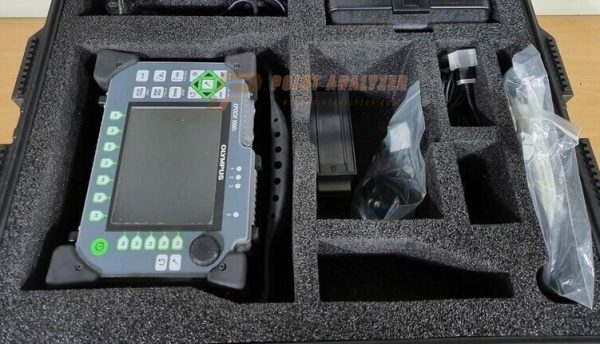

Package Includes:

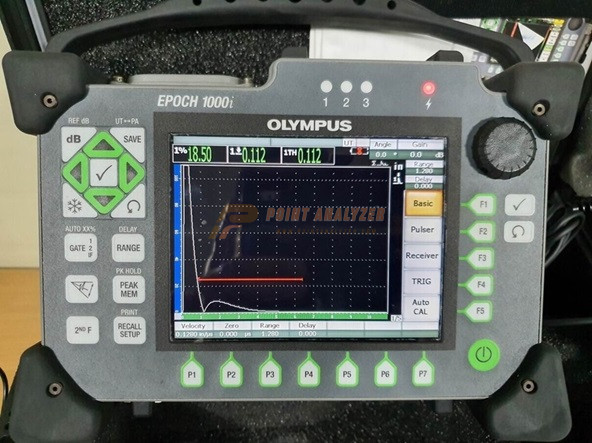

• Olympus Epoch 1000i
• Installed Options: 16:64 Phased Array

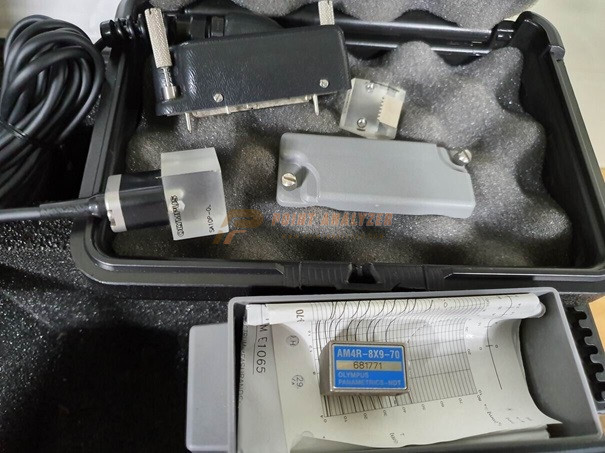

• Olympus Probe MB4FE 57905/4961/4MHz
• RS232 Power Cable
• BNC Cable
• AC Adapter/Charger
• Power Cord
• USB PC Interface Cable
• Hard Copy User Manual
• Hard Carrying Case
• 60-Day warranty
