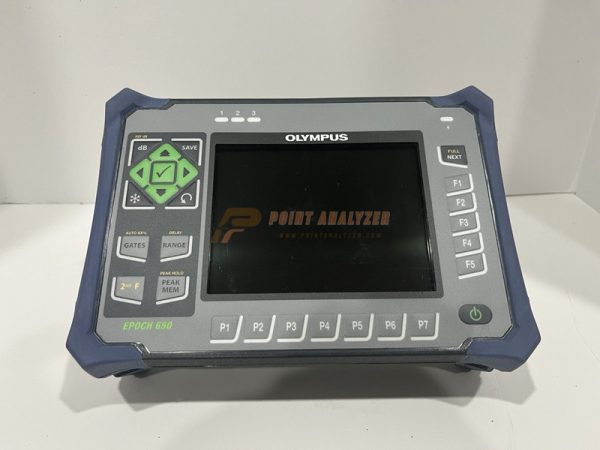

Olympus Epoch 650 Ultrasonic Flaw Detector

Olympus Epoch 650 Ultrasonic Flaw Detector

The EPOCH 650 Digital Ultrasonic Flaw Detector combines the effectiveness of a very portable, user-friendly device with Olympus‘ industry-leading conventional flaw detection capabilities. You can benefit from the best fault detection platform with remarkable ease of use thanks to the EPOCH 650 flaw detector’s combination of effective menus and direct access buttons.

Features:

• Handheld Design: Lightweight and portable for easy use in the field.
• Extended Battery Life: Up to 15 hours of uninterrupted operation for long work sessions.
• High-Resolution Display: Vibrant VGA color LCD for clear and precise readings in any lighting condition.
• Ample Data Storage: Comes with a 2GB microSD card for storing up to 100,000 inspection IDs.
• Durable Construction: Built to withstand tough environments with rugged, reliable design.
• Intuitive Operation: User-friendly interface with automated calibration for quick setup and use.

Olympus Epoch 650 Technical Specifications:

• PRF: 10 Hz to 2000 Hz in 10 Hz increments
• Pulse Width: Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare technology
• Gain: 0 to 110 dB
• Receiver Bandwidth: 0.2 MHz to 26.5 MHz at –3 dB
• System Linearity: Horizontal: ± 0.5% FSW
• Resolution: 0.25% FSH, amplifier accuracy ± 1dB
• Reject: 0 to 80% FSH with Visual Warning
• Zero Offset: 0 to 750 µs
• Refracted Angle: 0° to 90° in 0.1° increments
• DAC/TCG: Standard
• DAC points: Up to 50 points, 110 dB dynamic range
• Special DAC modes: Custom DAC (up to 6 curves), 20-80% View

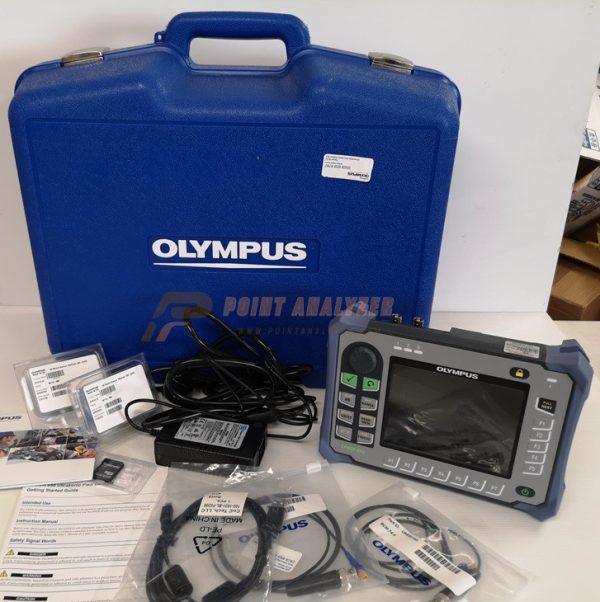

Package Includes:

• Detector unit
• Charging cable
• Mini USB cable
• User manual CD
• Getting started guide
• 2x sensor cable units
• Accessory part M110-RM
• Accessory part M112-RM.
• Blue plastic carry case.
• Users Manual
• 60-Day warranty
