Olympus Epoch LTC Ultrasonic Flaw Detector

on Sale OLYMPUS PANAMETRICS EPOCH LTC HANDHELD ULTRASONIC FLAW DETECTOR CS GATE2 DGS AVG Only US$3,199.00

The OlYMPUS EPOCH LTC is a mid-level, handheld ultrasonic flaw detector in a compact 2.12 lbs (0.96 kg) vertical case. It is a full-featured instrument with EN12668-1 compliance and a wide variety of standard features as well as specialized options to meet your inspection needs.

The EPOCH LTC Digital Ultrasonic Flaw Detector offers state-of-the-art technology in a package that is compact and lightweight 2.12 lbs (0.96 kg). Based on the design of the class-leading EPOCH XT, the EPOCH LTC is a full-featured instrument with EN12668-1 compliance and a wide variety of standard features as well as specialized options to meet your inspection needs.

Features:

• IP67-sealed to assure field ruggedness
• EN12668-1 compliant
• Only 2.12 lbs (0.96 kg)
• Full color VGA display with transflective technology
• USB On-the-Go Port for PC
• Communication and direct printing
• Mini SD card storage and onboard storage with standard alphanumeric datalogger
• Standard Dynamic DAC/TVG
• Standard onboard DGS/AVG
• Digital High Dynamic Range Receiver with digital filters

Grid Display Modes:

• Standard 1-10
• Soundpath
• Leg mode for angle beam inspection
• Selectable 100% or 110% vertical display

Wide operating temperature range:

• Lithium Ion: -10° to 50°C (14° to 122°F)
• Battery storage temperature 0° to 50° C (32° to 122° F)
• Recharge temperature: 0° to 40° C (32° to 104° F)

Advanced Software Features and Data Management

Standard Dynamic DAC/TVG: Calculates signal amplitude as a percentage or dB level compared to a DAC curve or a reference echo amplitude fixed with Time Varied Gain. DAC versions include ASME, ASME 3, JIS, and Custom. Contains several key features including: dynamically adjustable?DAC curves, switchable DAC & TVG views, and custom DAC warning curves.

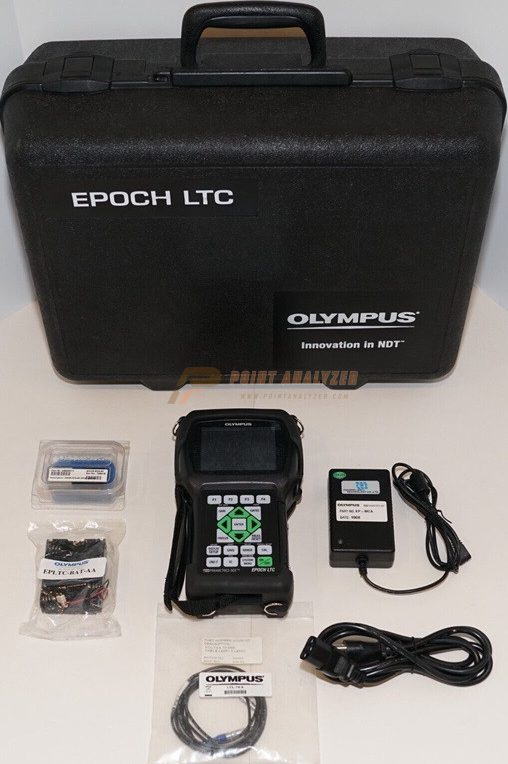

Package Includes:

• AC Adapter/Charger
• Power Cord
• SUB PC Interface Cable
• External Smart Battery Charger
• Chest Harness
• Rubber Protective Case with Pipestand
• Clear Display Protectors
• Instrument I/O Ports
• User Manual On CD-ROM
• Carrying Case
• 60-Day warranty
