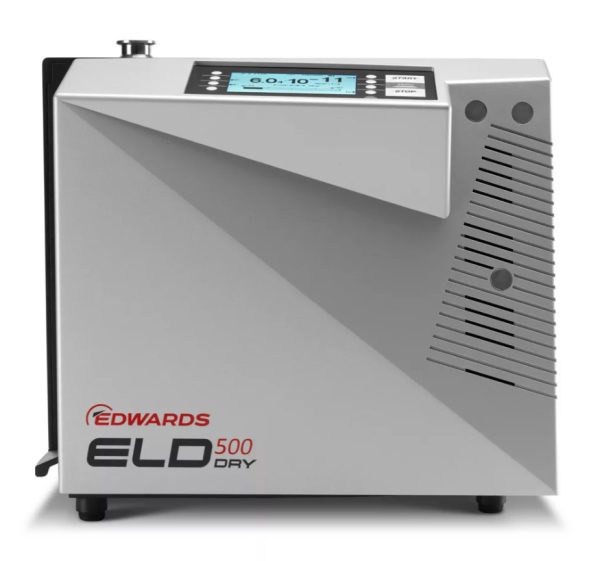

Edwards ELD500 Helium Leak Detector w 1.8m³h Dry Diaphragm Pump

Product Description

Edwards ELD500 Helium Leak Detector w/ 1.8m³/h Dry Diaphragm Pump

Bullet Points
1. High-Performance Mobile Leak Detection
Combines the ELD500 analyzer with an nXDS15i (15.1 m³/h) dry scroll backing pump for oil-free, high-speed evacuation.
Ultra-sensitive detection:
Vacuum mode: Minimum detectable leak rate of 5×10⁻¹² mbar·l/s (ideal for precise quantitative measurement).
Sniffer mode: Sensitivity of 7×10⁻⁹ mbar·l/s (perfect for locating leaks).
2. Dual-Mode Operation for Maximum Flexibility
Switch effortlessly between vacuum mode (quantitative leak testing) and sniffer mode (pinpointing leaks) at the push of a button.
3. Advanced Dry Pumping Technology
nXDS15i scroll pump ensures oil-free, clean, and maintenance-friendly operation—ideal for labs, cleanrooms, and industrial environments.
4. Ready-to-Use Calibration & Certification
Includes an internal TL7 calibrated leak with a certificate of calibration for immediate, traceable accuracy.
5. User-Friendly & Versatile
Compact, mobile design suitable for facilities, labs, or classrooms.
Standard DN KF25 inlet flange ensures easy integration with existing vacuum systems.
6. Smart Control & Customization
Most advanced Edwards design yet, featuring intuitive controls and customizable settings for any application.
7. Reliable for Critical Applications
Trusted for high-precision leak detection in semiconductor, aerospace, HVAC, and R&D industries.
commitment to our customers
Global Logistics: Professional wooden box package.
Technical Assistance: A professional technical team with years of practical experience can provide you with professional technical guidance.
FEATURES AT A GLANCE
* Contains a turbo primary pump and an internal 8.9 CFM (15.1 m3/h) nXDS15i dry scroll roughing pump
* Quick Start up (< 2 minutes)
* Helium Pumping Speed 3.1 l/s
* Extremely fast response
* DN KF25 Inlet Flange
* Different reporting options – based on particular application needs
* Auto Calibration
* High Sensitivity
* Flexible application areas
* Maximum mobility with (optional) wireless or wired remote control ELD 500RC
* Modular design makes this unit very service friendly
* Most robust and reliable ion source (extended warranty time)
