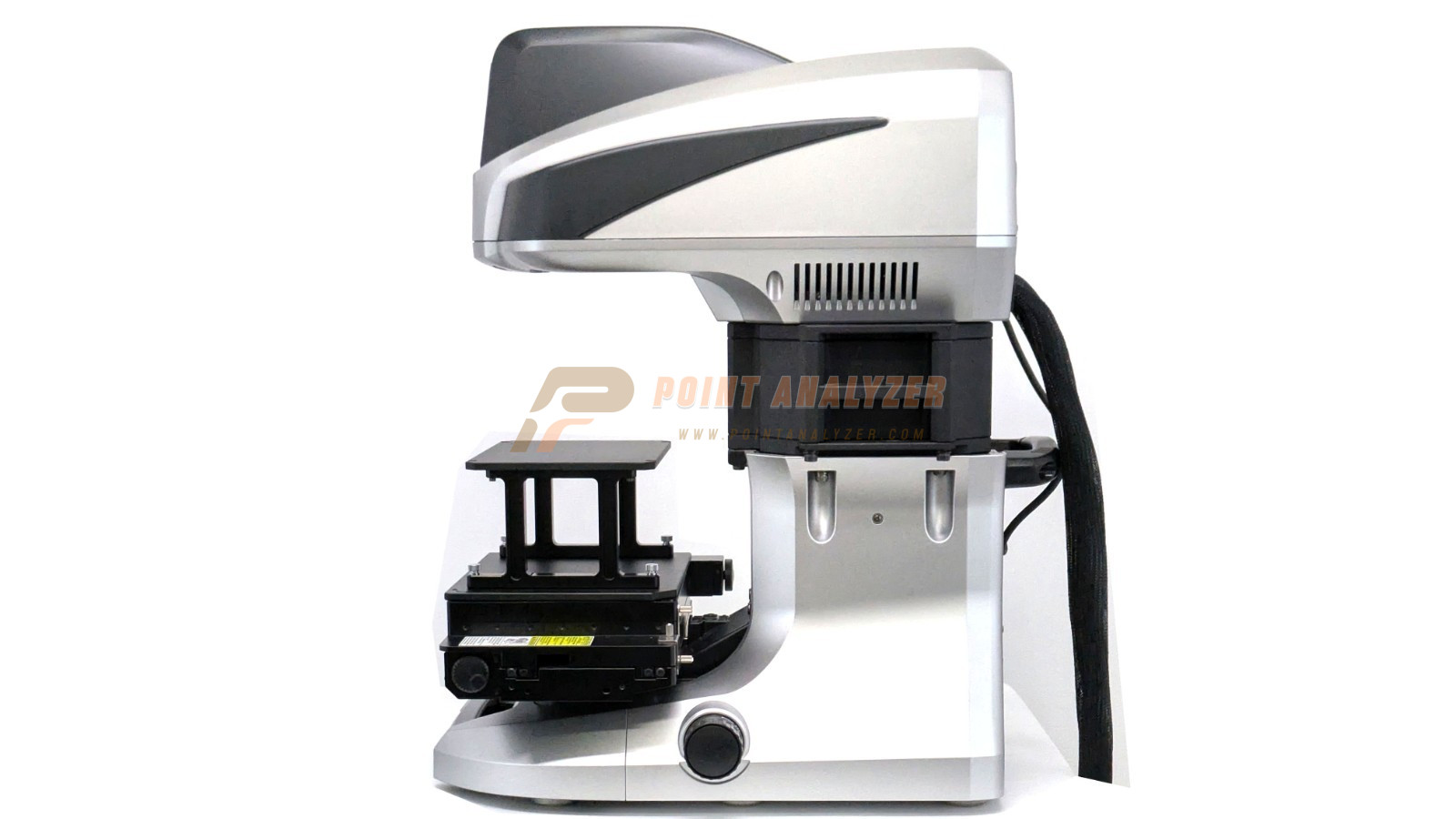

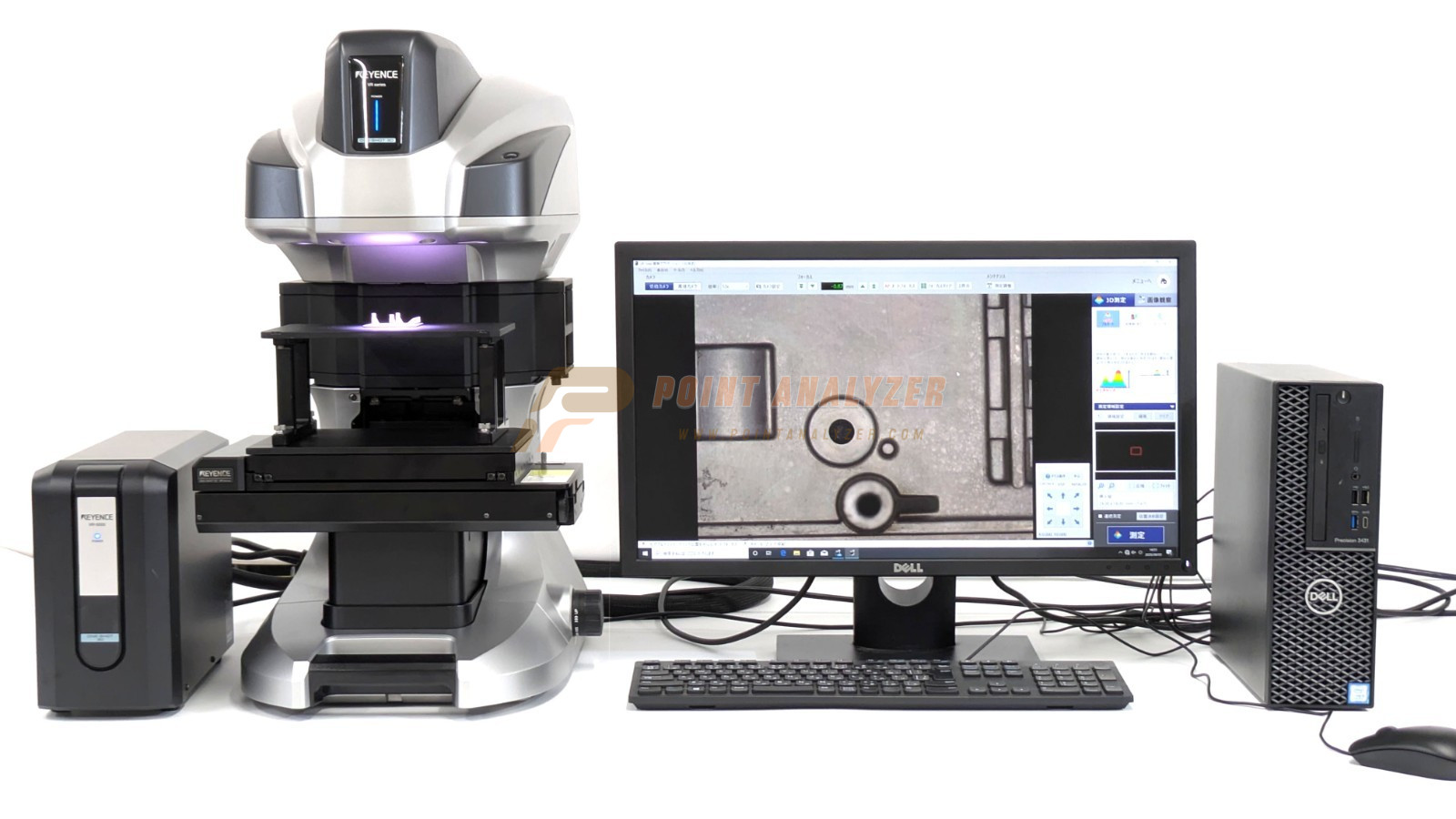

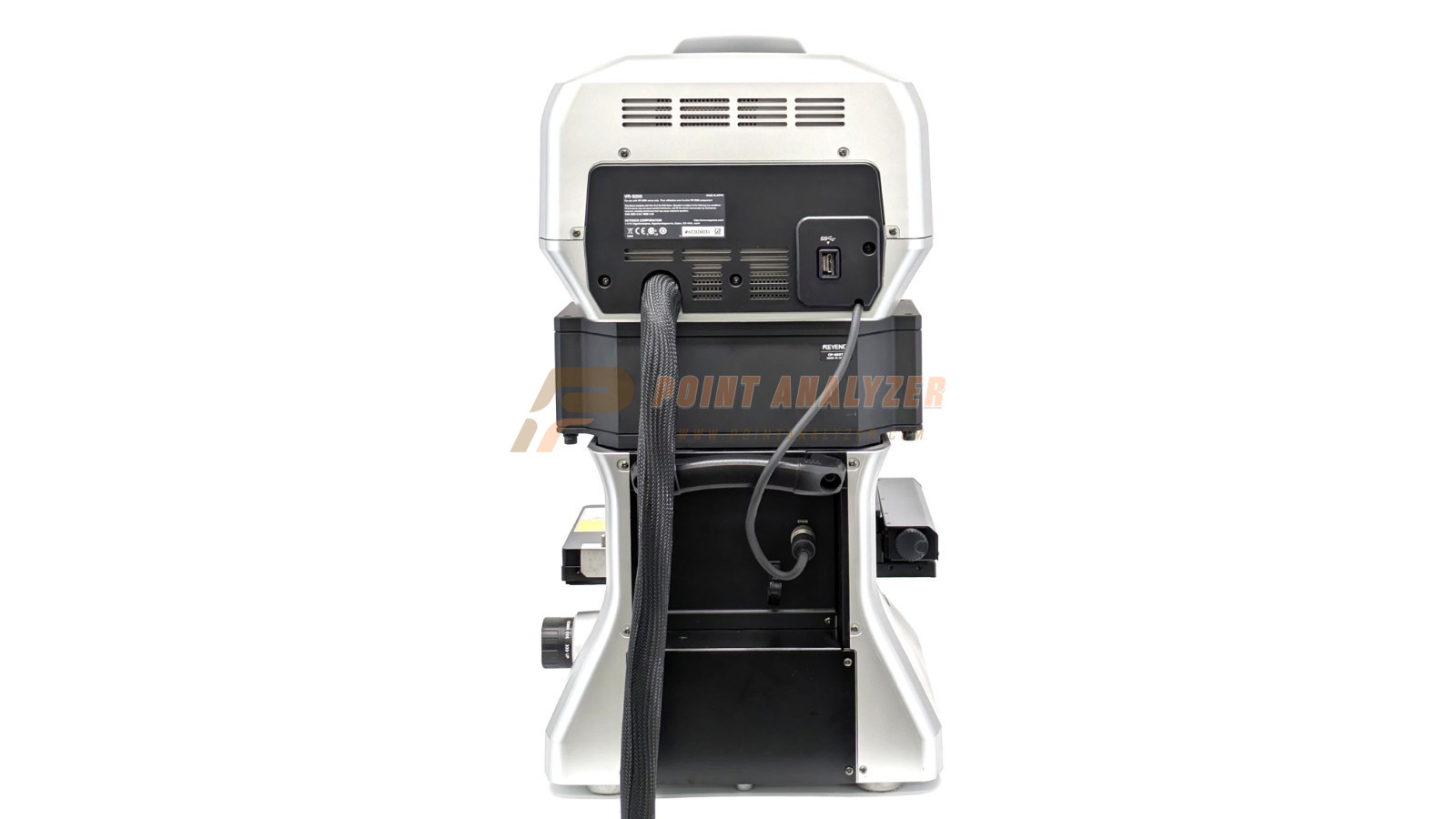

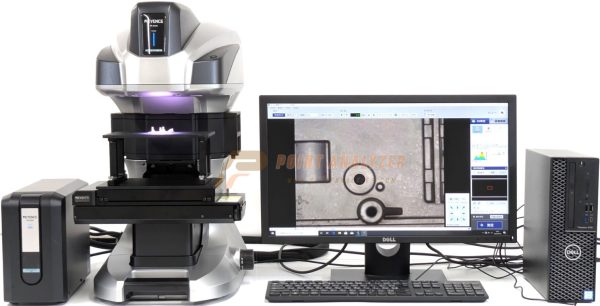

VR-5000VR-5200[Calibrated] 3D shape measuring machine KEYENCE

Up For Sale VR-5000VR-5200[Calibrated] 3D shape measuring machine KEYENCE Only US$14,500. with a High-Precision Non-Contact Wide Area 3D Measurement System Capable of Capturing Complete Surface Topography, Profile, Roughness, and Flatness in Just One Second

• Measurement Resolution: Height resolution down to 0.1 μm.
• Z-Axis Height Range: Up to 10 mm natively, expanding up to 50 mm using automated image stitching.

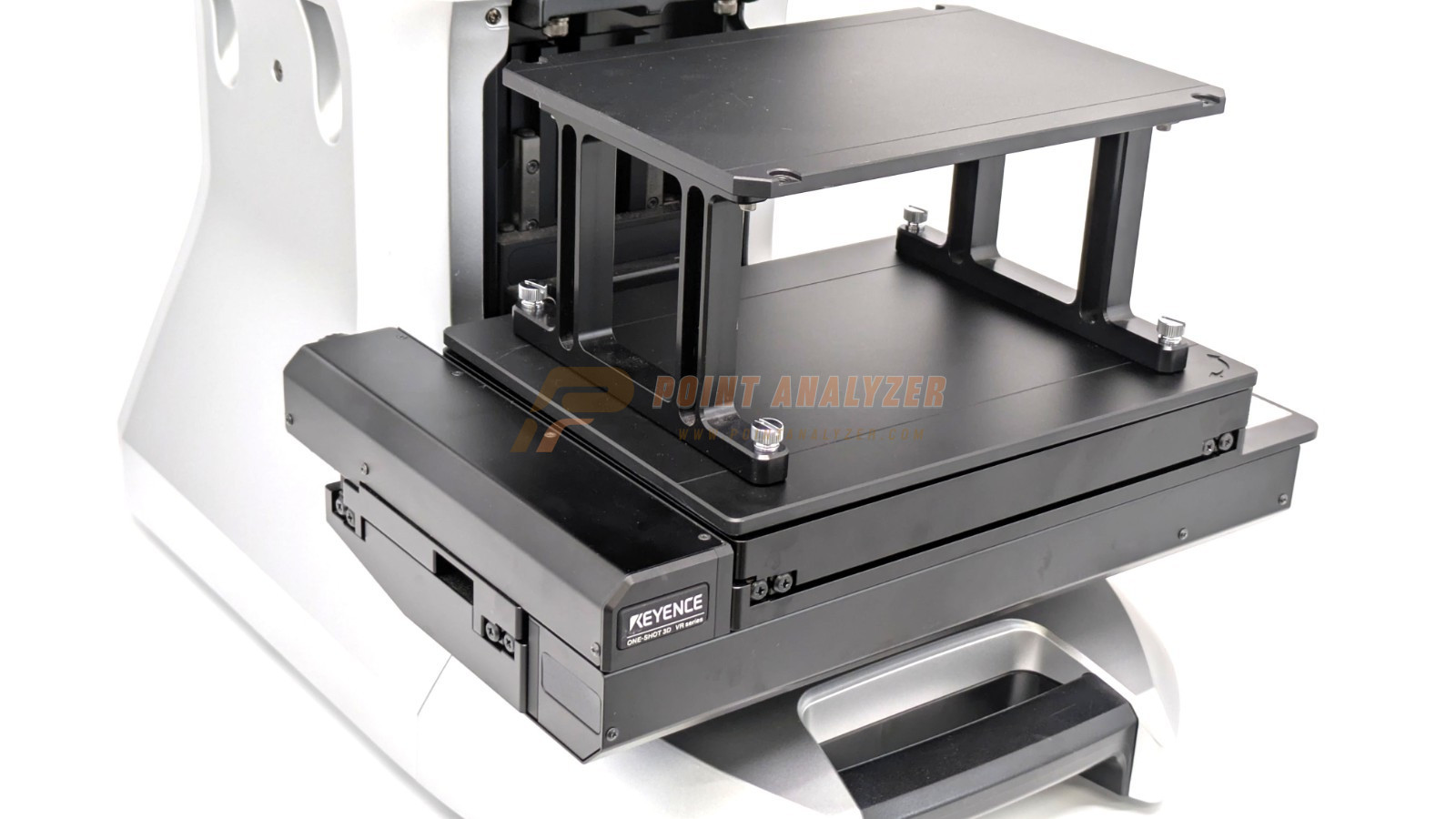

• XY Travel Stage Range: Natively covers areas up to 100 mm x 200 mm, with physical travel specs around 184 mm x 88 mm depending on the exact stage configuration.
• Repeatability: Impeccable accuracy down to ±0.4 μm for localized height measurements and ±2.5 μm for width measurements without stitching.

• Place-and-Measure Operation: Eliminates operator error entirely; the system automatically detects the target size and adjusts focus, allowing users to place a sample and click a button for instant reporting.
• 3D CAD Comparison: Allows users to overlay the captured 3D scan data directly onto a digital CAD reference file to instantly visualize deviations, warping, or manufacturing defects.
• All-in-One Profilometry: Consolidates the roles of multiple conventional tools—such as optical CMMs, roughness testers, and profile gauges—into a single benchtop setup

Brand : KEYENCE
Microscope Structure : Upright
Accessories : Standard accessories attached, Calibration test report
Microscope Type : Digital Microscope
Model : VR-5000 / VR-5200
Viewer : Monitor/Display
MPN : VR-5000(6C020048)/VR-5200(6C020031)
Option : OP-88275(calibration gauge), OP-88274(100mm height spacer)
Country/Region of Manufacture : Japan
