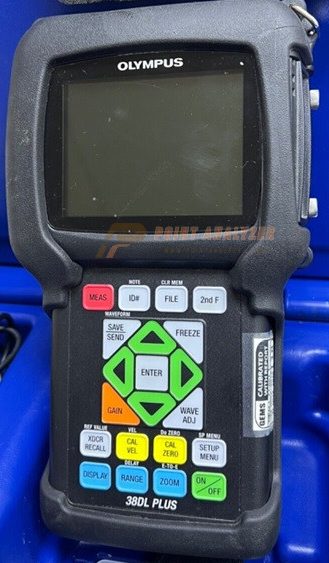

Olympus Panametrics 38DL Plus Ultrasonic Thickness Gage Gauge

The 38DL PLUS by Olympus is a hand-held ultrasonic thickness gage designed for a wide variety of thickness measurement applications. With the 38DL PLUS, you only need access to one side of a part to measure, in a nondestructive manner, the thickness of corroded, pitted, scaled, granular, and other difficult materials.

Advanced Measurement Features:

• THRU-COAT measurement
• Temperature-compensated measurement
• Min/Average mode
• EMAT transducer capability
• Measurement-related status flags and alarms
• Full VGA color transflective LED back-lite display
• Automatic probe recognition for the standard D79X and MTD705 series transducers
• Dynamic default gain optimization
• V-path calibration to build custom V-path correction tables for any dual element transducer
• Warning against calibration doubling
• Calibration for unknown material sound velocity and/or transducer zero
• Echo-to-echo measurements
• Fast scan mode with 30 readings per second
• Manual gain adjustment in 1-dB steps
• Hold or blank thickness display during loss-of-signal (LOS) conditions
• Hold minimum, maximum, or both minimum and maximum functions
• Differential thickness display relative to the set point in absolute or percentage ratio

Olympus Panametrics 38DL Specifications:

General

• Operating temperature range: –10 °C to 50 °C (14 °F to 122 °F)
• Keypad: Sealed, color-coded keypad with tactile and audible feedback
• Case: Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP67.
• Dimensions (W x H x D): Overall: 125 mm x 211 mm x 46 mm (4.92 in. x 8.31 in. x 1.82 in.)
• Weight: 0.814 kg (1.80 lb)
• Power supply: AC/DC adaptor, 24 V; lithium-ion battery 23.760 Wh; or 4 AA auxiliary batteries
• Battery life, lithium-ion: Operating time: minimum 12.6 h, 14 h typical, 14.7 h maximum Fast charge: 2 h to 3 h
• Standards: Designed for EN15317

Package Includes:

• Hard Transport Case
• Lithium Ion Battery
• Spare AA Battery Pack
• Charger and AC Cable
• Olympus D790-SM Probe
• Thickness Standard
• Ultrasonic Couplant
• User Manual
• USB Cable
• 90-Day warranty
