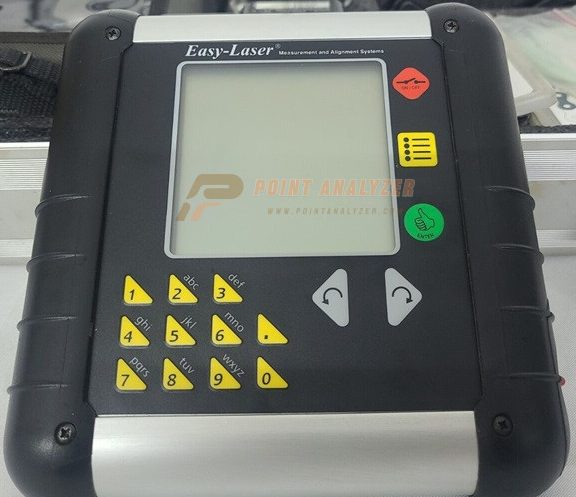

Easy Laser D450 Laser Shaft Alignment Kit

Product Description

Easy Laser D450 Laser Shaft Alignment Kit D279

Easy-Laser D450 is a basic system, with the performance and potential for expansion of our more advanced ones, for example D505 and D525. In fact, with the right accessories your D450 system can be converted into any other Easy-Laser system!

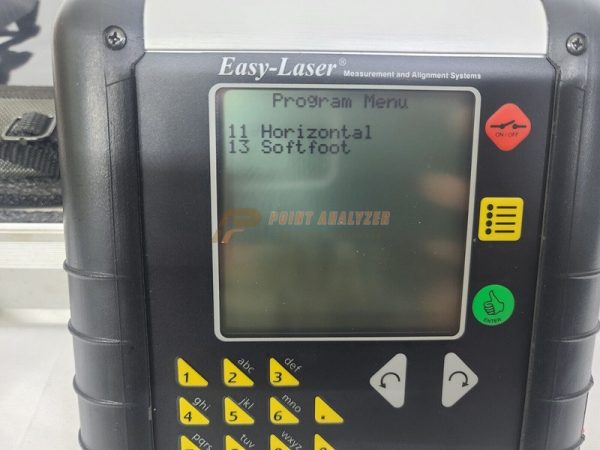

System D450 includes two measurement programs: Horizontal shaft alignment and Softfoot*. The displayed measurement resolution can be set as low as 0.05 mils/thou [0.001 mm]. When the measurement is complete you can produce a printout, save in the display unit or transfer the data to your PC.

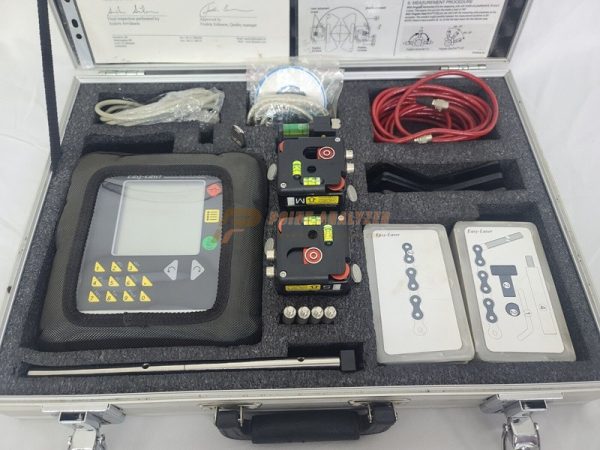

SYSTEM D450

• 1 Display unit D279 (with 2 measurement programs)
• 1 Protective case
• 2 Cables with Push/Pull connectors
• 2 Measuring units (S, M)
• 2 Sets of rods for measuring units ( 4×2.36”, 4×9.44”[4x60mm, 4x240mm] )
• 2 Shaft brackets with chains
• 2 Extension chains
• 1 Measuring tape
• 1 Manual
• 1 EasyLink Windows program + PC cable

TECHNICAL SPECIFICATIONS

System:

• Programs Horizontal shaft alignment, Softfoot
• Measurement distance Up to 33 feet [10 m]
• Temperature range 32–122°F [0–50°C]
• Relative humidity 10–95%
• Max. displayed error +1% +1 digit
• Weight (complete system) 11 lbs [5 kg]
• Carrying case WxHxD: 16”x12”x4” [420x320x110 mm]

Measuring units (S, M):

• Housing material Anodized aluminium
• Type of laser Diode laser
• Laser wavelength 635–670 nm, visible red light
• Laser safety class Class 2
• Laser output power < 1 mW
• Resolution 0.05 mils [0.001 mm]
• Type of detectors PSD 0.39” sq [10x10mm]
• Spirit vials Resolution 0.5°
• Protection No influence from ambient light
• Dimensions WxHxD: 2.36”x2.36”x1.97” [60x60x50 mm]
• Weight 7 oz [198 g]

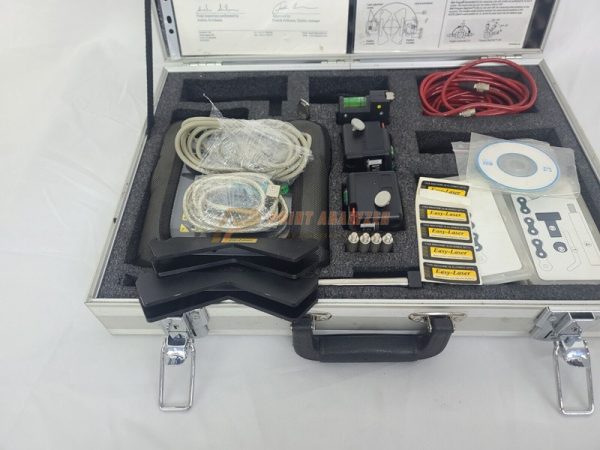

Package Includes:

• Sliding brackets
• Magnetic brackets
• Magnetic base
• Thin chain brackets
• Offset bracket
• Hard Case
• Extension cable
• 60-Day warranty
